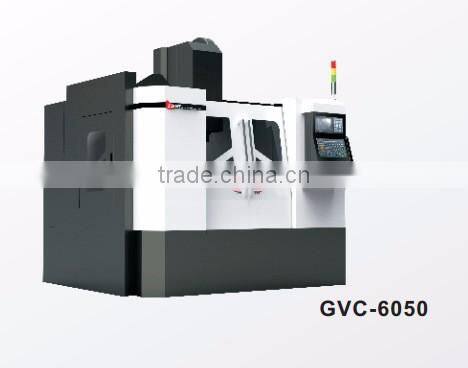

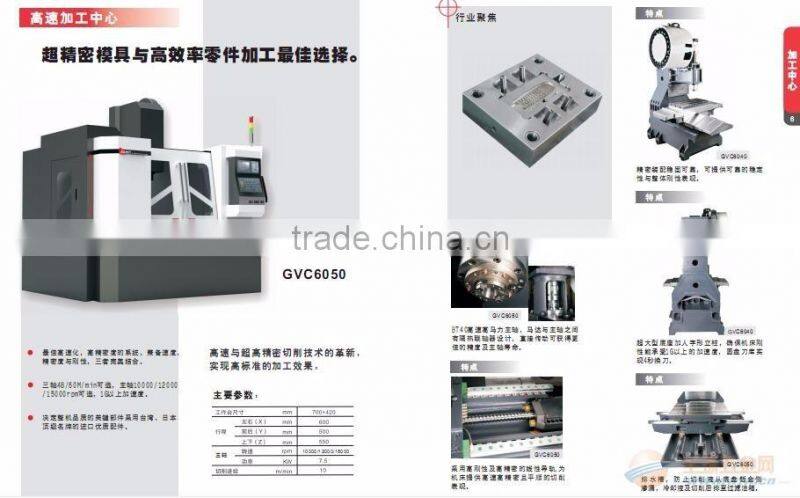

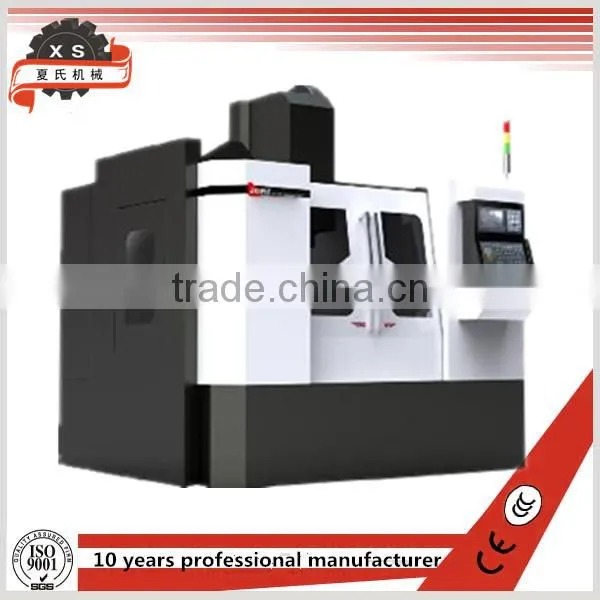

CNC Vertical Machine Center GVC-6050
Features:
1. Mehanite casting,computer analysis facilities are used in its manufacturing,
wide distance slide way makes outstanding rigidity.
2.Pre-pressed and pre-tense double screw assures feeding high accuracy.
Special design of slide way and auto lubrication system ensures the accuracy
long-time of the machine.
3.Precisely scrapped and Turcite B coated slide way makes machines run smoothly.
4.X,Y axis are assembled with linear way, Linear device is closely fixed on the cast
Who has the features of small touch area,small friction;hence each machine embodies
Quickly response,good dynamic performance,fast feed rate,and high positioning accuracy.
Specification
Model | GVC-6050 |
Table size | 700-420mm |
Table travel | 600*500*550mm |
Distance between spindle and table | 120*670mm |
Form of tool magazine | arm type tool magazine |
Spindle rotation speed | 10000/12000/15000rpm |
Spindle taper | BT40 |
Spindle motor | 7.5/11kw |
Rapid feed | 48*48*32/48m/min |
Cutting feed | 10m/min |
Positioning accuracy | 0.005mm/m |
Min Enactment move unit | 0.001mm |
Dimension(L*W*H) | 1900*2400*2500mm |
Net weight | 3400kgs |
Max.Loaded of table | 300kgs |
Accessories:
1.Standard accessoires:
Control system
Electronic hand wheel
Cover
Auto lubrication of slide way
Coolant system
Operation manual of machine
Operation manual of control system
Cutting fluid and filter system
Stainless steel covers of slide way
Alarming light
Hammer balance
Tool and toolbox
2.Optional accessories:
Milling chuck and tool unlock
Arm type or umbrella type tool magazine
Auto chip conveyor
Oil coolant
The fourth axis NC dividing head or rotary table
Heat exchanger
We will pack the machine with standard export wooden case ,ensure the transport safety
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
