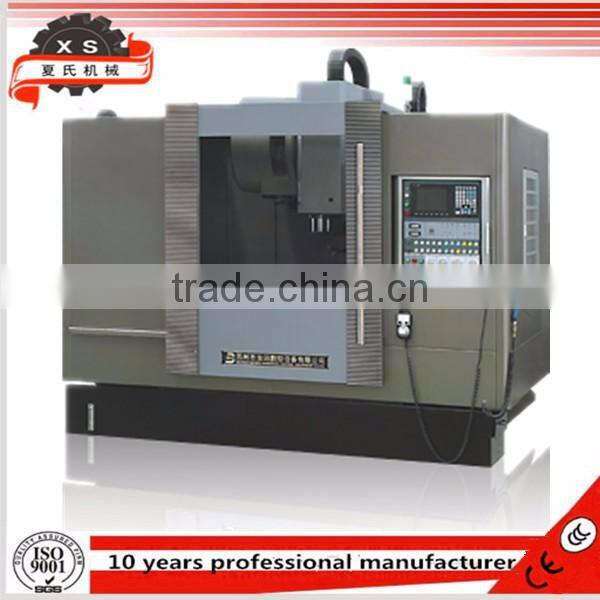

Help CenterCNC Vertical Machining Center With High Precision XH716
Related Products
-
Competitive Price With High Quality CNC Engraving Machine DX5050,cnc Milling MachineUS$ 2,000 - 2,500MOQ: 1 Set -
Hot DX6060 Cnc Engraving and Milling Machine With High PerformanceUS$ 2,000 - 2,500MOQ: 1 Set
-
CNC Engraving Machine DX80100,Metal Engraving Machine,cnc Engraving and Milling Machine With Low PriceUS$ 2,000 - 2,500MOQ: 1 Set
-
CNC Engraving Machine DX8080US$ 1,500 - 2,000MOQ: 1 Set
-
CNC Engraving and Milling Machine BMDX10080NegotiableMOQ: 1 Set
Machine tools Uses
This machine is suitable for machining and mold making in the field of vertical machining centers, and is able to adapt from roughing to finishing machining requirements, with high precision and high efficiency.
Feature
1.Fuselage and the main components are high-strength cast ironmetallographic structure stability ,so it can ensure long-term stability of the machine used;
2.Pre-stretched precision ball screw drive;
3.High speed, high-precision, high rigidity of spindle unit; Floating tools clamping system.;
4.Designing with oil and water separeted.
5. Interval auto-lubricating.
6.Full splash guard
Main specification
type | unit |
| |
|
| XH716 | |
X-axis travel | mm | 1000 | |
Y-axis travel | mm | 600 | |
Z-axis travel | mm | 520 | |
Spindle nose to table | mm | 150-650 | |
Spindle center to column guide-way face | mm | 655 | |
High speed feeding of X,Y axis | mm/min | 15000 | |
High speed feeding of Z axis | mm/min | 12000 | |
Feeding speed | mm/min | 1-5000 | |
Table size | mm | 600×1300 | |
Max.loading capacity of table | kg | 450 | |
T-slot NO/width/distance of table |
| 5/18/125 | |
Max.spindle speed | r/min | 8000 | |
Main motor power | kw | 7.5 | |
Spindle nose taper |
| BT40 | |
Magazine capacity | A | 16 | |
Magazine type |
| Turret-type | |
Max.diameter of tools | mm | Φ130 | |
Max.length of tools | mm | 300 | |
Max.weight of tools | kg | 6 | |
Air pressure Mpa | mpa | 0.6 | |
Machine weight | kg | 5350 | |
Overall dimendsion | mm | 2508×2900 ×2700 | |

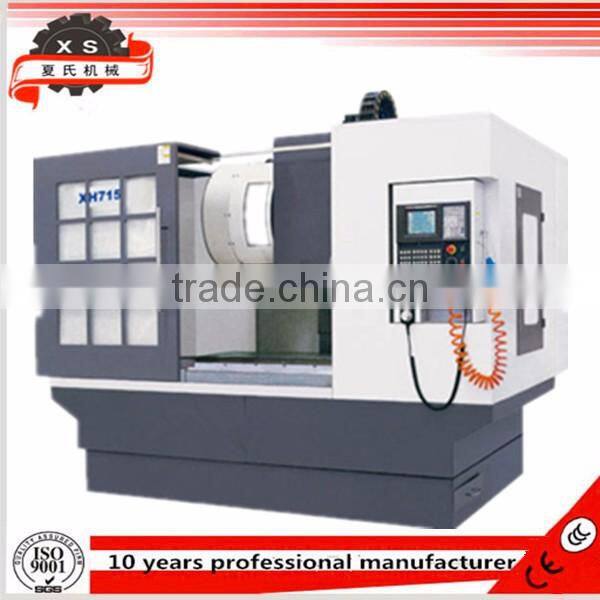

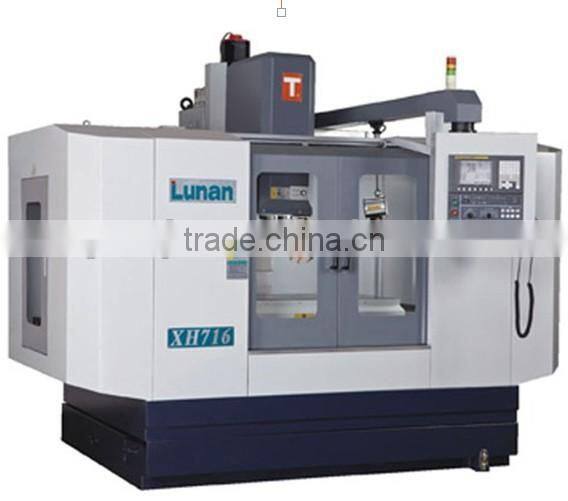

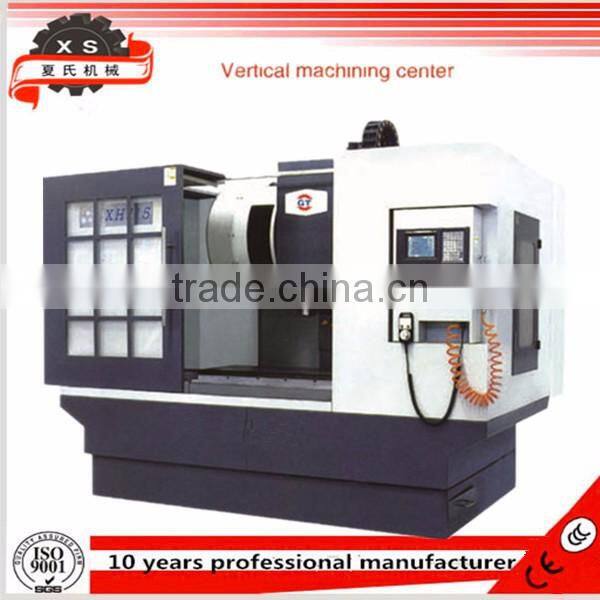

Detailed pictures for your reference

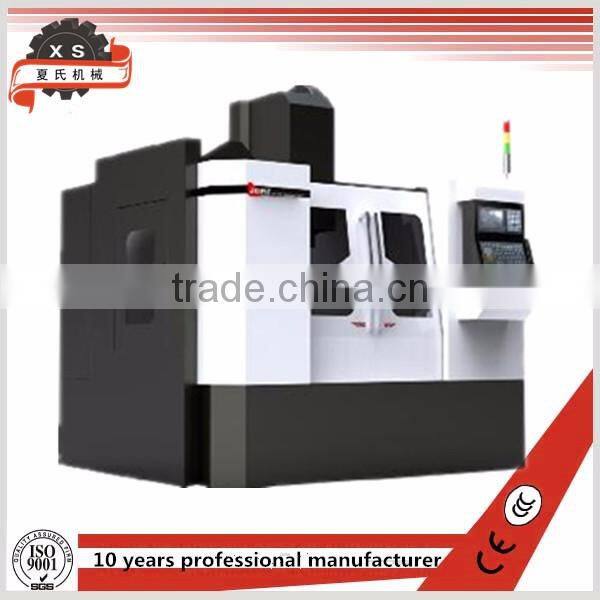

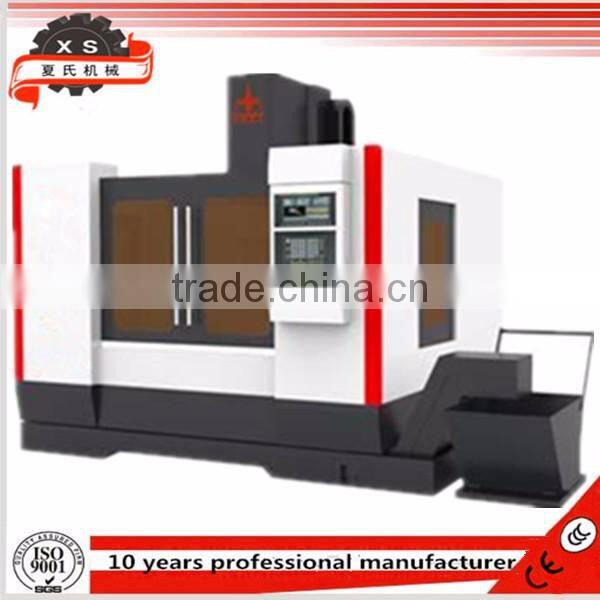

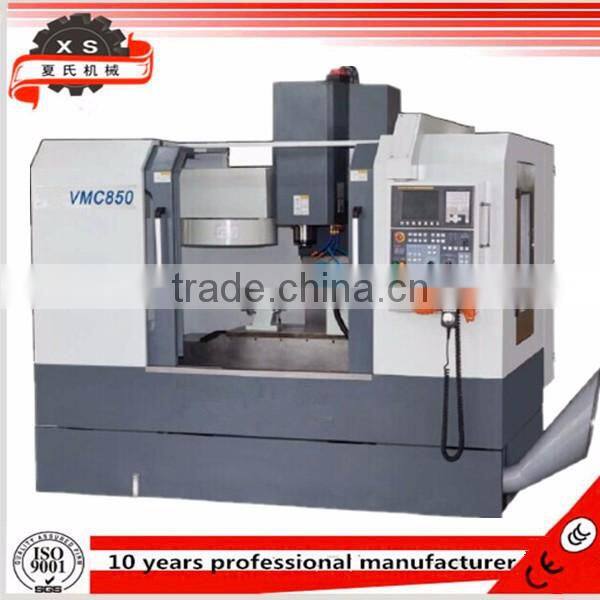

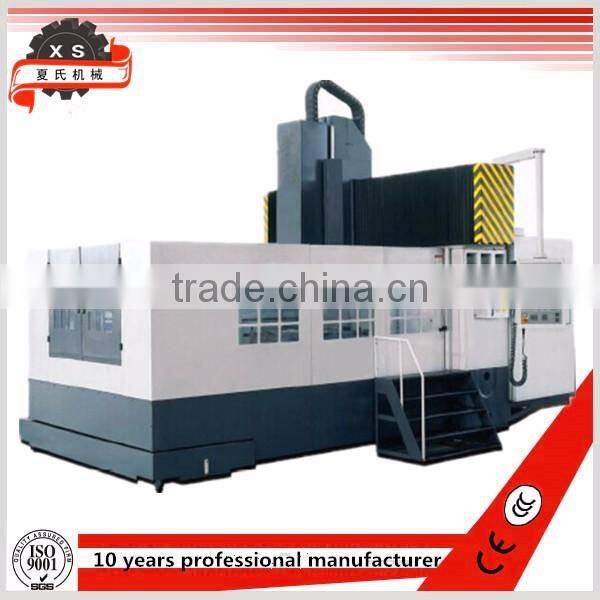

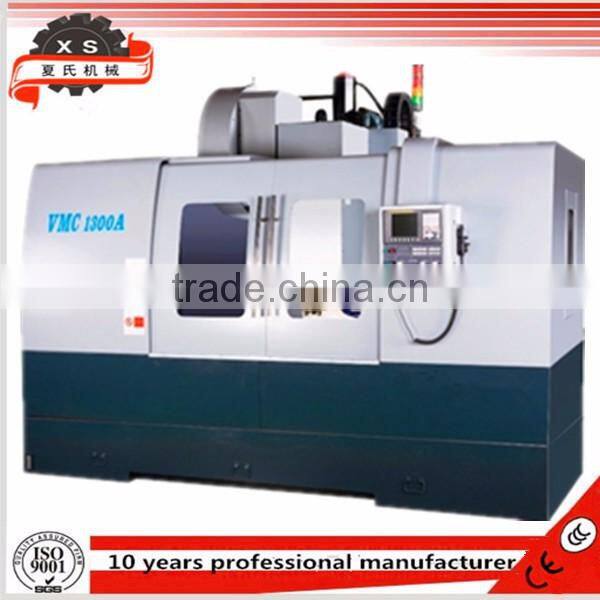

Other types machining center
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
