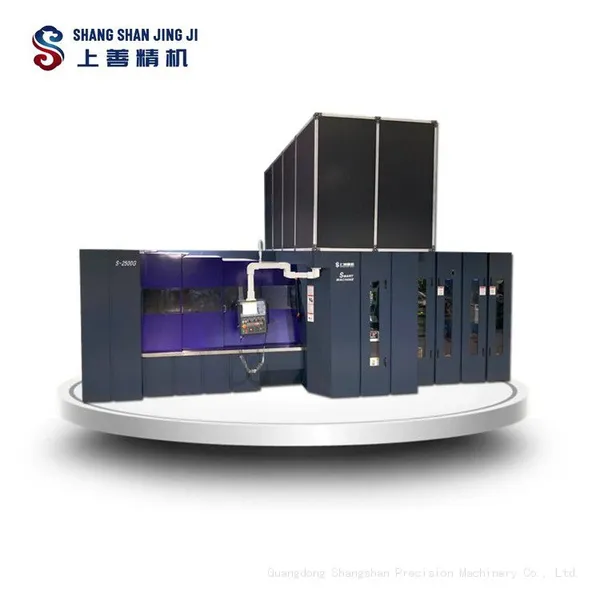

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G

Name: Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G
Brand: shangshanjingji
SKU: 172866644
Availability: InStock

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G thumbnail-1

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G thumbnail-2

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G thumbnail-3

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G photo-1

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G photo-2

Five-axis Vertical Milling Machining Center Isostatic Isotropic Graphite Lathe S-2500G photo-3

US$ 999 - 999999 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

shangshanjingji

Place of Origin:

China

Model Number:

S-2500G

Contact Supplier Request Quote Chat Now

Guangdong Shangshan Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

humen

Delivery Detail:

60 days

Product Details
Company Profile
Contact Us

Brand Name shangshanjingji

Place of Origin China

Model Number S-2500G

Type Horizontal

Certification IAF, CNAS

After-sales Service Provided Engineers available to service machinery overseas

Warranty One year warranty for the whole machine

Weight 20000Kg

Dimension(L*W*H) 3500*7200*4250mm

Voltage 380V

Condition New

CNC or Not CNC

X/Y/Z Travel: 2700*1400*700mm

Worktable Dimensions: 2500*1200mm

Worktable Load Capacity: 2000Kg

Spindle Face to Worktable Height: 70--770mm

Positioning Accuracy: +-0.005/300mm

Repeatability: +-0.003/300mm

Tool Magazine Capacity: 24.0

Spindle Speed: 15000--20000rpm

Moving Speed: 15m--20m/min

Cutting Speed: 10m--20m/min

Tool Change Time: 2 seconds

Machine Tool Dimensions: 3500*7200*4250mm

Machine Tool Weight: 20000Kg

Control Method: Fully closed--loop control

Torque: Customizable configuration

Drilling Capacity: Customizable configuration

Voltage: 380V

Frequency: 50/60 Hz

Phase Type: 3--Phase Electricity

Type of Milling Machine: Gantry

Color: Black

Machining Centre: Horizontal

Automation Grade: Automatic

Job Material: Graphite

Usage/Application: Graphite Processing|Carbon Fiber Processing|Ceramic Processing|Composite Material Processing

Can it be customized: Supports customization

Guarantee: One year warranty for the whole machine

Brand: ShangshanJingji

The Five-axis vertical milling machining center is an advanced, versatile solution designed for high-precision machining of complex parts, particularly in industries that require intricate geometric shapes and tight tolerances. This cutting-edge equipment is ideal for applications involving wear-resistant graphite box processing equipment, ensuring precise cutting and finishing of graphite components that demand durability and wear resistance. The five-axis capability allows for simultaneous machining along multiple axes, offering the flexibility to process complex graphite geometries, while maintaining exceptional accuracy and surface finish. Paired with our Graphite boat CNC, this system is perfect for creating precision graphite boats used in high-temperature applications, ensuring a high level of detail and consistency. Additionally, our Customized graphite CNC machine tool allows for specific tailoring to meet the unique processing needs of each customer, optimizing machining efficiency and performance.

The Domestic graphite engraving machines integrated into the setup enable precise engraving and cutting for detailed graphite components, providing enhanced capabilities for creating custom parts. For customers requiring advanced material handling, our Isostatic isotropic graphite lathe is ideal for turning and finishing isotropic graphite, ensuring a superior surface quality. The Automatic lathe turning graphite feature further enhances productivity by automating turning processes, minimizing manual intervention, and providing consistent quality across high-volume production runs. Whether you're dealing with complex graphite components or looking for efficient machining solutions for advanced materials, our Five-axis vertical milling machining center offers a powerful, reliable, and customizable solution to meet the demands of modern manufacturing processes.

Product Tags: Automatic graphite milling machine , Graphite micro-milling , graphite precision engraving machine , Graphite processing large stroke engraving and milling machine , Graphite machinery high speed processing center , Graphite vacuum suction cup CNC
