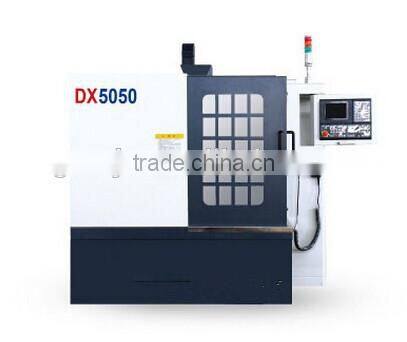

Competitive price with high quality CNC Engraving Machine DX5050,cnc milling machine
Feature
8000 RPM, Auto Tool Change,
Auto Measurement and offset,
64 MB program capacity.
Standard Equipment:
1.L.M. guide-ways for all axes
2.Pre-Loaded ball screws for all axes
3.Centralized lubrication system
4.AC Servo Drive for all axes
5.Water cooled spindle
6.Electric hand control wheel
7.Air blast for spindle taper cleaning
8.Fully covered machine
9.Telescopic covers for all 3 axes
10.Auto & Manual coolant system
Optional:
1.Plug-in 4th and 5th axis
2.Chip Conveyor
3.Flood Coolant System
4.Voltage Stabilizer
5.Machine Lamp
Specification
| Model | 5050 | 6060/6080 | 8080/80100 | 80120 |
| Working Table size (mm) | 500×500 | 600×600-600×800 | 800×800-800×1000 | 800×1200 |
| Stroke(X/Y/Z)(mm) | 500×500×240 | 600×600×300-600×800×300 | 800×800×300-800×1000×300 | 800×1200×300 |
| Max.feeding speed | 8000 | 8000 | 8000 | 10000 |
| Max.cutting speed | 6000 | 6000 | 6000 | 8000 |
| Accuracy of couple knives | 0.002(Automatic) | |||
| Positioning Accuracy (mm) | 0.01/300 | 0.01/300 | 0.01/300 | 0.01/300 |
| Duplicate positioning Accuracy (mm) | 0.005 | 0.005 | 0.005 | 0.005 |
| X/Y verticality | 0.015/300 | 0.015/300 | 0.015/300 | 0.015/300 |
| Diatance between working table and Main spindle(mm) | 60-300 | 150-450 | 20-420 | 80-380 |
| type groove size(mm) | 5-12×100 | 5-14×150 | 5-14×150 | 5-14×250 |
| Gantry height(mm) | 400 | 500 | 520 | 560 |
| Gantry across height(mm) | 300 | 450 | 420 | 380 |
| Gantry width(mm) | 600 | 700 | 900 | 900 |
| Max. load on table(kg) | 200 | 300/400 | 500 | 600 |
| Spindle speed(r/min) | 600-2400 | 600-18000 | 600-18000/15000 | 600/15000 |
| Main motor power(kw) | 3.2 | 4/5.5 | 5.5/7.5 | 7.5 |
| Weight(kg) | 2500 | 3000 | 3700 | 4200 |
| clamping chuck | ER20 | ER25/32 | ER32/40/BT30 | ER32/40/BT30 |
| System grade servo | LNC/ Syntec/ Fagor-Yaskawa /Panasonic | |||
| Battery request(kva) | 10 | 13 | 15 | 16 |
| Dimension(mm) | 2000×1800×2100 | 2400×2200×2300 | 2800×2500×2500 | 3000×2600×2500 |

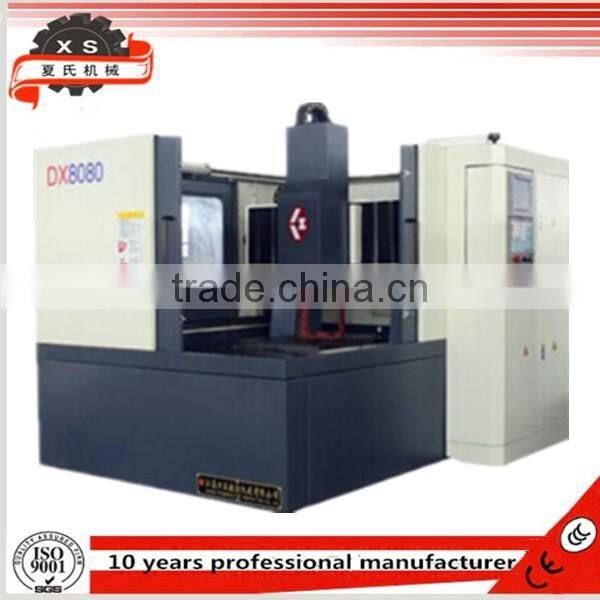

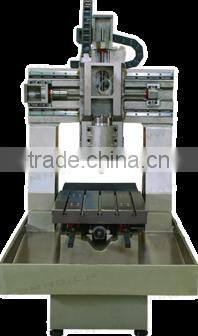

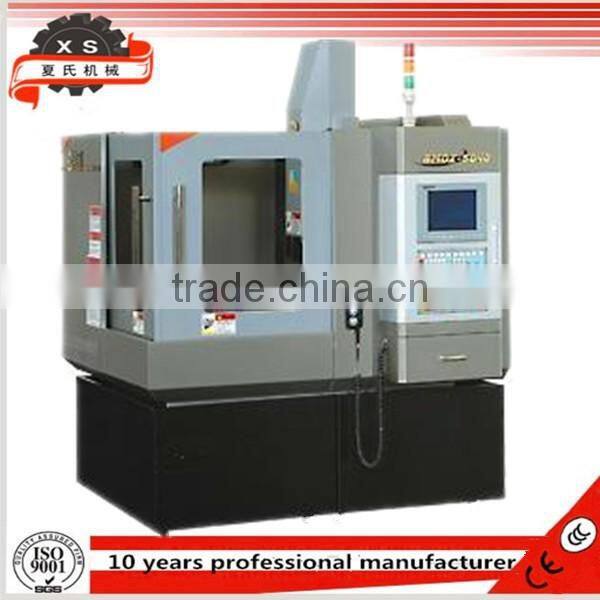

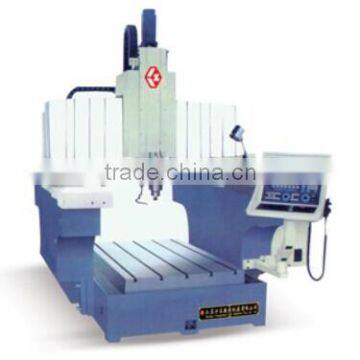

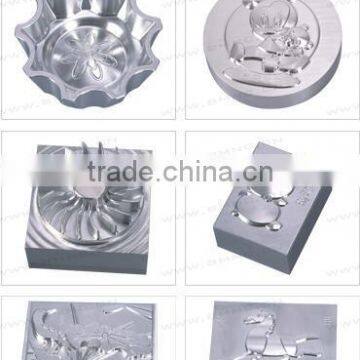

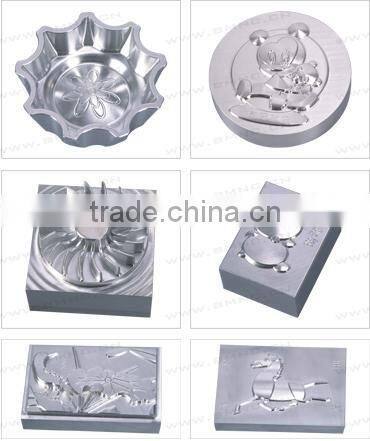

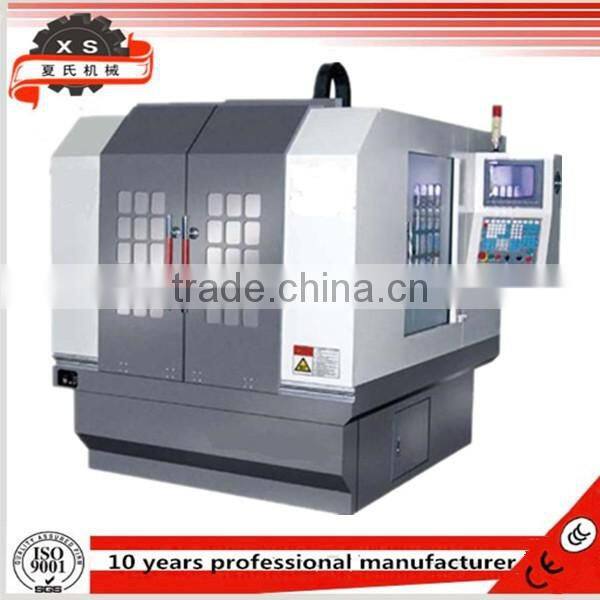

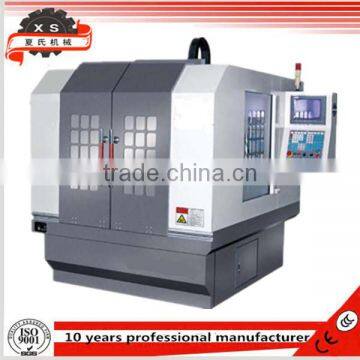

Picture for your reference
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
