Cheapest !!! In Stock Special Discount Cnc Machining Center for Sale NMC-32VS

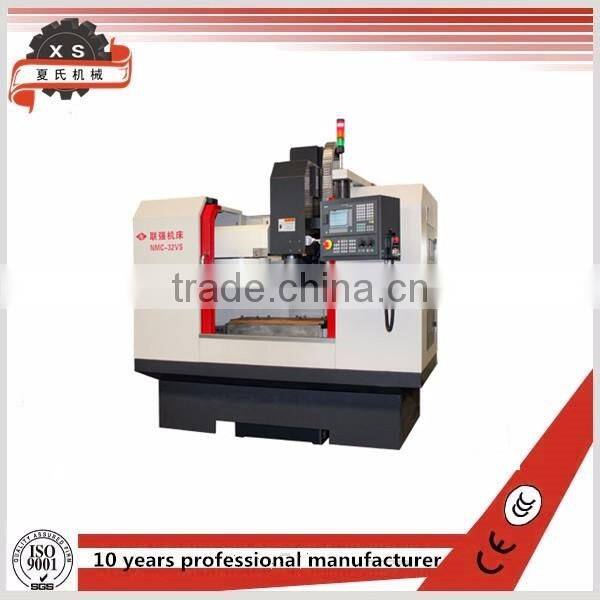

Cheapest !!! In Stock Special Discount Cnc Machining Center for Sale NMC-32VS photo-1
US$ 1,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter Depends on Model
Place of Origin Guangxi, China
Brand Name XIASHI
Model Number NMC-32VS
Voltage 380V
Power(W) 4KW
Dimension(L*W*H) 2200x2050x2370mm
Weight 2370kg
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

This series of CNC milling machine is equipped with servo motor, spindle, pneumatic scraping knife, rigid tapping (some systems do not have the function of new NC milling machine etc.). Movement speed, feed rate and feed amount, the system can automatically control the programming tool of machine tool spindle and other auxiliary functions, in order to complete the workpiece on the surface (including some boring, milling, drilling, reaming, reaming, expanding and tapping), and through the pneumatic somra knife shorten the tool change time. To improve the processing efficiency, three trajectory track, this machine is widely used in automobiles, motorcycles, machinery and mold manufacturing, aerospace, instrumentation industry processing box, plate, valve, mold and other complex shape precision high batch production.



Stepless speed spindle servo design; standard machining center shank, pneumatic scraping knife; can achieve rigid tapping; automatic lubricating device; programmable control cooling pump; before and after the main shaft bearings with precision P4 level high speed bearing, high rotation accuracy, long service life; machine tools are all closed.



NMC-32VS

model

NMC32VS

worktable

worktable(width×length)mm

320×800

Tslot(slot number-slot width×slot distance)mm

3-14×100

Worktable max load (kg)

300

travel

Distance from spindle center to column guideway (mm)

365

Distance between spindle and worktable(min~max)



90-540

X/Y/Z Travel mm

500/320/450

feed

X/Y/Z fast move speed m/min

16

X/Y/Z feed speed  mm/min

5-5000

Spindle

Spindle motor power(fixed / Intermittent)kw

3.7

spindle torque)nm

/

range of spindle speeds (r.p.m)

50-6000

ATC

Tools type

BT40

tools                          Quantity

standard

10tools/ Bamboo hat type knife

choice

/

Max tool weight kg

8

Maximum tool diameter / length     Max.Tools D/L

standard

φ90/300

choice

/

Exchange tool time(knife to knife)

6

Exchange way

/

NC precision

X axis positioning precision(German VDIstandard)mm

0.020

Y/Z axis positioning precision(German VDI standard)mm

0.016

Repeat positioning precision(German VDI standard )mm

0.008

power

Power system

3 three-phase AC 380V±10% 50Hz±1Hz

Power demand KVA

12

other

Pressure Mpa

0.5-0.7(flux:500L/min)

                 Overall size

Lengthxwidth mm

2200×2050

Height mm

2370
