High-efficiency VMC1160 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine

High-efficiency VMC1160 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine photo-1

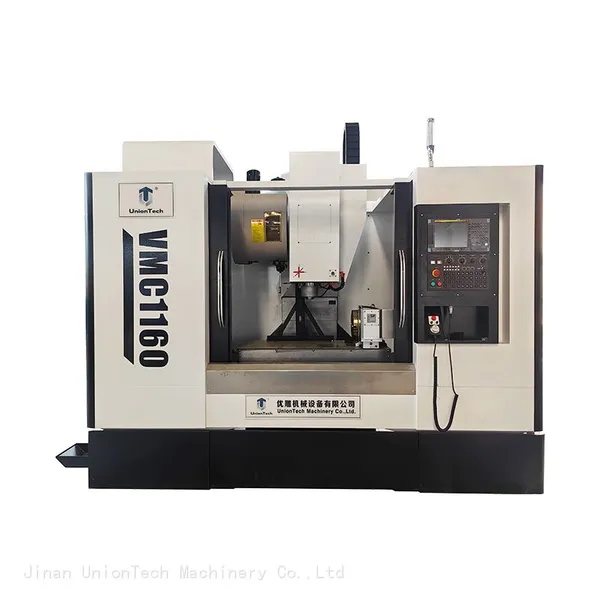

High-efficiency VMC1160 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine photo-2

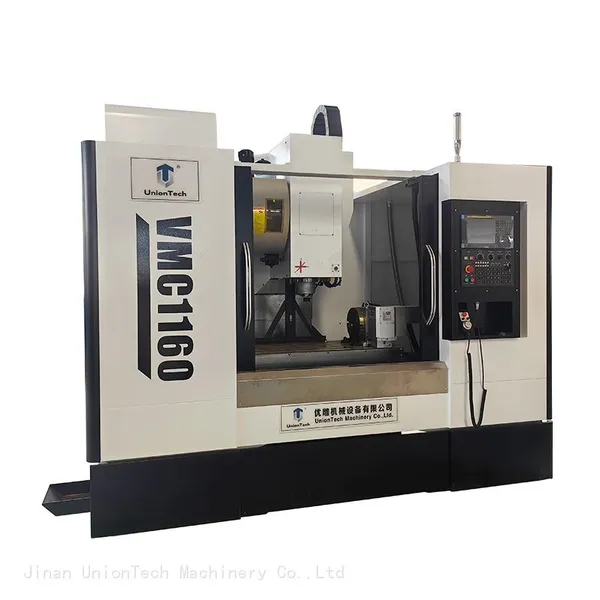

High-efficiency VMC1160 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine photo-3

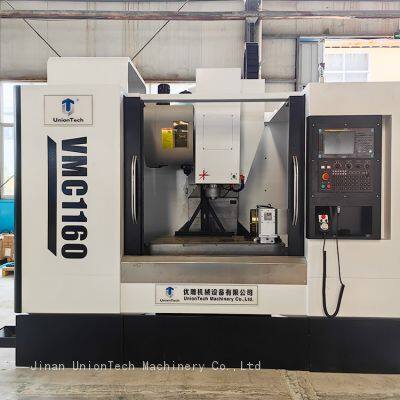

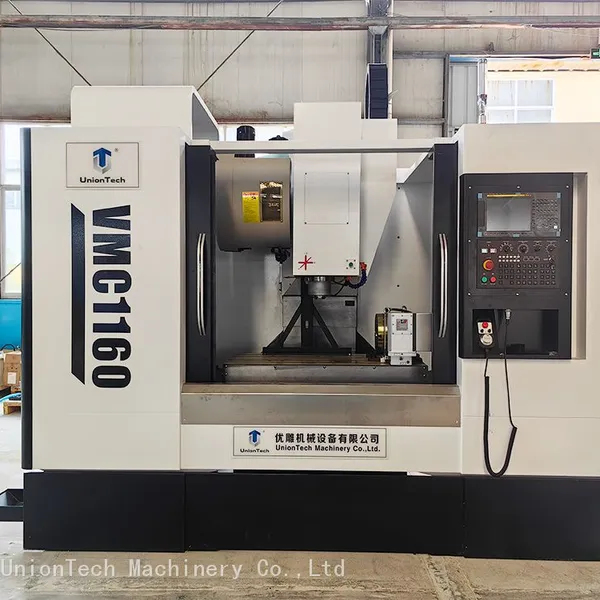

High-efficiency VMC1160 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine photo-4

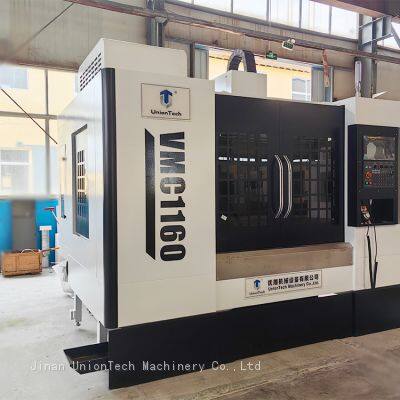

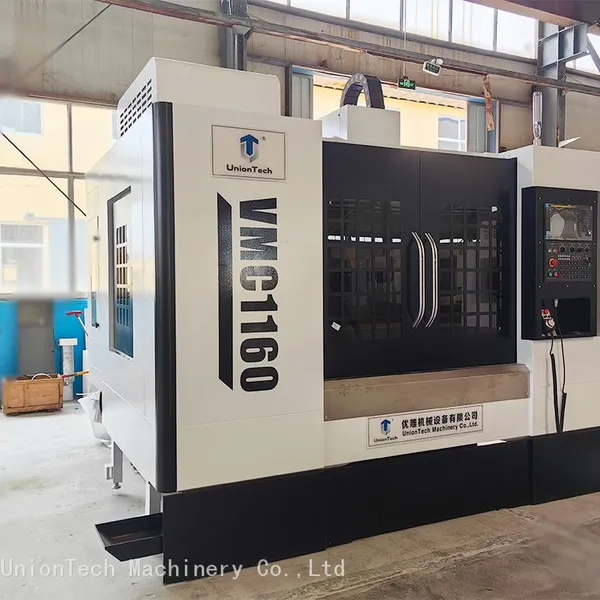

High-efficiency VMC1160 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine photo-5
US$ 16899 - 23599 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
UnionTech
Place of Origin:
China
Model Number:
VMC1160
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Brand Name UnionTech
Place of Origin China
Model Number VMC1160
Type Vertical
Certification CE/SGS/ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 month
Weight 7000KG
Dimension(L*W*H) 290X230X200 cm
Voltage 380V/3PH/50HZ
Condition New
Power(W) 11KW
CNC or Not CNC


High-efficiency VMC650 Vertical Machining Centre High-precision Mold Engraving Special CNC Milling Machine
Project
Unit
VMC 1060
VMC 1160
VMC1690
X axis travel
mm
1000
1100
1600
Y axis travel
mm
600
600
900
Zaxis travel
mm
600
600
700
Table Size
mm
1200*600
1200*600
1800*900
Maximum table load
kg
800
1000
1500
T-slot
mm
5*18*120
5*18*125
5*22*165
Spindle taper

BT40
BT40
BT50
Spindle power
kw
11/15
11/15
18.5/22
Maximum Spindle speed
rpm
8000
8000
6000/8000
Rapid Traverse
m/min
36/36/24
36/36/24
15000
Fast moving
m/min
18000
18000
12000
Cutting feed
mm/min
1-8000
1-8000
1-5000
Spindle nose to table
mm
130-680
140-740
32/40/32
Maximum tool diameter
mm
Φ78Φ120
Φ78Φ120
Φ112Φ200
Maximum table weight
kg
8
8
18
Positioning accuracy
mm
±0.0075
±0.0075
±0.001
Repeat accuracy
mm
±0.005
±0.005
±0.0075
Machine Weight
kg
6900
7000
14000
Dimension
mm
3200*2400*2800
3400*2480*2960
4500*3350*3200
UnionTech Machinery Co., Ltd. is a comprehensive technology enterprise specializing in the development, manufacturing, sales, and service of CNC machine tools. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing, which has set a new banner in the CNC machine tool industry with over ten years of technical experience. There are currently five mainstream product series: vertical machining center series, horizontal machining center series, CNC lathe, and gantry machining center series. The high-speed machining center machine in the vertical machining center series is our company's re promoted product. This series of machine tools has the characteristics of high speed, high rigidity, high performance, and high efficiency, and has quickly become the preferred machine tool equipment for industries such as communication, consumer electronics, automotive, and aerospace companies.
UnionTech Machinery Co., Ltd. is based and means on precision machining, precision testing, and precision  assembly, persistently pursuing high-end technology, highend market, and high-efficiency goals, closely following the forefront of industry technology, high standards, high starting points, and strict requirements.
1. Your products look similar, but the prices are different. What's the difference? -The appearance are similar, but the models, parameters and configurations are different, so the prices are different. The better configuration, the higher prices. If you want to get an exact quotation, please contact customer service. 2. Can your offer customized service? -Yes, we can. Please provide the specification for the machine you need, and tell us your requirements. 3.With so many machine tools, how to choose one that suits me? -Please provide the requirements of the products you need to process: drawings, dimensions, size of workpeices etc. we will recommend the suitable model for you according to the products you need to process. 4. Is your machine tool 3-axis, 4-axis or 5-axis? -We have 3-5 axis machine tools, we need to know the size you need for 4th/ 5th rotary table, NC controller ,motor brand and models, so that we can offer the quotation to you.
