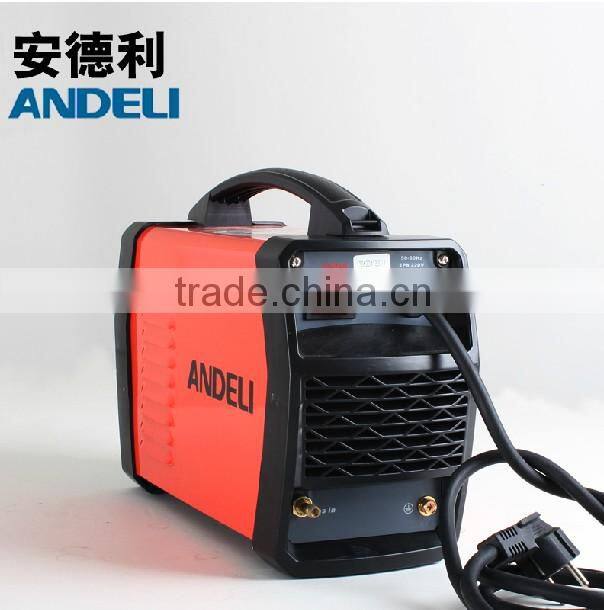

Portable MMA TIG Welding Machine, Single Phase AC 220V, IGBT Type

FOB Price

US$ 1 - 499 / Set

1 Set(Min. Order)

Port Ningbo/Shanghai China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	ANDELI Or OEM	Model Number	TIG-180G, 200G, 250G
Arc Current	155A,170A,220A	Pulse Frequency	50/60HZ
Pilot Arc Current	20A	Rated Duty Cycle	60%
Motor Type	DC Motor	Dimensions	480x200x375MM
Usage	TIG, MMA	Voltage	single phase AC220 ±15%,three phase AC380 ±15%
Power(W)	5KVA,5.7KVA,8KVA	Certification	CE,CCC,ISO9001
Warranty	2 Years	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

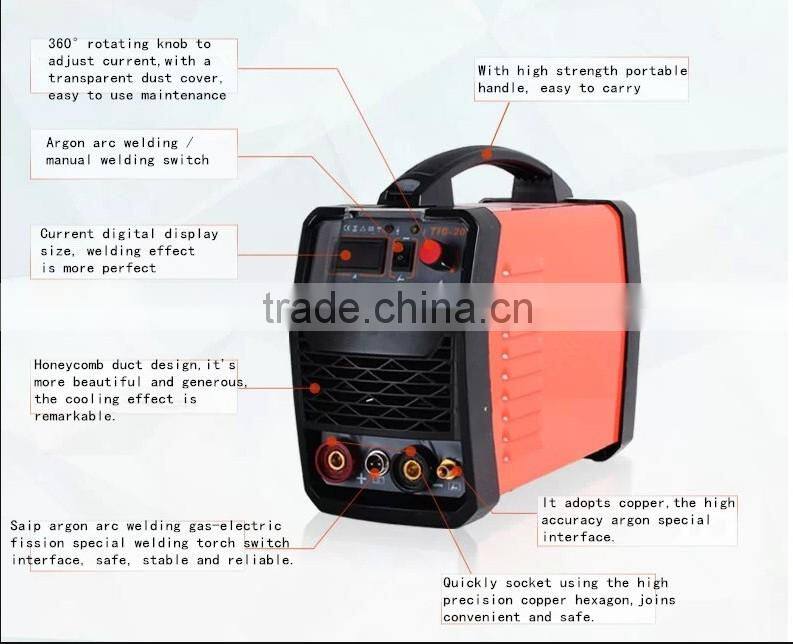

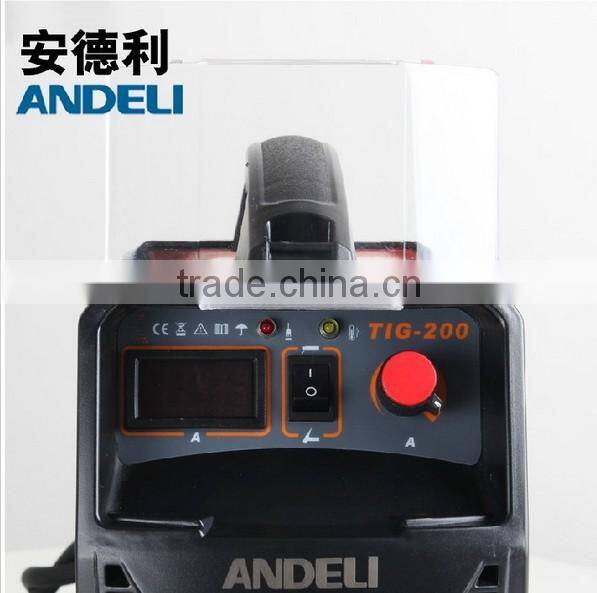

Portable MMA TIG Welding Machine, Single Phase AC 220V, IGBT Type

Application:

1. Support TIG& MMA two kinds of welding

2. Compact and portable ,easy and simple to operate

3. Start arc easyly, stable welding arc, deep weld pool and beautiful welding shape

4. Suitable for welding with different kinds of acid or basc electrode

5. Plastic box with complete accessories is optional: electrode holder,earth clamp, cable joint, grounding cable, welding mask, brush and QQ150A TIG torch

Specification:

Model	TIG-160	TIG-200	TIG-250	TIG-315	TIG-400	TIG-500
Rated input voltage(v)	single phase AC220±15%	single phase AC220±15%	three phase AC380±15%	three phase AC380±15%	three phase AC380±15%	three phase AC380±15%
Rated frequency(Hz)	50/60	50/60	50/60	50/60	50/60	50/60
Rated input power(KVA)	5.3	7	7.8	13	17	24
Rated input current(A)	24	31.8	12	19.5	54	35.7
Rated output	TIG/MMA 160A/26.4V	TIG/MMA 200A/28A	TIG/MMA 220A/28.8V	TIG/MMA 315A/32.6V	TIG/MMA 380A/35.2V	TIG/MMA 480A/39.2V
Output current(A)	20-160	20-200	20-220	20-315	20-380	20-480
No-load voltage(V)	56±5	56±5	60±5	60±5	60±5	60±5
Rated duty cycle(%)	60	60	60	60	60	60
Efficency(%)	85	85	85	85	85	85
Power factor	0.85	0.85	0.85	0.85	0.85	0.85
Protection grade	IP21	IP21	IP21	IP21	IP21	IP21
Insulation grade	F	F	F	F	F	F
Net weight(kg)	8.5	9.4	17.5	25.3	31.9	32.7
Gross weight(kg)	11.5	13.2	22	30.9	38.5	38.7
Housing of machine	iron	iron	iron	iron	iron	iron
Dimension of machine(mm)	400155300	412155300	500210370	580330440	580330440	580330440
Packing	carton	carton	carton	carton	carton	carton
Dimension of packing 4V1(mm)	47727132	507271320	560270460	640400510	640400510	640400510

*Including accessories: earth clamp x1pcs ,cable joint x 2 pcs,grounding cable x 3 meters,TIG torch x 1set(QQ150A for TIG-160,air cooled wp-26 for TIG-200,water cooled WP-18 FOR TIG-315/400/500)

Our Competive:

Achievements:

* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 24 MONTHS WARRANTY.

Our salesmen will reply your inquiry within 24 hours. Any order is welcome. If you like to be our agent in your country, we can give you any support on the technique & other aspects.

If you have any questions ,please contact with us...
