Specifications
ac dc tig 200p welding machine2. small splashing,SMT
3. OEM
4. 1 years warranty
5. CE,ROHS,CCC
mosfet type ac dc tig 200p welding machine TIG-200P for sale
1.MOSFET inverter circuit
2.DC MMA&DC TIG&DC pulse TIG, 3 functions
3.detailed adjustable parameters lead to more accurate performance, such as
pre-flow, gas delay, current slow uo, current decay, frequency ratio and so on.
4.can work on many different metal materials, such as stainless steel, carbon steel,
alloy steel, copper, silver, titanium and so on.
selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines
Specifications: inverted welder 220V
Inverter TIG Pulse Welding Machine | ||
Model |
TIG-160P |
TIG-200P |
Type |
MOSFET |
|
Rated input voltage |
single phase 220V±10% / 50Hz |
|
Rated input capacity |
5.0KVA |
6.6KVA |
Rated input current |
7.6A |
10.1A |
Rated duty cycle |
60% |
|
Pre-flow time |
0.1-15s |
|
Start arc current |
10-100A |
|
Current slow up time |
0.1-10s |
|
Arcing current |
20-100A |
|
Constant current |
5-160A |
5-200A |
Force current |
10-100A |
|
Peak current |
5-160A |
5-200A |
Ducy ratio |
1%-100% |
|
Pulse frequency |
0.2-50Hz |
|
Base current |
5-160A |
5-200A |
Current decay time |
0.1-15s |
|
Crater arc current |
5-160A |
5-200A |
Gas delay time |
0.1-15s |
|
Efficiency |
89% |
|
Power factor |
0.95 |
|
Net weight |
8.5KG |
8.5KG |
Insulation of main transformer |
H |
|
Insulation of output reactor |
B |
|
including accessories: earth clamp×1pcs, cable joint×2pcs, grounding cable×3meters, QQ150 TIG torch×1set | ||
Details: inverted welder 220V
Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines inverted welder 220V
Newest hot sellportable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

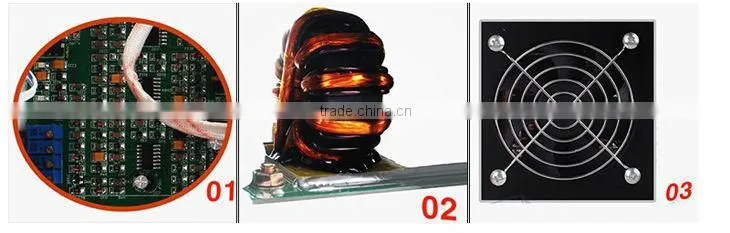

01. 100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Andeli exclusively using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.
02. Andeli is the only stick with the most advanced of the amorphous structure transformer 200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.
03. Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.

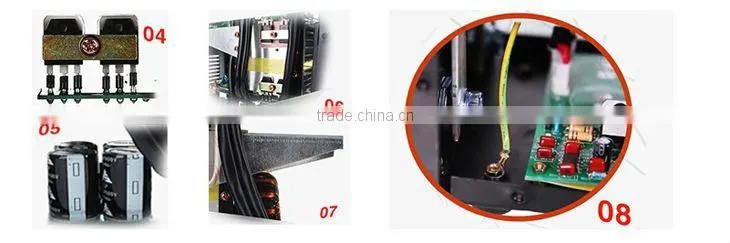

04. From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.
05. Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.
06. Super-size capacity of the radiator, to improve welding efficiency by more than 26%.
07. Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, Andeli want to manufacturing the best welding.
08. Andeli welding machine production in line with international safety standards, each welder has a grounding design.

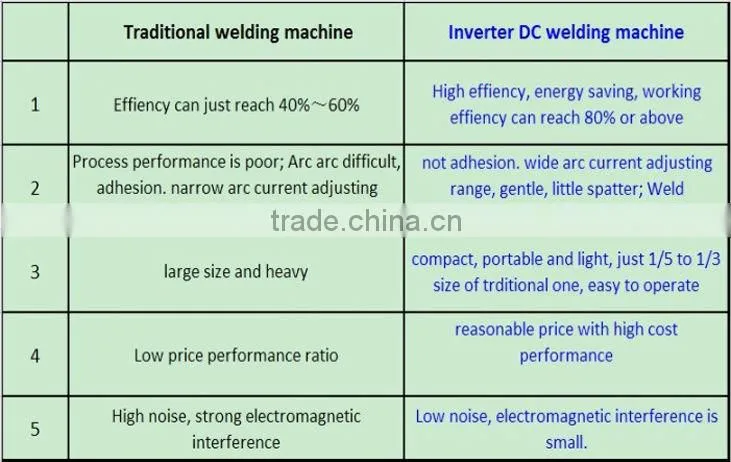

Advantages (compared with traditional welding machines)
inverted welder 220V

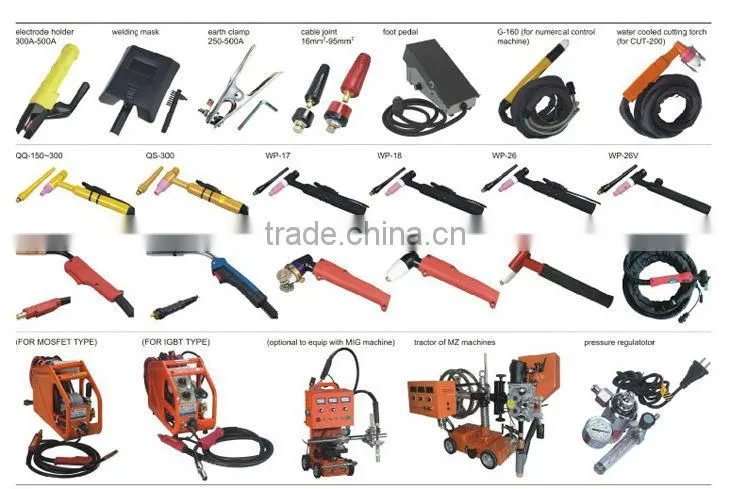

Accessories: Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines
Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines inverted welder 220V
Packing:
Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines
inverted welder 220V inverted welder 220V inverted welder 220V inverted welder 220V

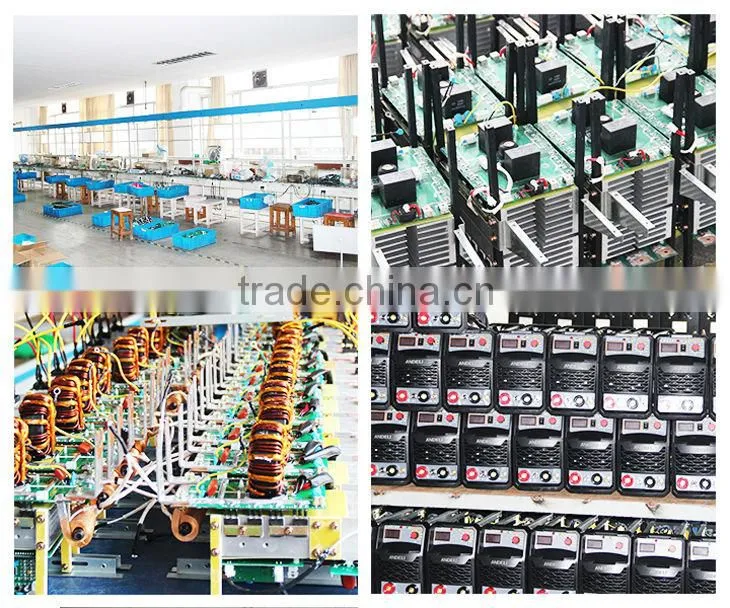

Production Line:
Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding inverted welder 220V

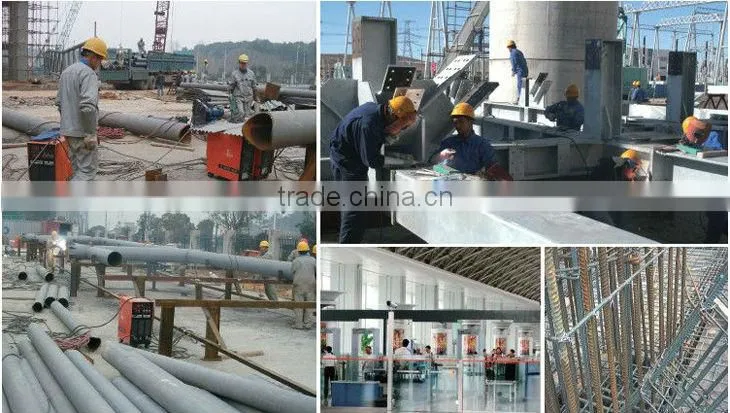

Application and Projects:
Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines inverted welder 220V

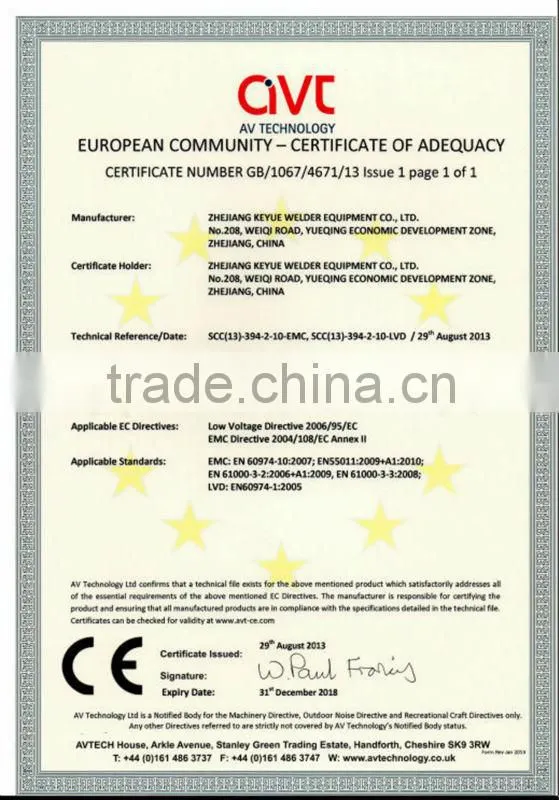

Certificates:
Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines inverted welder 220V
inverted welder 220V inverted welder 220V inverted welder 220V inverted welder 220V inverted welder 220V
For More Info, pls contact me:
Attn.: Ms. Aolin Liu Skype: summerlin8023 Tel: 0086-0577-61722823 Email: andeli312 at
Your emails and inquiries would be dealt within 24 hrs, despite of weekends
