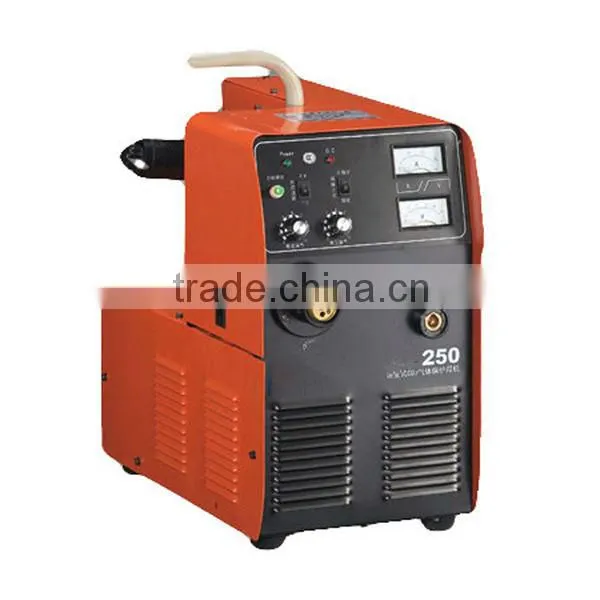

MIG-250Y AC DC IGBT Inverter Co2 Gas Shielded Mig Welding Machines

Name: MIG-250Y AC DC IGBT Inverter Co2 Gas Shielded Mig Welding Machines
Brand: ANDELI
Availability: InStock

FOB Price

US$ 1 - 999 / Piece

1 Piece(Min. Order)

Port FOB Ningbo/Shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	ANDELI	Model Number	MIG-250Y
Arc Current	220A	Pulse Frequency	50/60Hz
Pilot Arc Current	10.5A	Rated Duty Cycle	60%
Motor Type	AC Motor	Dimensions	580290550mm
Usage	Welding	Voltage	380V
Power(W)	5.5KW	Certification	CCC CE ROHS
Warranty	2 years	After-sales Service Provided	Overseas service center available

Product Description

Specifications

IGBT inverter co2 gas shielded welding machine
2. small splashing,SMT
3. OEM
4. 2 years warranty
5. CCC CE ROHS

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Specifications:

Model	MIG-200Y	MIG-250Y	MIG-200F	MIG-250F
Type	MOSFET
Rated input voltage (V)	single phase AC220 ±15%	three phase AC380 ±15%	single phase AC220 ±15%	three phase AC380 ±15%
Rated frequency (Hz)	50/60
Rated input current (A)	23.5	10.5	23.5	10.5
Output current (A)	180	220	180	220
Output voltage (V)	23	25	23	25
Duty cycle (%)	60	60	60	60
Efficiency (%)	85	85	85	85
Power factor	0.93	0.93	0.93	0.93
Diameter of wire (mm)	0.8	1.0	0.8	1.0
Type of wire feeder	built-in	built-in	separated	separated
Net weight of machine(KG)	33.7	35.2	11.9	13.7
Gross weight of machine packing(KG)	40	41.3	13	14.8
Gross weight of accessories packing (KG)	—	—	16.3	16.3
Dimension of machine (mm)	630×315×695	630×315×695	500×210×370	500×210×370
Dimension of packing- machine (mm)	660×370×750	660×370×750	560×270×460	560×270×460
Dimension of packing-wire feeder (mm)	—	—	555×435×410	555×435×410
including accessories: earth clamp×1pcs, cable joint×1pcs, grounding cable×3meters, pressure regulator×1pcs, MIG torch×1pcs,
additional accessories for MIG-200F/MIG-250F: double drive wire feeder×1pcs, control cable×5meters

Details:

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Newest hot sellportable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

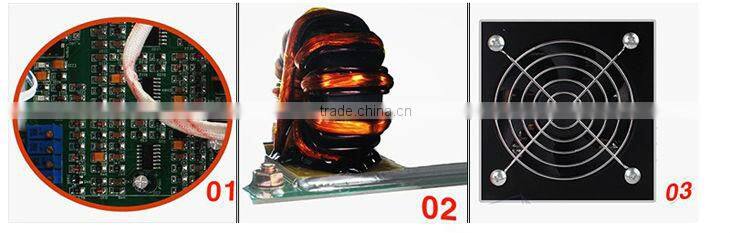

01. 100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Andeli exclusively using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.

02. Andeli is the only stick with the most advanced of the amorphous structure transformer 200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.

03. Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.

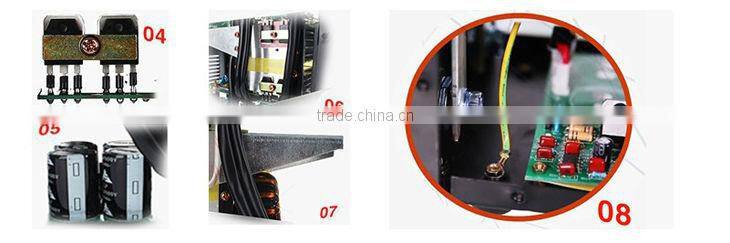

04. From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.

05. Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.

06. Super-size capacity of the radiator, to improve welding efficiency by more than 26%.

07. Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, Andeli want to manufacturing the best welding.

08. Andeli welding machine production in line with international safety standards, each welder has a grounding design.

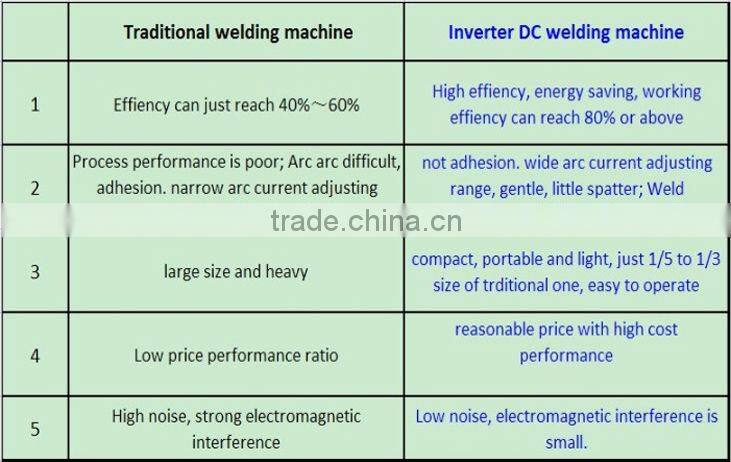

Advantages (compared with traditional welding machines)

Accessories: Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Packing:

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Production Line:

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Application and Projects:

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

Certificates:

Newest hot selling portable MIG-250Y AC DC IGBT inverter co2 gas shielded mig welding machines

For More Info, pls contact me:

Attn.: Ms. Aolin Liu Skype: summerlin8023 Tel: 0086-0577-61722823 Email: andeli312 at

Your emails and inquiries would be dealt within 24 hrs, despite of weekends
