Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > Shanghai Donsun Welding Group VRD Fuction 400A 500A High Load Rate Industrial Machine ZX7-400B/500B MMA Manual Metal-arc Welder

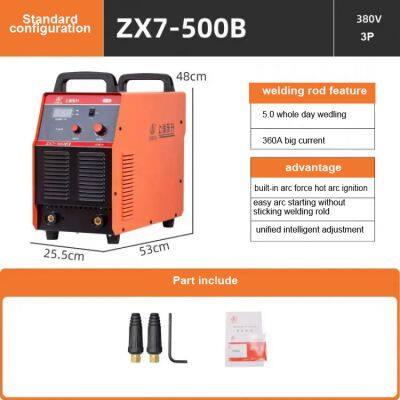

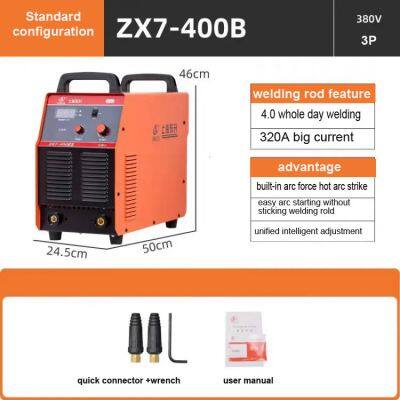

Shanghai Donsun Welding Group VRD Fuction 400A 500A High Load Rate Industrial Machine ZX7-400B/500B MMA Manual Metal-arc Welder
US$ 1200
1 - 9 Set
US$ 800
≥10 Set
Key Specifications
Get Latest Price
Type:
Manual Metal-Arc Welder
Style:
Vertical
Electric Current:
DC
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
Shanghai Donsun Welding Industrial IGBT MMA/carbon Arc Gouging MMA Hand Welding Manual Welding MachineUS$ 500 - 1300MOQ: 1 Set -
Shanghai Donsun ZX5 Series Thyristor Rectifier Arc Welding Machine ZX5-400/500/630US$ 1500 - 8000MOQ: 1 Set
-
Shanghai Donsun Welding Group ZX7-250ST/315ST/400ST MINI MMA Manual Welding Machine Hand Welding Stick ElectrodeUS$ 350 - 700MOQ: 1 Set
-
Shanghai Donsun Welding Group Big Current IGBT Signal Tube, Long Welding ZX7-315GS/400GS/400G Stick Welding MMA Manual Metal-arc WelderUS$ 70 - 90MOQ: 1 Set
-
Shanghai Donsun Submerged-arc Welding SAW MZ-630IGBT/1000IGBT/1250IGBT Series Hidden Arc Welding Union-melt WeldUS$ 1000 - 3500MOQ: 1 Set
Type
Manual Metal-Arc Welder
Style
Vertical
Electric Current
DC
Cooling Way
Air Cooling
Work Form
Other, IGBT
Frequency Range
Intermediate Frequency
Transport Package
wooden case
Specification
customize
Trademark
DONSUN
Origin
China
Adaptive voltage, easy current matching
VRD function, it safe for welders.
ARC force and hot start adjustable, easy to striking the arc
Auto-protection against over-voltage, over-current and over-heated.
Easy to operate-calibrated current control knob makes procedure setting simple and easy

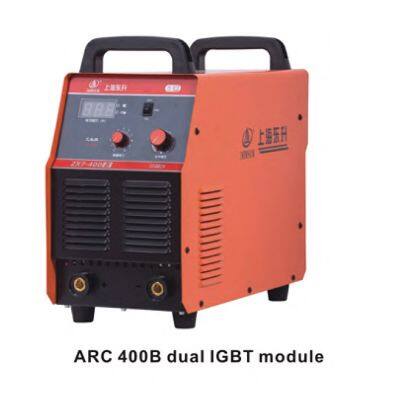

Inverter technology
Over heat /over current protection
VRD
Intelligent air cooling
Model | MMA-400B | MMA-500B |
Rated input voltage(V) | 3P 380V ±15% | 3P 380V ±15% |
Input frequency(HZ) | 50/60 | 50/60 |
Rated input capacity（KVA） | 10.5 | 12.5 |
Rated input current (A) | 27 | 33 |
Duty cycle (%) | 40 | 40 |
No-load voltage(V) | 72 | 72 |
Current range (A) | 50-320 | 50-360 |
Voltage range(V) | 20-32 | 20-32 |
Efficiency (%) | 89 | 89 |
Power factor | 0.93 | 0.93 |
Rod diameter(mm) | Ø2.5- Ø5 | Ø2.5- Ø6 |
Weight (kg) | 16.5 | 18.5 |
Dimension(mm) | 500*245*460 | 530*255*480 |
