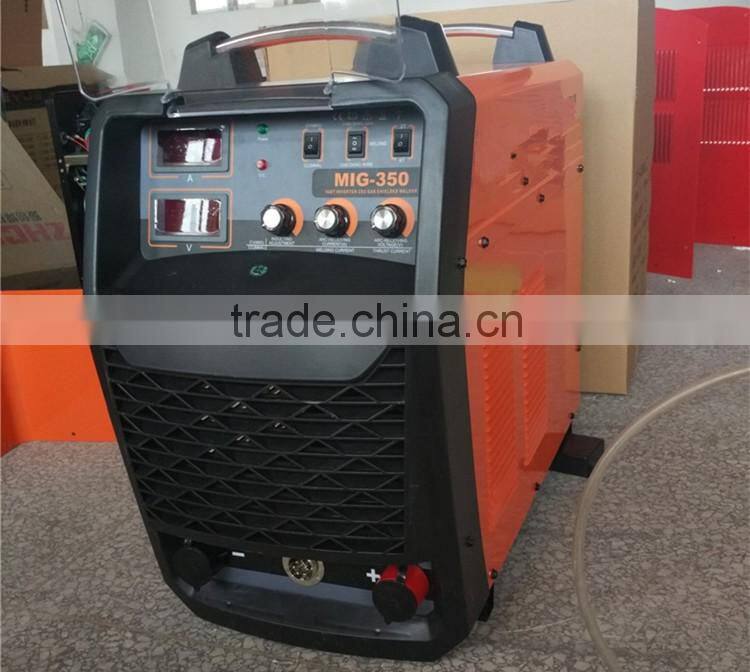

The most popular Inverter CO2 GAS Shielded mig welders
| MIG CO2 Gas Shielded Welder Machine | |||
| Model | MIG-350 | MIG-500 | MIG-630 |
| Type | IGBT Module | ||
| Function | MIG | ||
| Rated input voltage (V) | three phase AC380 ±15% | ||
| Rated frequency (Hz) | 50/60 | ||
| Rated input power (KVA) | 14 | 25 | 35 |
| Rated input current (A) | 21 | 38 | 53 |
| Input protection circuit breaker (A) | 40 | 63 | 100 |
| Rated working voltage (V) | 34 | 40 | 45 |
| Output current (A) | 60-350 | 60-500 | 60-630 |
| Output voltage (V) | 15-40 | 15-50 | 15-50 |
| Diameter of input power cable (mm3) | ≥3×4 | 90% | ≥3×6 |
| Welding cable (mm2) | ≥35 | ≥50 | ≥70 |
| Diameter of welding wire (mm3) | 0.8/1.0/1.2 | 1.0/1.2/1.6 | 1.0/1.2/1.6 |
| No-load voltage (V) | 50 | 75 | 95 |
| No-load loss (W) | 100 | 150 | 150 |
| Rated duty cycle (%) | 80 | 80 | 80 |
| Efficiency (%) | 85 | 85 | 85 |
| Power factor | 0.93 | 0.93 | 0.93 |
| Wire feeder | separated | ||
| Net weight (KG) | 40.5 | 50.3 | 60.7 |
| Gross weight (KG) | 45.5 | 55.8 | 73 |
| Housing of machine | iron | iron | iron |
| Dimension of machine (mm) | 645×335×576 | 700×360×638 | |
| Packing | carton/carton | wooden box/carton | |
| Dimension of packing (mm) | machine: 700×390×660 wire feeder: 555×435×410 | machine: 760×480×710 wire feeder: 555×435×410 | |
| including accessories: earth clamp×1pcs, cable joint×2pcs, gas regulator×1pcs, double drive wire feeder×1pcs, grounding cable×3meters, control line×5meters, MIG torch×1pcs | |||
| additional accessories for MIG-350S/500S/630S: cable joint×1pcs, inner hexagon spanner×1pcs | |||
PLS NOTE:
The average of our welding machine lasts between FIVE and SIX years.
If there were problems in seven days,we replace the new one for you.
Why choose ANDELI Brand welding machine?
1. We are welding machine MANUFACTURER,so we can offer better price and after-sale service and shorter delivery date.
2. We use all new components,TOSHIBA mosfet tube,FUJI diode,NICON capacitor and so on imported components.
3. We adopt SMT technology to decrease failure rate and it is convenient to repair the machine and reduce the cost of repairing,we just need to change the bad pcb board.
4. We have successfully exported to Indonesia, Malaysia, and Thailand and so on foreign countries in all more than ten thousand of each model.We all get good feedback.
5. For large order,our engineer can come to your country Site Instruction.
6. We give customer 1% FREE SPARE PARTS (include pcbs with components and additional mosfet tube and components) to support repairment.
7. We provide a FREE ONE YEAR WARRANTY for all our items.
8. OEM brand.
Strong Welding Capacity:
Achievements:
Our competive :
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY ANDELI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
Why not try one sample first?Choosing our products,give yourself maximum profit. Inquires are typically answered within 24 hours.
Send inquiry now,get offer in 24 hours! Even weekends.
