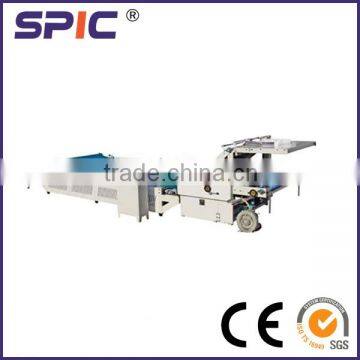

Semi automatic flute laminating machine

Description:

flute laminating machine FM model suitable for lamination of corrugated cardboard to paperboard, paperboard to paperboard.

flute laminating machine FM model suitable for lamination of corrugated cardboard to paperboard, and paperboard to paperboard. Automatic feeding of bottom sheet and normal front feeding of top sheet With flexible front gauge positioning to control the laminating precision. Stepless timing, novelty and beauty, easy operation and high laminating precision. New equipment for producing the high quality cardboard, makes the cardboard more striking, nice and high intensity. Used widely for packing food, wine bottle, electric appliance and light industry products.

Working principle:

The sheet first to be transmitted manually to front gauge positioning for orientation.

Photo electricity switch starts up the vertical pump valve after receiving the signal and

makes the bottom sheet to be absorbed to the belt.

Electromagnetic clutch makes the bottom sheet feed automatically from the feeder.

The bottom sheet will be oriented at front positioning together with the sheet after its

gluing, then to open the positioning by the thrust which generated from the roller to the

bottom sheet.

The top sheet and bottom sheet will be conglutinated through the effect between lamination

roller and press roller, then to be transmitted to the press part

Parameters:

Note: Machinde sizes can be customzied according to customers.

* The above information and specifications are subjects to change without prior notification.

* SPIC reserves all the rights for final explanations.
