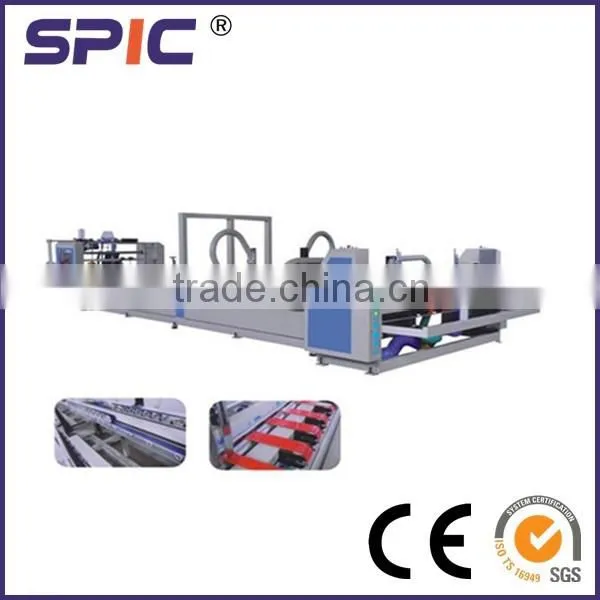

Automatic folder gluer machine for corrugated cartons
Safe and easy to operate,running stably folder gluer
Saving more time and labor than the similiar folder gluer machines
High performance and delicate design can draw more orders for you
Specifications:
| model | NX-2400 folder gluer |
| corrugated paperboard | A B C A/B 3plys 5 plys |
| max.paperboard size | 1200mm*2200mm |
| min.paperborad size | 300mm*850mm |
| feeding speed | 0-120m/min |
| total power | 7.5kw |
| external size | 11500mm*3000mm*1800mm |
| installation area | 18000mm*7000mm |
Note: Machinde sizes can be customzied according to customers.

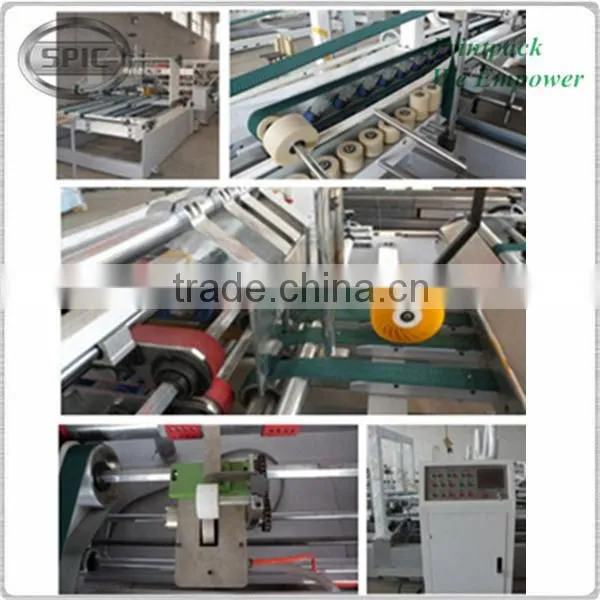

Feeder Unit
1 Inlet edge vacuum suction system ,air draft assists smooth feeding, accurate and reliable
2 High-grade electromagnetic clutch and brake system adoptd to make feeding unit solely controlled,easy to operate and reliable
3 Scorer wheel is adjustable for paperboard of 2-8mm thickness
4 Inverter adjusts the feeding speed which range is 0-120m/min
5 Front baffle and feeding belt are adjustable transversely
Folder and Gluer Unit
1 Main motor drives inverter for speed adjustment,lowest noice,flexible for controling and stable
2 High wear-resistant belt adopted for feeding, automatic folding
3 Stainless steel gluing wheel , glue distributing evenly, saving and long-term service life
4 Rectification device and second-creasing device adopted in the feeding sector
Counter and Stacker Unit
1 PLC and touch screen controlling,easy to operate,input the data without stopping,automatic countering and piling,outputting is neat and tidy.
2 Countering and pushing adopt pneumatic control,accurate and reliable
3 Lapping the carton for rectifying
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
We Promise: All your machines will be packed in steady seaworthy package.
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
