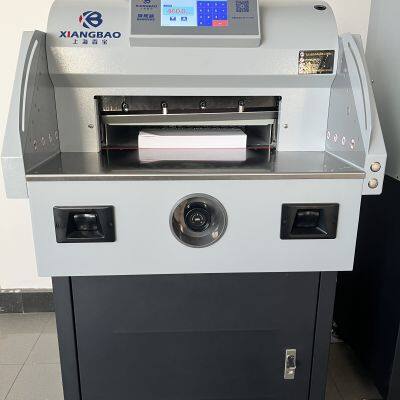

Help CenterShanghai Xiangbao XB-AT900EP Flagship-version Electric Paper Cutter
Related Products
-
Shanghai Xiangbao XB-AT900EP Heavy Duty Electric Paper Cutting MachineUS$ 2225MOQ: 1 Piece -
Shanghai Xiangbao XB-AT552-09EP Dual Hydraulic Heavy Duty Paper Cutting Machine (with Blowing Beads)NegotiableMOQ: 1 Piece
-
Shanghai Xiangbao XB-AT5810EP Hydraulic Paper Cutting MachineUS$ 3352MOQ: 1 Piece
-
Shanghai Xiangbao XB-AT551-09EP Ultimate Edition Hydraulic Paper CutterUS$ 2828MOQ: 1 Piece
-
Shanghai Xiangbao XB-AT651-09EP Dual Hydraulic Ultra-Silent Paper Cutting MachineUS$ 5605MOQ: 1 Piece
Product Description:
Machine Feature Introduction:
Heavy Duty Paper Cutting Machine Design，the gantry adopts the overall casting process and is formed in one piece. It is durable and not easy to deform, and will not cause screw looseness, desoldering, etc.
Wide and thicken tool holder: The contact area of the cutter is large when running up and down, and the larger the contact area, the more stable it is, and there will be no deformation and bending during cutting, effectively ensuring the accuracy of paper cutting, and durability.
Swing arm tool holder: cancel the roller chute mode with the traditional method, and adopt the swing arm design according to the structure of the German paper cutting machine, which is uniform in force and does not easily wear.
Encircled paper push structure: According to the paper push design of the folio-open paper cutting machine (middle screw, guide rails on both sides) with strong noise bottom stability during operation
Front platform: The surface of 304 stainless steel plate is smooth, the paper pushes easily and has little friction, protects the cutting material from scratching
Multi-function operating system: The paper pressing pressure can be set according to the cutting material to meet different needs; if the size deviation occurs during long-term use, the dimensions can be calibrated in the touch screen, and it is more convenient to disassemble the screws; it can be set according to your own operating needs: automatic push, program control function, segmented mode and CNC mode; the machine has shortcut keys A3, A4, A5, A6, and there are 4 sets of custom shortcut keys, which can be moved in one key according to your needs; when the machine fails, it can troubleshoot according to alarm information, detection mode, and function debugging, which is very simple and convenient.
7-inch touch color screen: easy to touch, clear at a glance, simple and clear operation, and very good touch feel.
Technical parameters:
Display mode：seven-inch touch color screen
cut size 30mm-460mm,
paper thickness 60mm,
cutting accuracy ±0.3mm,
paper push accuracy 0.1mm,
power mode electric
paper feed width 460mm,
power parameter AC220V/1.15kw,
Weight 160kg,
Package weight 215KG,
machine size 970X770X1340mm
