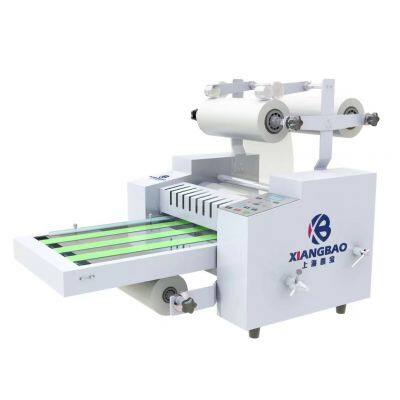

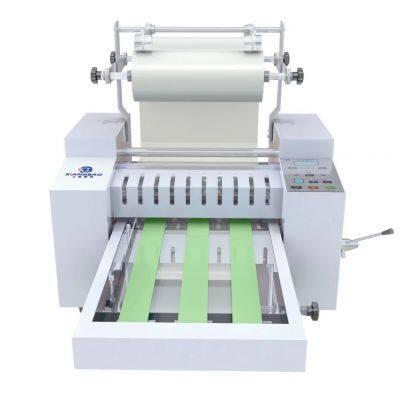

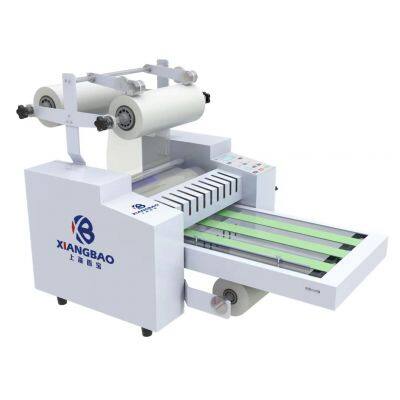

Shanghai Xiangbao XB-V58T Flagship Model Laminating Machine

Product Description: Machine Features

I. Functions: Professional multifunctional laminating machine, capable of performing heat-activated cold lamination, low-temperature cold lamination hot coating, and other tasks. Suitable for graphic design, printing, photography studios, etc. Equipped with high-precision 7.3 centimeter hard chrome steel rollers that are less prone to bubbles, snowflake patterns, or wrinkles, and have rapid heating with uniform temperature distribution for better lamination effects.

1. Speed: Low-speed feeding technology facilitates film insertion, with 1-9 gear adjustments to accommodate operators of varying skill levels. The maximum speed can reach 5 meters per minute, meeting the needs of bulk work.

2. Anti-curling: Gravity lifting anti-curling design with multiple gear adjustments effectively solves the problem of single-sided lamination curling for materials of different thicknesses.

3. Trimming knife: Pre-coated film cutting design allows for quick separation of excess pre-coated film during lamination to prevent curling caused by excessive film width (Note: Due to the film being larger than the material, thermal expansion and contraction cause material curling).

4. Meter line knife: Pre-coated film dotting line design enables quick separation after lamination, allowing both functions to achieve finished product requirements in one step.

5. Film loading design: Can install two rolls of film at a time, saving replacement time and facilitating use, increasing efficiency. Easy switching between glossy and matte films. Additionally, this model supports double-sided simultaneous lamination and has a wide range of applications. It can use either a one-inch or three-inch core film.

6. Thickened aluminum backstop: Made using a thickened type of overall casting process, with a vertical 90-degree angle, high hardness, smoothness, no deformation, better fit, preventing paper skewing during feeding, and easier adjustment movement of the backstop.

7. Belt conveyor mechanism: Solves traditional process drawbacks by using a belt conveyor, ensuring strong adhesion between the material and belt. When double-sided printing and laminating, it prevents friction or scratches on the opposite side. Ensures better and more aesthetically pleasing finished products.

Technical Specifications:

Product Model: Shanghai Xiangbao V58T Flagship Edition Laminating Machine

Display Mode: Digital Display

Feed Speed: 0-6m

Laminating Thickness: 0.1-3mm

Feed Width: 370mm

Steel Roller Direct: 73mm

Temperature Range:<140°C Power

Specifications: 220V/1.6kw

Weight: 49kg Anti-curling

Function: Yes

Trimming Knife: Yes

Meter Line Knife: Yes

Machine Dimensions: 900 x 685 x 640mm

Packaging Dimensions: 680 x 505 x 505mm
