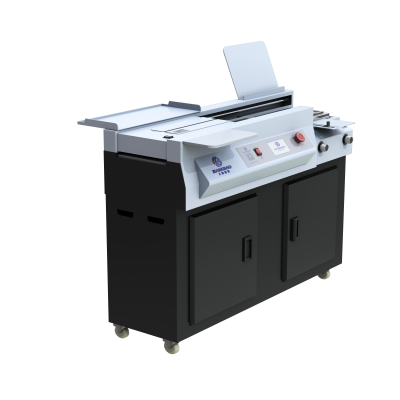

Shanghai Xiangbao XB-AR900H Economy Edition 2.0 Glue Binding Machine

Product Description: Machine Features

Introduction Humanized Design:

Integrated bookstand, easy to insert paper and improve work efficiency;

flip-top shelf for books saves space.

Guide Rail Design: This machine adopts an open guide rail design, making it convenient to insert the cover.

The guide rail uses multi-point support for smooth operation. With a diameter of up to 20mm, it is durable and resistant to deformation.

Milling Blade Section: Equipped with a 24-blade sun milling mode plus a small milling blade, ensuring that every page of the book is roughened without missing any pages, resulting in better gluing effects.

The V-shaped small milling blade made of tungsten steel is wear-resistant and has high affinity with glue, enhancing the penetration effect of the adhesive.

Glue Trough Section: Larger integrated glue trough with a larger capacity for glue reduces the frequency of adding glue during use, thereby improving work efficiency.

Color Touch Screen: More convenient operation; temperature can be directly input. Multiple buttons on the screen provide centralized control for greater convenience.

Clamping Table: Adopts vertical parallel lifting design to prevent uneven distribution of glue (one side more, one side less) and ensure stable binding results. Direct motor connection to the clamping table structure provides ample power.

Full-tooth clamping structure ensures even force distribution, and 2 sides 4 corners have good shaping effects.

Independent square and round corner adjustments can be made according to the thickness of the book to ensure that books, regardless of thickness, are bound with sharp corners and clear edges.

Technical Specifications:

Display Mode - 5-inch Color Touch Screen

Bookbinding Length - 320mm

Bookbinding Thickness - 60mm

Binding Speed - 320 books per hour

Milling Blade Method - 24-blade round milling plus small milling blade

Voltage/Power - 220V/1200W

Heating Time - ≥25 minutes

Net Weight - 190Kg

Machine Dimensions - 1220mm x 740mm x 1250mm

Gross weight ：220kg
Package size：1340*710*1090mm
