Digital high speed plotter machine for cardboard
- 100 Set / Sets per Month
- any port of China
- T/T Credit Card
- N Fold Hand Paper Towel Dispenser Packaging Machinery Manufacturer
- Hygiene Three Fold Hand Paper Towel Making Machine
- High Speed Laminating Z Folding Emboss Kitchen Paper Towel Machine
- Embossed Brand Name Z Fold Paper Hand Towel Making Machinery
- Hygiene N Folding Brand Name Towel Hand Paper Machine
- Health Care Laminating N Fold Hand Towel Paper Machinery
Product Details
Condition: | New | Product Type: | Other, plotter machine | Processing Type: | Cutting Machine |
Place of Origin: | Shanghai, China | Brand Name: | SPIC plotter machine | Model Number: | plotter machine, plotter machine |
Voltage: | 220v 50HZ | Power(W): | 5.5 KW | Dimension(L*W*H): | 2.2x1.86x1.18m |
Weight: | 800KG | Certification: | CE | Warranty: | 1 year, One year technical Support |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

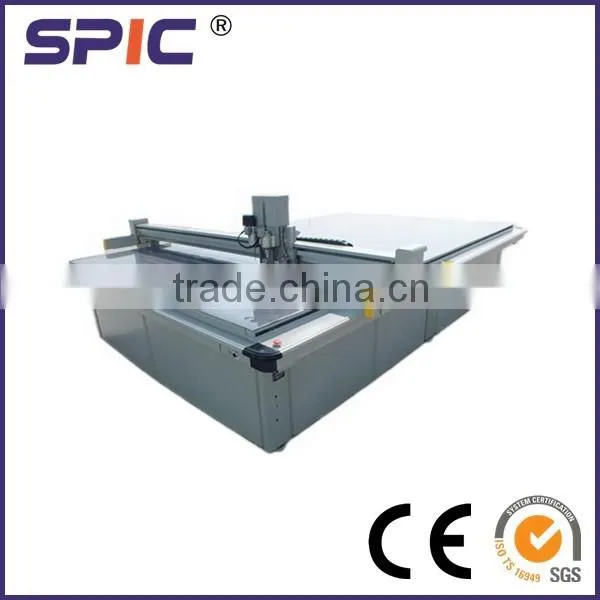

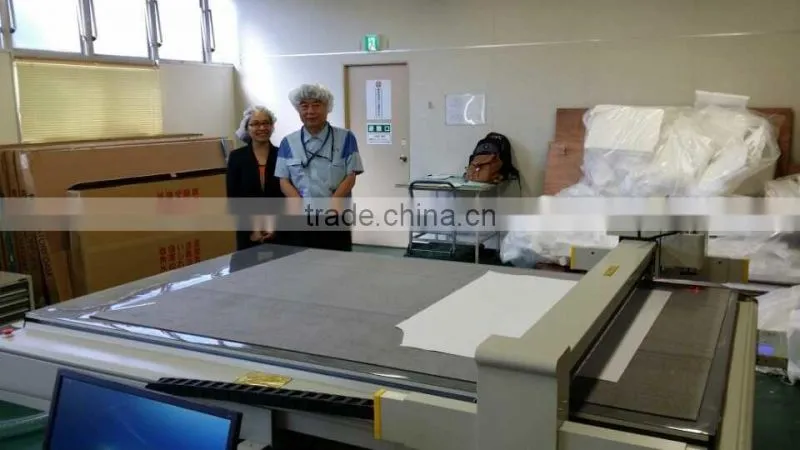

Digital high speed plotter machine for cardboard
High speed cutting plotter machine is the new developed cutting system for the industries as packaging, printing, ads, display etc.
Flatbed cutter plotter machine has two independent module design, very good expansibility and exchangeable tools.

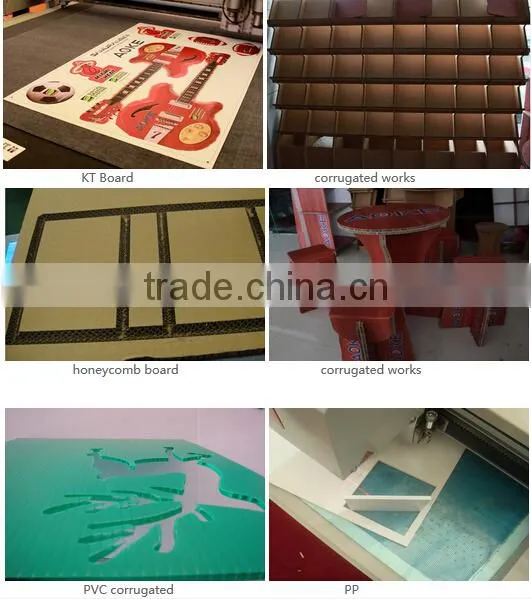

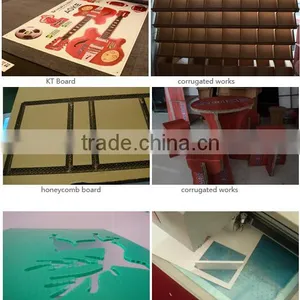

Cutting Plotter equips versatile tools as vibrating knife, creasing wheel, drag knife, V cut knife, which can cut the materials up to 60mm thick, and capable with many kind of materials such as corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion.
Flatbed cutting plotter machine takes the whole new table design of steel frame and the table vacuum zone, which enables the stronger suction and more stable mechanical properties. Thanks to the auto tool height system, it makes the machine smarter, just by pressing one key then the tool depth can be set automatically, therefore avoid the overcut of the table.
Main features: cutting plotter cutting plotter
· New steel frame design, more stable of machinery
·Auto tool height make the tool settings more convenience
·Cutting depth up to 60mm thickness, cover the major materials.
·Two independent module, exchangeable tools.
·New vacuum zone, stronger suction
Specitications:
Model | DCZ516 | DCZ713 | DCZ310 |
Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000mm |
Configuration | Oscillating knife,pen,creasing tool,drag knife, foam tool, v cut tool | ||
Max aped | 1400mm/s | ||
Smallest cutting diameter | 6mm | ||
Maximum cutting thickness | 60mm | ||
Control line and driver | Servo | ||
Precision | ≤0.1mm | ||
Vacuum | 5.5kw | ||
Data form | HPGL,DXF,PDF | ||
Voltage | 220v±10% 50Hz | ||
Data port | parallel port,serial port,USB port | ||
Data Transmission speed | 10MB/s | ||
Input cushion area | 32MB | ||
Occupy dimension(L*W*H) | 3400*2460*1400mm | 2600*2160*1400mm | 2200*1860*1400mm |
Note | Other size can be customized. |
Note: Machinde sizes can be customzied according to customers.
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
