PP Water Cartridge Spun Filter Production Line - ISO9001 CE
- 3 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ANGE | Model Number: | UAC-1 |
Product Description
ANGE is a professional manufacturer producing pp melt blown/spun filter making machine. We have independent research department to design and we excel at making new products according to clients’ special requirement.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
·Technical Support:
Mr. Xia- with 20 years’ experience in machine design and especially good in plastic extruding industry
Mr. Wen- with 15 years’ experience in filter making factory and can make all the filters you want
Mr. Chao- with 30 year's experience in designing PP string wound filter cartridge making machines

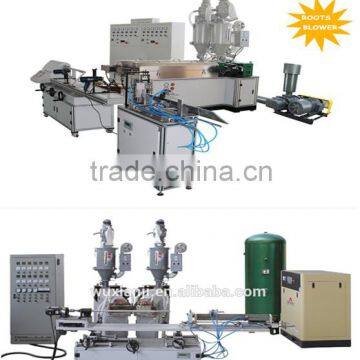

·PP Melt Blown Filter Cartridge Machine (UAC-1):
1 PP melt blown filter cartridge (UAC-1) production line includes:
1 Extruder; 1 Mold; 1 Atuo feeder; 1 Air Heater;
1 Air Compressor with power; 1 Air Tank;
1 Receiving Machine&Auto Center; 1 Small Controller;
1 Cleaning Machine for cleaning the mold.
AS WELL AS (Optional)
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Performance Parameters of the 1 Extruder Machine(UAC-1)
Name | PP melt blown filter cartridge |
Mode | UAC-1 |
Total Installed Power | 30KW |
Actual Running Power | 15~20KW |
Output |
2000~2500pcs/day |
Raw Material | 100% New Polypropylene |
Internal Diameter | 28mm default (free to customize) |
Outer Diameter | 38~120mm (free to customize) |
Length | 5",10",20",30",...(free to customize) |
Filter Precision | 1μm,3μm,5μm,8μm,10μm,13μm,15μm ~100 μm |
Surface of Filter | Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage | 3 Phase 380V and1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight | Before Packing: 2.5~3T After Packing: 4T |
·After-sales Service:
We provide 2 years warranty;
and our engineers will be available to overseas.
**We will also provide unlimited long-term technical guide by email or skype.
For Training:
**We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still demand.
