PP Spun filter cartridge making machine/PP Melt Blown Filter Cartridge Making Machine
Hot sale pp spun filter cratridge making machine product line from WUXI ANGE is a machine that used to produce pp spun filter cartridges, the principle of this machine is as below:
There are two kinds of Hot sale pp spun filter cratridge making machine product line from WUXI ANGE, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank.
Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp material is melting by heater through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the hot air will blow the liquid polypropylene materials through the Mold (with hundreds of small holes in the nozzle), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.
Differences between PP melt blown/meltblown/spun filter cartridge making machine/ production line with Roots Blower and machine with Air compressor and air tank
|
Roots Blower type PP melt blown/meltblown/spun filter cartridge making machine/ production line |
Air compressor and air tank type PP melt blown/meltblown/spun filter cartridge making machine/ production line |
| Could install variable frequency system | Could install variable frequency system |
| Itself could pre-heat the air to be 80~90 degree and to some extent it saves heating energy | Can NOT pre-heat the air |
| Maintenance fee is cheaper | Maintenance fee is costly |
|
Air Displacement 6.32m³ /min; Air Pressure: 0.8kgf/cm² Thus, roots blower uses wind power to blow the liquid pp into pp fiber/silk and by control this to change the diameter of pp fiber; Another difference, we think using roots blower is more saving heating electricity fee, because the air from roots blower has already been 80~90℃before it enters into the air heater(normally it needs to arrive 230℃ and keep). That’s why it saves power in air heating. |
Air Displacement 5.0m³ /min; Air Pressure: 0.8Mpa ≈ 8.15kgf/cm²(1Mpa=1000000Pa) Thus, and air compressor uses air pressure to blow the liquid pp into pp fiber/silk and by control this to change the diameter of pp fiber; Some customers think it is easier to control the air pressure of air compressor to change the diameter of pp fiber which is an important factor to affect pp filter micro. While in our experience both machines can make filter micro from 0.05micro to 100micro. But if you choose our air compressor type, our air heater for air compressor could arrive 230℃in only 10minutes and then temperature never change and very stable. |
Parameters of 2e2m pp spun filter cartridge making machine/pp melt blown filter making machine:
Name |
PP melt blown filter cartridge |
Mode |
UAC-3 |
Total Installed Power |
55KW |
Actual Running Power |
35~40KW |
Output |
145~208pcs/hour 3500~5000pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Around 4T |
2016 PP melt blown/meltblown/spun filter cartridge making machine/ production line includes:
1. Auto feeder: This is used to deposit the pp raw material
2. Controller: This is used to provide electricity and show the temperature and adjust the speed
3. Extruder: This is used to melt the pp raw material into liquid pp.
4. Mold: This is used to make the liquid pp blowed out of the small holes in the mold and then liquid pp comes into the pp fiber under the hot air flow(the air flow comes out from air heater), The air heater in installed under the extruder.
5/6.Air compressor or roots blower: This is used to provide pressure and air flow, we call this air pressure driven system
7. Inside air heater: This is used to heat the air from roots blower or air compressor

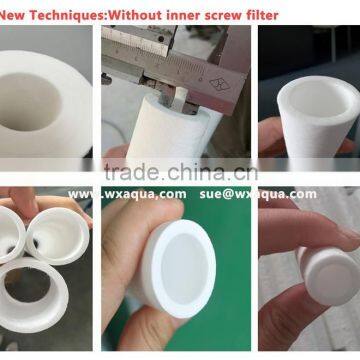

2016 New Techniques-PP Spun Filter Cartridge/Melt Blown Filter cartridge Without Inner Screw
Different Kinds of surfaces:
Certificates:
Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements
Training: 2 solutions
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.
After-sale Services
Two-years warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
Engineers can speack English very well.
Wuxi ANGE Environmental Technology Ltd, located in WUXI, is an ISO 9001 company with an independent CNC center. We excel at producing CE certificated high quality PP spun/melt blown filter cartridge making machine, pp string wound filter production line/CTO active carbon block filter production line/PP melt blown nonwoven fabric production line. Both sales department and R&D department are bachelor degrees, who can promise perfect English service and technical support overseas. We have more than 20 years’ experience in machine design. Welcome to pay a field inspection to our factory and check the excellent machines yourself!

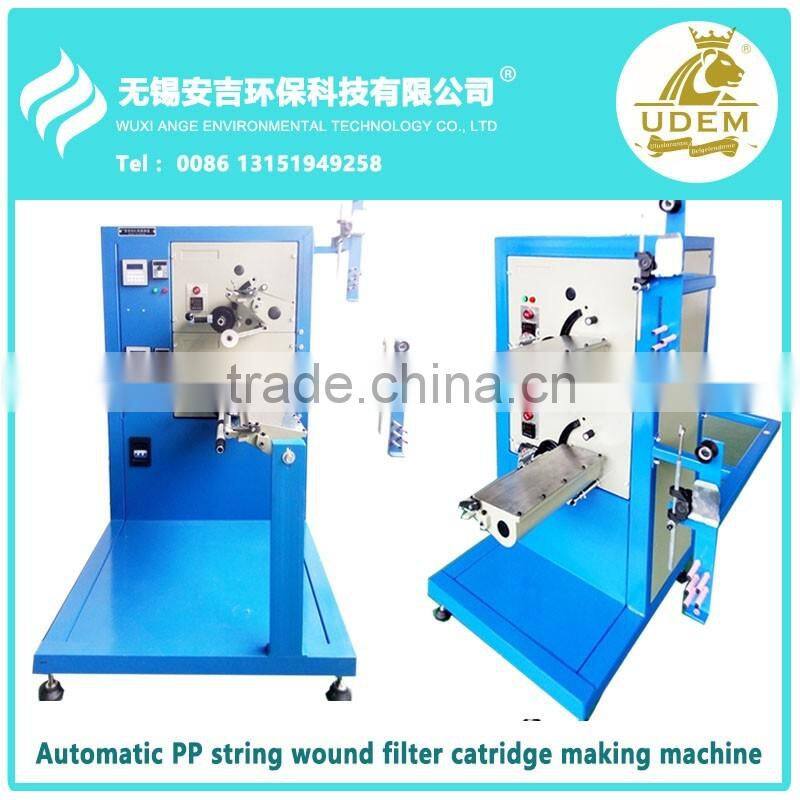

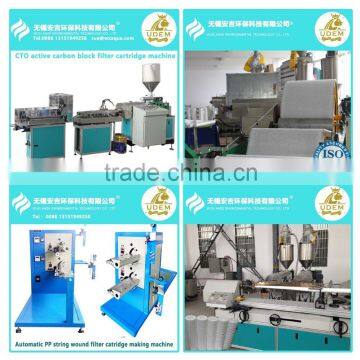

Other machines we also provide: PP string wound filter cartridge machine

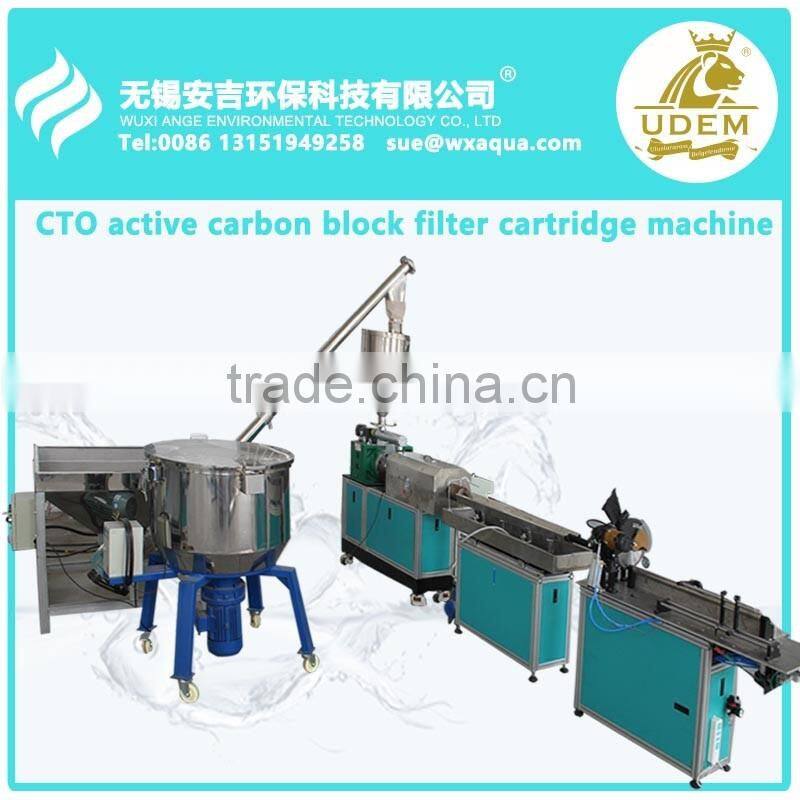

CTO active carbon block filter machine:
If you want more information, feel free to contact us at your time,Thanks
