·Our Company:
ANGE is a professional manufacturer producing pp melt blown/spun filter making machine. We have independent research department to design and we excel at making new products according to clients’ special requirement.
Our clients are full of the world: India, Iran, Egypt, Taiwan, Ukraine, Turkey, Pakistan, and Thailand…
·Technical Support:
Mr. Xia- with 20 years’ experience in machine design and especially good in plastic extruding industry
Mr. Wen- with 15 years’ experience in filter making factory and can make all the filters you want
Mr. Chao- with 30 year's experience in designing PP string wound filter cartridge making machines

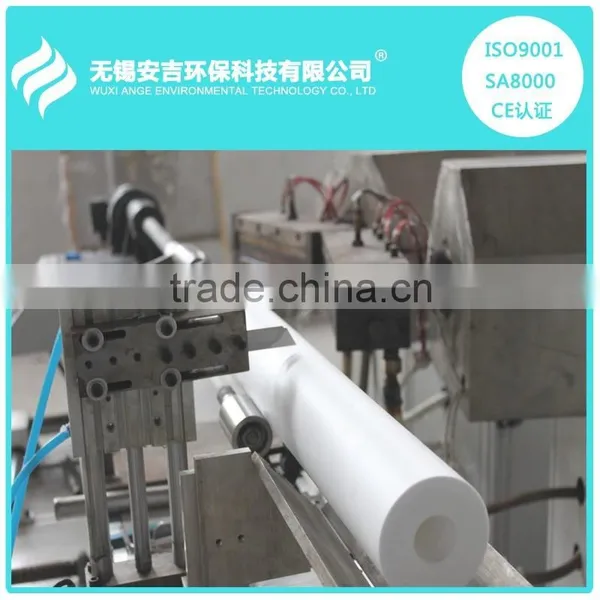

·PP Melt Blown Filter Cartridge Machine (UAC-3):
1 PP melt blown filter cartridge (UAC-3) production line includes:
3 Extruders; 3 Molds; 3 Auto feeders; 3 Air Heaters;
1 Air Compressor with power; 1 Air Tank;
1 Receiving Machine&Auto Center; 1 Small Controller;
1 Cleaning Machine for cleaning the mold.
AS WELL AS
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Performance Parameters of the 3 Extruders Machine(UAC-3)
Name |
PP melt blown filter cartridge |
Mode |
UAC-3 |
Total Installed Power |
62KW |
Actual Running Power |
35~40KW |
Output |
208~270pcs/hour 5000~6500pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Around 4T |
· Newly Designed Feature:
--Our machine allows large output, arrving at 208~270pcs/hour, equal to 5000~6500pcs/day
(refer to 10” filters).
**Massive capacity is extremely helpful to those large-scale industries.
--Due to the mode UAC-3, we supply 3 extruders and 3 molds. According to this design, our machine can produce filters with 3 micro.

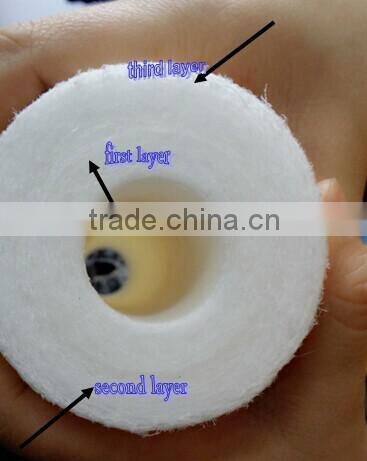

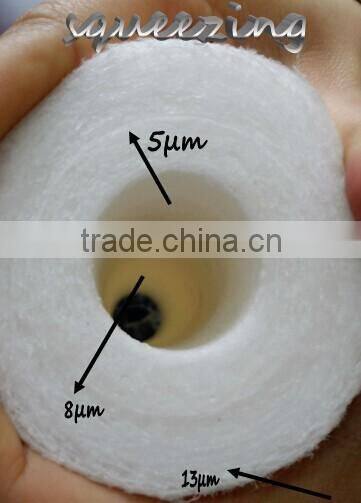

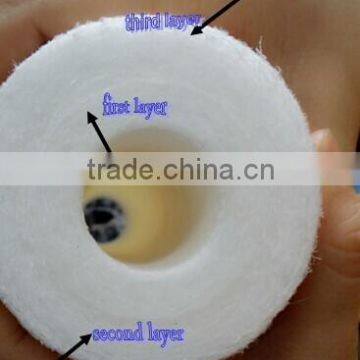

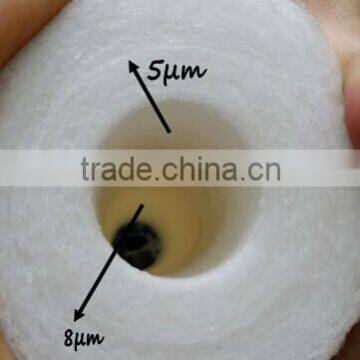

Here are pictures of our end-products made from PP Melt Blown Filter Cartridge Making Machine(UAC-3). We stand for high quality, as the comparison of filter's being squeezed and not is shown in the picture.
|
|
--Flexibility for production
It is rather convenient for you, if you want another production line. You can possibly change the composition of the machine. 1 Extruder&1Mold, 2E&2M, 3E&3M models are all available.
·Spare Parts We Supply For Free:
Heating loop inside of extruders |
8pcs |
Sensor |
5sets |
Heating pipe inside of air heater |
2pcs |
Bearing |
2pcs |
Temperature controller |
3pcs |
Blade |
20pcs |
Button |
2 each |
Heating Gun |
1 set |
Porcelain bead and line |
some |
Solid-state relay |
2pcs |
|
Water-oil separator for screw compressor |
1 set |
Machine-oil filter for screw compressor |
1 set |
Air filter for screw compressor |
1 set |
Insulated Pipe |
2pcs |
Needles |
40pcs |
Insulated asbestos |
some |
Filter Screen/Net |
1 set |
|
|
·After-sales Service:
We provide 1 year warranty;
and our engineers will be available to overseas.
**We will also provide unlimited long-term technical guide by email or skype.
For Training:
--We could train your delegates(1~3person) for 7~14 days until your colleagues have known how to operate by themselves. We are responsible for eating.
--One of our engineers will go to our factory to install and teach your operators 7~10 days. Your company shall prepare air tickets(go and back) &hotel &eating when he is working and total salary is $1000.
**We suggest customers study at our factory firstly, and then our engineer goes to your factory if you still demand.
