2E&2M PP Spun Filter Cartridge Making Machine/PP Melt Blown Filter Cartridge Machine:
|
Type
|
Running power
|
The raw material
|
Production capacity
|
Weight of filter cartridge
|
1E&1M |
15~20Kw |
pp(Polypropylene) |
1800-2500pcs/24h |
90-180g(adjustable) |
2E&2M |
30~35kw |
PP(Polypropylene) |
3800-4500pcs/24h |
90-180g(adjustable) |
3E&3M |
40~50kw |
PP(Polypropylene) |
4800-6000pcs/24h |
90-180g(adjustable) |
PP melt blown/meltblown/spun filter cartridge making machine/ production line is a machine that used to produce pp melt blown/meltblown/spun filter cartridges which are widely used both in household water filter production.

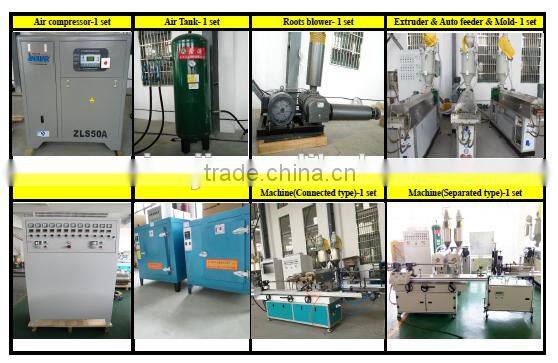

There are two kinds of PP melt blown/meltblown/spun filter cartridge making machine/ production line, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank.
The working principal:

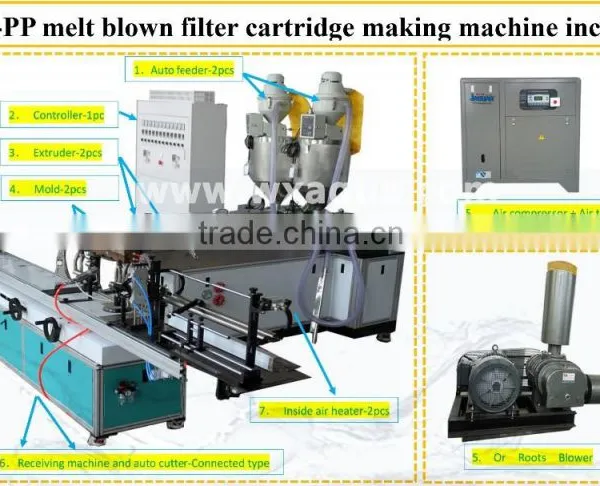

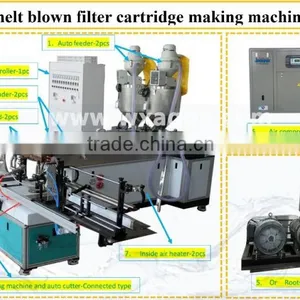

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle ofWinding Device. Winding Device rotates and forms filter cartridges. Then formed pp melt blown filter get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.
Differences between PP melt blown/meltblown/spun filter cartridge making machine/ production line with Roots Blower and machine with Air compressor and air tank
|
Roots Blower type PP melt blown/meltblown/spun filter cartridge making machine/ production line |
Air compressor and air tank type PP melt blown/meltblown/spun filter cartridge making machine/ production line |
| Could install variable frequency system | Could install variable frequency system |
| Itself could pre-heat the air to be 80~90 degree and to some extent it saves heating energy | Can NOT pre-heat the air |
| Maintenance fee is cheaper | Maintenance fee is costly |
Parameter
| Name | PP melt blown/meltblown/spun filter cartridge making machine/ production line |
| Mode | URB-2 |
| Total Installed Power | 54 KW |
| Actual Running Power | 30-45 KW |
| Output | 3500~4500pcs/day (refer to 10” filters) |
| Raw Material | 100% New Polypropylene |
| Internal Diameter | 28mm default (free to customize) |
| Outer Diameter | 38~120mm (free to customize) |
| Length | 5",10",20",30",...(free to customize) |
| Filter Precision | 1-100 micron |
| Filter Surface |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Line Surface(extra tool) Groove Surface (grooving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
| Default Voltage |
3 Phase 380V or; If you need other voltage, extra $500 shall be charged. |
| Machine Weight | 2.6-3.5T |
| Operation Area | 50m2(L*W)*3m (H) or above |
| Container Size | 8~10 wooden boxes and use 20’’ container |
