Product Description

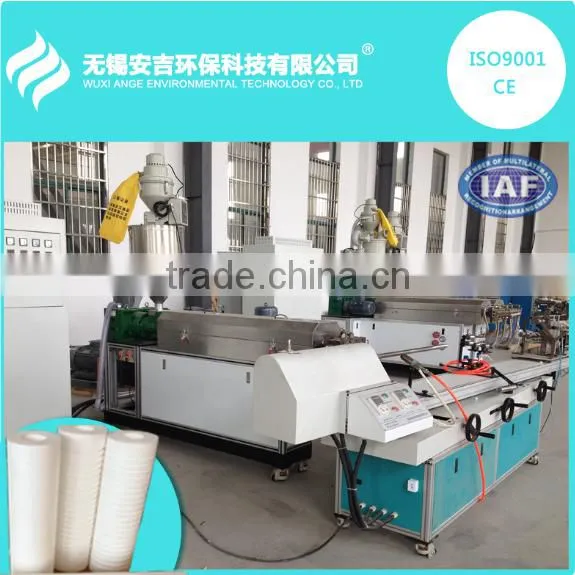

PP melt blown/meltblown/spun filter cartridge making machine/ production line is a machine that used to produce pp melt blown/meltblown/spun filter cartridges which are widely used both in household water purifier and industrial wastewater pretreatment. And the principle of this machine is as below:
There are two kinds of PP melt blown/meltblown/spun filter cartridge making machine/ production line, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank. Whatever both principle is similar as below:

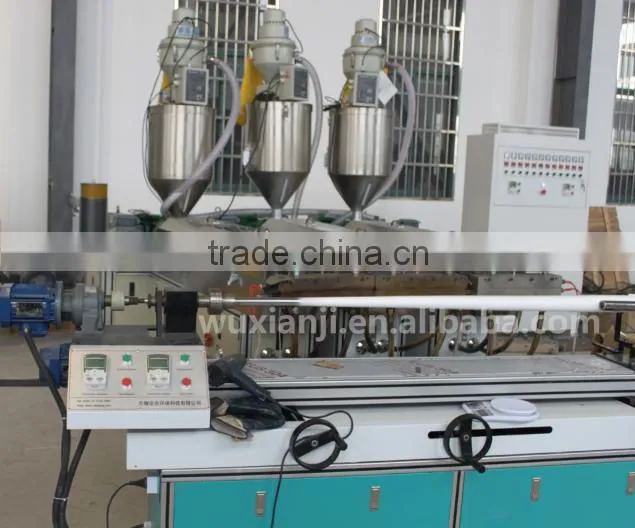

Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed pp melt blown filter get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.
1E1M PP melt blown/meltblown/spun filter cartridge making machine/ production line includes:
1 Extruder;
1 Mold;
1 Auto feeder;
1 Air Heater;
1 Roots blower with inventer;
1 Air Tank;
1 Receiving Machine& Auto Center;
1 Small Controller;
1 Cleaning Machine for cleaning the mold.
Differences between PP melt blown/meltblown/spun filter cartridge making machine/ production line with Roots Blower and machine with Air compressor and air tank
|
Roots Blower type PP melt blown/meltblown/spun filter cartridge making machine/ production line |
Air compressor and air tank type PP melt blown/meltblown/spun filter cartridge making machine/ production line |
| Could install variable frequency system | Could install variable frequency system |
| Itself could pre-heat the air to be 80~90 degree and to some extent it saves heating energy | Can NOT pre-heat the air |
| Maintenance fee is cheaper | Maintenance fee is costly |
|
Air Displacement 6.32m³ /min; Air Pressure: 0.8kgf/cm² Thus, roots blower uses wind power to blow the liquid pp into pp fiber/silk and by control this to change the diameter of pp fiber; Another difference, we think using roots blower is more saving heating electricity fee, because the air from roots blower has already been 80~90℃before it enters into the air heater(normally it needs to arrive 230℃ and keep). That’s why it saves power in air heating. |
Air Displacement 5.0m³ /min; Air Pressure: 0.8Mpa ≈ 8.15kgf/cm²(1Mpa=1000000Pa) Thus, and air compressor uses air pressure to blow the liquid pp into pp fiber/silk and by control this to change the diameter of pp fiber; Some customers think it is easier to control the air pressure of air compressor to change the diameter of pp fiber which is an important factor to affect pp filter micro. While in our experience both machines can make filter micro from 0.05micro to 100micro. But if you choose our air compressor type, our air heater for air compressor could arrive 230℃in only 10minutes and then temperature never change and very stable. |
Some supporting machines for PP melt blown/meltblown/spun filter cartridge making machine/ production line
Parameter
| Name | PP melt blown/meltblown/spun filter cartridge making machine/ production line |
| Mode | URB-1 |
| Total Installed Power | 30 KW |
| Actual Running Power | 15-20 KW |
| Output | 1500~2000pcs/day (refer to 10” filters) |
| Raw Material | 100% New Polypropylene |

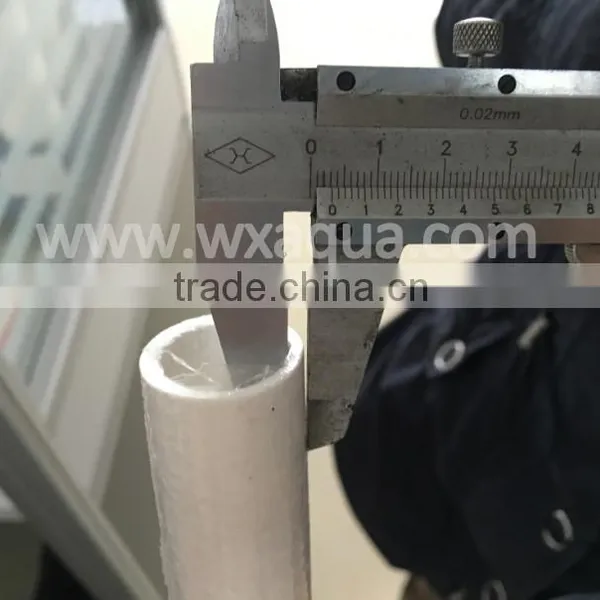

| Internal Diameter | 28mm default (free to customize) |
| Outer Diameter | 38~120mm (free to customize) |
| Length | 5",10",20",30",...(free to customize) |
| Filter Precision | 1-100 micron |
| Filter Surface |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Line Surface(extra tool) Groove Surface (grooving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
| Default Voltage |
3 Phase 380V or; If you need other voltage, extra $500 shall be charged. |
| Machine Weight | 2.6-3.5T |
| Operation Area | 50m2(L*W)*3m (H) or above |
| Container Size | 8~10 wooden boxes and use 20’’ container |
We are also a without inner screw filter making machine provider. If you want to know the machine, kindly contact us for more details.
CE and ISO 9001 Certificates
Training: 2 solutions
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.
After-sale Services
One-year warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
If you have any questions, our engineers are always available to give a comprehensive answer with their 30-year experience in filter making industry.
Our engineers can speak well English.
Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements
Company Profile

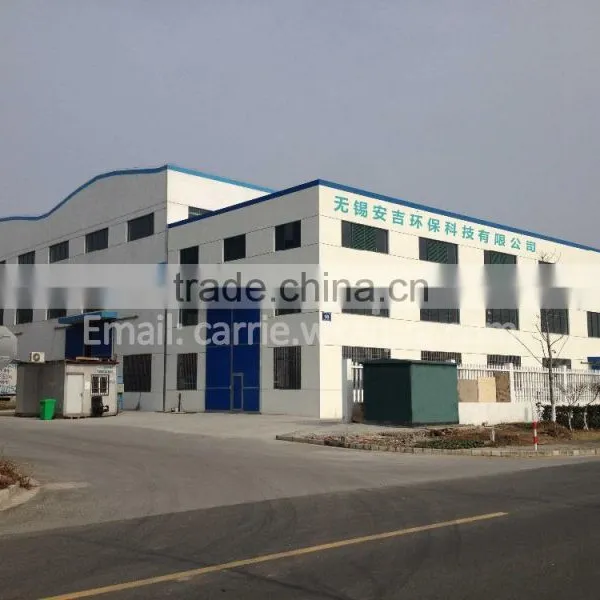

Wuxi ANGE Environmental Technology Company Limited is a professional manufacturer specializing in full automatic PP melt blown filter cartridge making machine. We excel at PP Melt Blown Filter Making Machine, PP string wound filter making machine, CTO active carbon block filter making machine and PP non woven fabric making machine with 20 years’ experience in machine design and filter making factory. We value the quality and the cost for clients very much, as well as providing unlimited long-term technical guide by email or Skype. It is our supreme honor to have clients in our factory for a visit. Customers around the world are always welcome with extreme hospitality.
We at AQUATECH CHINA. WELCOME TO VISIT US AT AQUATECH CHINA EVERY YEAR!
We are also a manufacturer of :
1. PP string wound filter making machine
2. CTO active carbon filter making machine

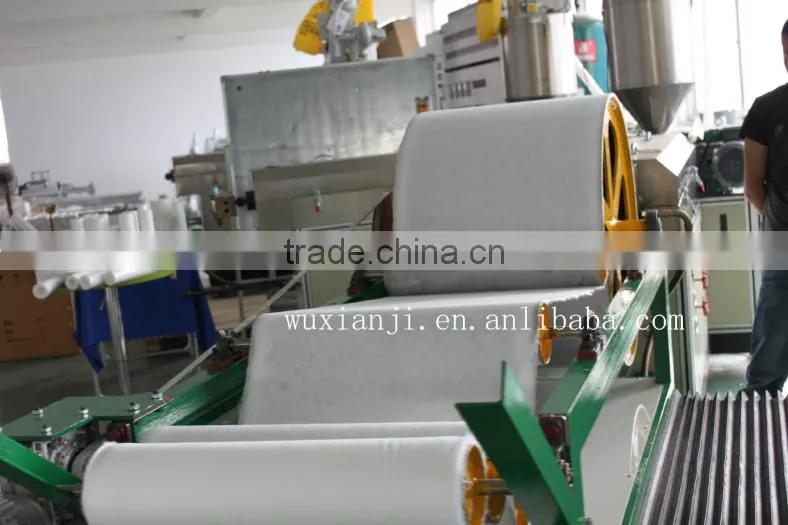

3. PP melt blown nonwoven fabric making machine
If you are interested in any machines mentioned above, kindly please let us know.
