PP Spun Filter Cartridge Making Machine for Water Treatment
- 30 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | ANGE | Model Number: | 2E2M, URB-2 |
Product Description
Company profile
Wuxi ANGE Environmental Technology Company Limited is found in 2000with 1,000,000 RMB registered capital. We are an ISO cerfiticated manufacturer specializing in PP Spun Filter Cartridge Making Machine for Water Treatment, pp string wound filter making machine, CTO active arbon filter making machine, and PP melt blown nonwoven fabric making machine with 20 years' experience in machine design and filter making. Our clients are full of the world: USA, Japan, Korea, Singapore, Thailand, Russia, Malaysia, Iran, Egypt, Taiwan, Ukraine, Turkey, Brazil, Argentina, and Indonesia...
Welcome to visit our factory and check the excellent machines by yourself. Let's together contribute to build a brilliant environment protection industry!
Machine Introduction

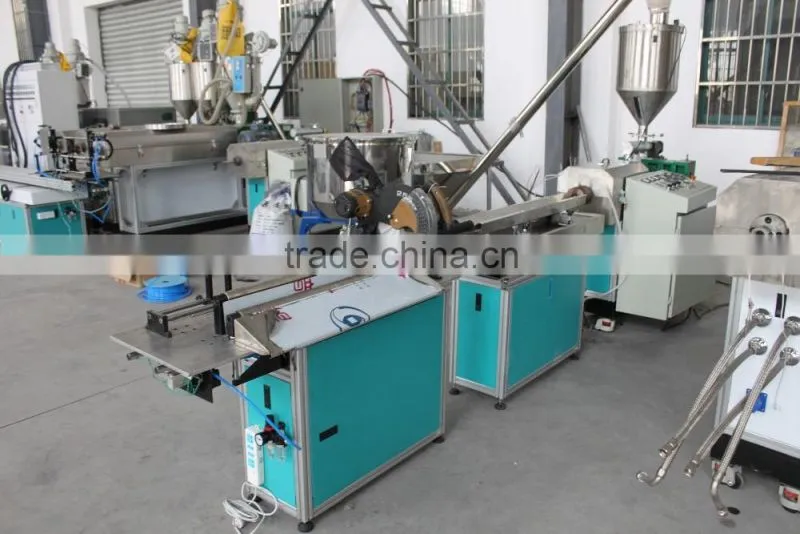

PP Melt Blown Filter Cartridge Making Machine is a machine that used to produce pp melt blown filter cartridges which are widely used both in household water purifier and industrial wastewater pretreatment. And the principle of this equipment is as below:
There are two kinds of PP Melt Blown Filter Cartridge Making Machine, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank. Whatever both principle is similar as below:
Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle of Winding Device. Winding Device rotates and forms filter cartridges. Then formed filter cartridges get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement.
2E2M PP Melt Blown Filter Cartridge Making Machine includes:
Differences between PP Melt Blown Filter Cartridge Making Machine with Roots Blower and machine with Air compressor and with air tank
If you want to know more about the differences of two machines, please feel free to contact us.
Parameter
Name | PP melt blown filter cartridge making machine/ PP spun filter making machine |
Mode | URB-2 |
Total Installed Power | 54 KW |
Actual Running Power | 30-40 KW |
Output | 3500~4800pcs/day (refer to 10” filters) |
Raw Material | 100% New Polypropylene |
Internal Diameter | 28mm default (free to customize) |
Outer Diameter | 38~120mm (free to customize) |
Length | 5",10",20",30",...(free to customize) |
Filter Precision | 0-20 micron |
Filter Surface | Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (grooving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage | 3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight | 2.6-3.5T |
Operation Area | 50m2(L*W)*3m (H) or above |
Container Size | 8~10 wooden boxes and use 20’’ container |
In 2016, we design a new machine which can produce non inner screw filters. Filter thickness can be minimum 3mm.
Supporting Machines for PP Melt Blown Filter Cartridge Making Machine
If you want to know more information about PP Melt Blown Filter Cartridge Making Machine, please feel free to contact us.
Training: 2 solutions
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.
After-sale Services
One-year warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
If you have any questions, our engineers are always available to give a comprehensive answer with their 30-year experience in filter making industry. Our engineers can speak well English.
2. CTO active carbon filter making machine
3. PP non woven fabric making machine
If you are interested in any machines mentioned above, kindly please let me know.
