PP melt blown/meltblown/spun filter cartridge making machine/ production line is a machine that used to produce pp melt blown/meltblown/spun filter cartridges which are widely used both in household water purifier and industrial wastewater pretreatment. And the principle of this machine is as below:
There are two kinds of PP melt blown/meltblown/spun filter cartridge making machine/ production line, one is adopting roots blower as the pressure –driven system; the other is using air compressor with air tank. Whatever both principle is similar as below:
Auto Feeder feeds 100% new drawing class polypropylene into Extruder. Then pp materials are melt by heating through Extruder. Roots Blower or Air Compressor and Air Tank blows the air into Air Heater and then the heated air will blow the liquid melted polypropylene materials through the Nozzle Heads (with hundreds of small holes in the mold), and finally threaded materials arrive at the spindle ofWinding Device. Winding Device rotates and forms filter cartridges. Then formed pp melt blown filter get off the spindle and reach to Auto Cutter. Auto Cutter cuts them according to the required length upon customers’ requirement
spun filter cartridge machine/pp cartridge filter machine/water filter making machine

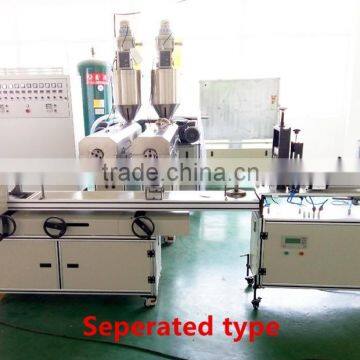

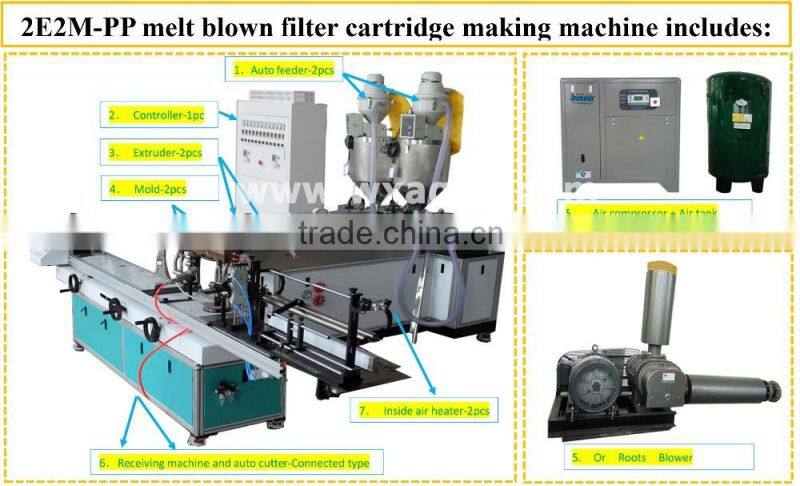

2E2M PP melt blown/meltblown/spun filter cartridge making machine/ production line includes:
2 Extruder;
2 Mold;
2 Atuo feeder
2 Air Heater;
1 Roots Blower;
1 Auto Dryer Blower
1 Receiving Machine & Auto Center;
1Large Controller
1 Cleaning Machine for cleaning the mold.
1 Grooving Machine: make grooves on surface of PP cartridge (10" length of PP cartridge)
1 Carving Machine: make dots or keyholes on surface of PP cartridge
1 Dryer Blower: make orange peel on surface of PP cartridge
Parameters of 2e2m pp spun filter cartridge making machine/pp melt blown filter making machine
Name |
Hot sale pp spun filter cratridge making machine product line from WUXI ANGE |
Mode |
URB-2E2M |
Total Installed Power |
55KW |
Actual Running Power |
35~40KW |
Output |
145~208pcs/hour 3500~5000pcs/day (refer to 10” filters) |
Raw Material |
100% New Polypropylene |
Internal Diameter |
28mm default (free to customize) |
Outer Diameter |
38~120mm (free to customize) |
Length |
5",10",20",30",...(free to customize) |
Filter Precision |
1μm,3μm,5μm,8μm,10μm,13μm,15μm |
Surface of Filter |
Smooth Surface (extra tool) Orange Peel Surface (extra tool) Micro-grooving Surface(extra tool) Groove Surface (groving machine) Dotted Surface (extra tool) Logo on Surface (carving machine) |
Default Voltage |
3 Phase 380V or; 1 Phase 220V If you need other voltage, extra $500 shall be charged. |
Machine Weight |
Around 4T |

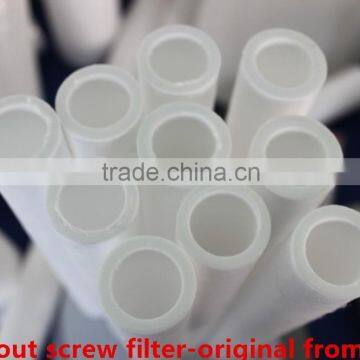

2016 New Techniques-PP Spun Filter Cartridge/Melt Blown Filter cartridge Without Inner Screw

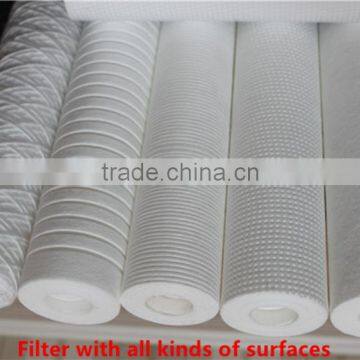

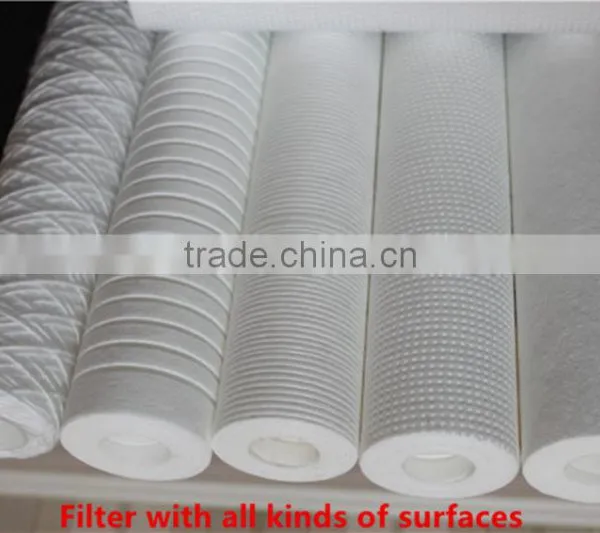

Different Kinds of surfaces
Certificates: We have passed CE and ISO 9001

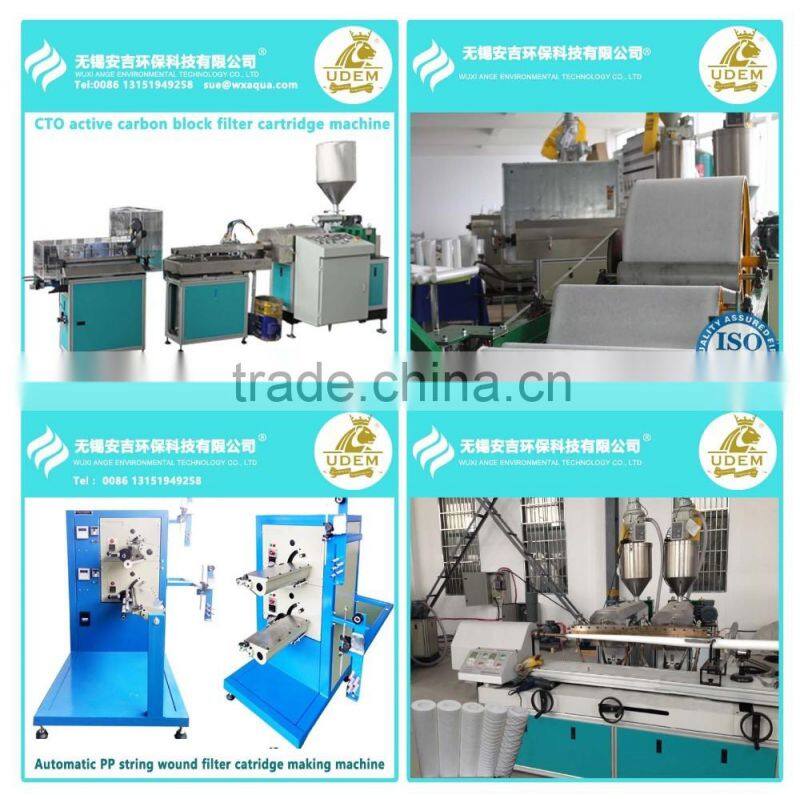

Related water filter machine:
PP melt blown filter cartridge machine:
Pp string wound filter cartridge making machine:
CTO active/activated carbon block filter cartridge machine:
PP melt blown nonwoven fabric machine:
Packaging & Shipping
Every part is packed by plastic film, and all are packed in wooden case.
Shanghai Port is our usual choice, but other ports are available due to your requirements
Training: 2 solutions
1. Welcome to stay in our factory for a long-term training 7~14days until you master all the skills.
2. We provide an installing and training service to your factory in 7~14days until you master all the skills and you should take care of the plane ticket, hotel and living cost during this time.
After-sale Services
Two-years warranty is ensured. We provide new parts (except easy-wear parts) for free if your machine is broken without human factor.
our Engineers can speak English very well.
Welcome to visit our factory and check the excellent machines by yourself. Let's together contribute to build a brilliant environment protection industry!
We have attended Aquatech Shanghai for many years.
If you want to know more information, please feel free to contact us.
