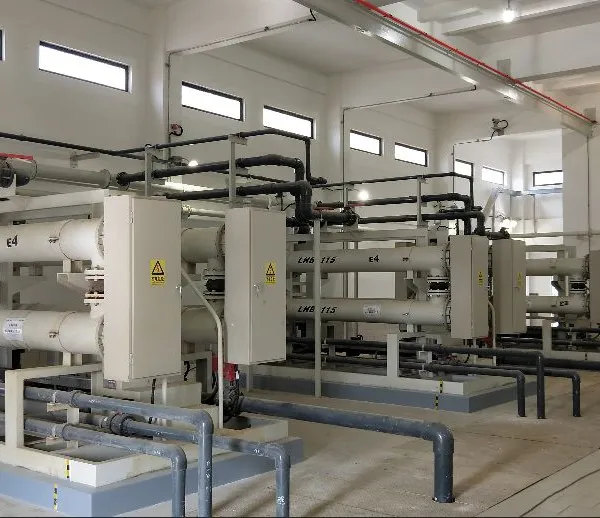

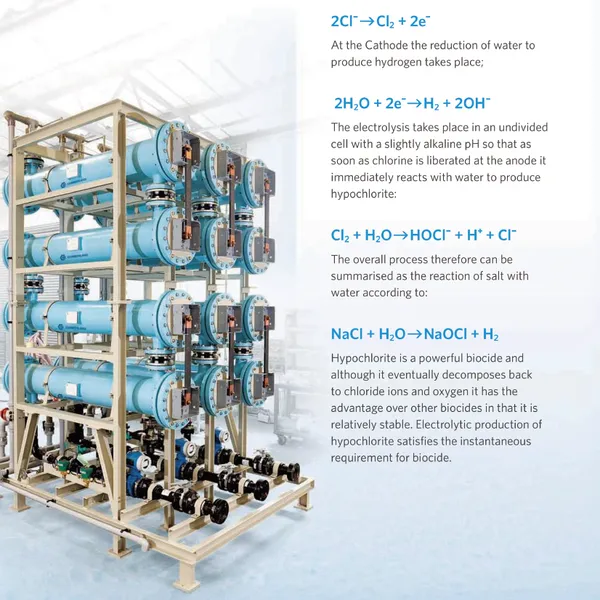

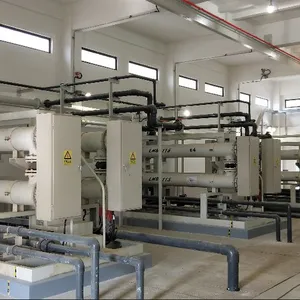

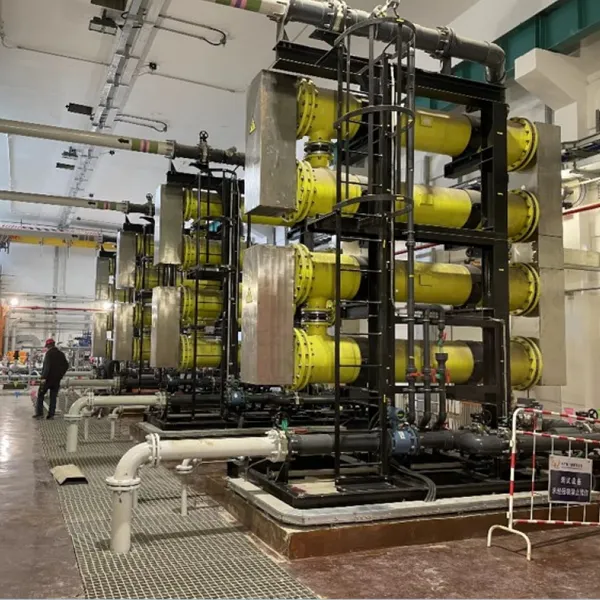

The BLUEWAV® offshore electrolytic seawater chlorine production systems are basically skid-mounted and integrated. The complete system adopts a pickling-free concentric circular tube (CTE) electrolytic cell, which can avoid the use of hydrochloric acid in the offshore state and eliminate the tube-sheet electrolysis. Troubles and worries caused by pickling of tanks and hydrochloric acid storage. Same as Denora DSA and Sunray, can replace electrolyzers from Denora and Sunray
Special designs can be provided according to the relevant design standards and certification requirements of third-party certification bodies such as DNV-GL, BV, ABS, etc. For details, please consult our engineer for more information.
Please consult our engineer for equipment details.
Application
- Petrochemical
Offshore platform
- Ship
Ballast tank water treatment
Subsea storage water treatment
Electrolyzer form: Bipolar – Concentric tube
Accessories material : ABS (or PVC), EPDM and titanium
Anode substrate: Titanium ASTM B 338 GR.1 or 2
Anode coating : Rare Metal Oxide (MMO)
Cathode substrate: Titanium ASTM B 338 GR.1 or 2
Cathode coating N / A
Bipolar titanium tube substrate: Titanium ASTM B 338 GR.1 or 2
Bipolar titanium tube anode coating Rare Metal Oxide (MMO)
Seawater flow : ≥5.6 m3/Hr
Design liquid temperature of electrolyzer: 5 to 55 degrees Celsius
Ambient temperature of electrolyzer design : 0 to 85 degrees Celsius
Design pressure of electrolyzer 10 Bar
