Electrical Loading AC250V 10A Liquid Flow Switch

1.About us

Keram(Nanjing) Controls & Equipments Co;,Ltd. Was founded in 2000,a professional manufacturer and supplier of controls equipment and products design. Our products are related to gas safety control,temperature control,time control,over-heating control, pressure and temperature controls used on refridgeration and compressor,water pressure switch and all kinds of solenoid valves and safety valves.

 New Building Of Keram Controls

keram control add more high precision CNC machine to improve product reliability and efficiency

2.Description

•  L series liquid flow switch is used to monitor the flow change
•  Renovated SPDT micro-switch ensure the reliable switch function
•  Max temperature of medium 120℃
•  Liquid pressure up to 1Mpa
•  3 stainless steel blades for diameter of 25-75mm pipeline
•  6 additional blades for 100-150mm pipe
•  Protection type IP54
•  Various connections are available on request
•  Max working pressure 13.5Bar
•  Electrical loading AC250V 10A
•  CE approval.

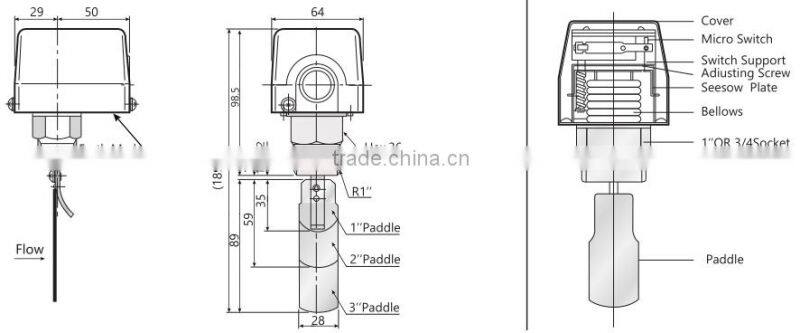

3.Dimensions(mm)                                                                                                  Structure

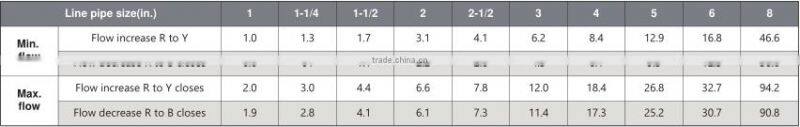

4.Liquid Flow Rate Table

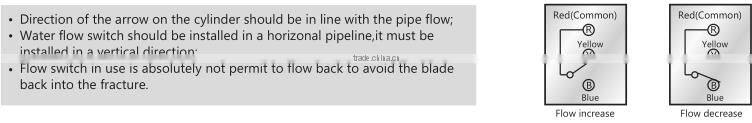

5.Installation                                                                                                  Contact Function

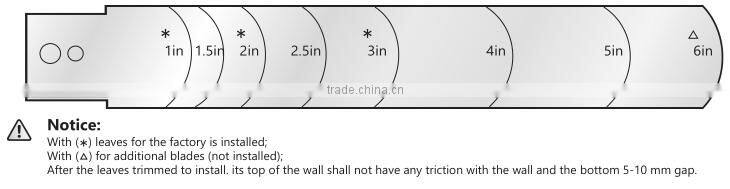

6.Trimming of the Paddle

7.Model Specification

8. Product Process & Package
