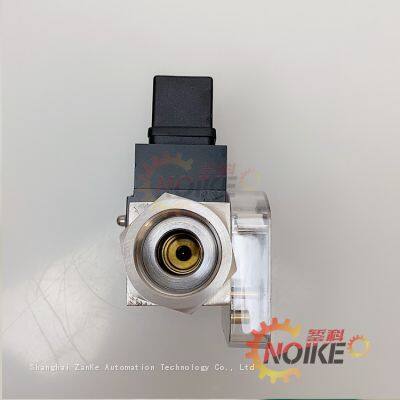

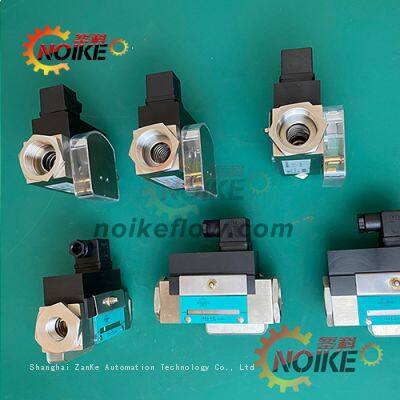

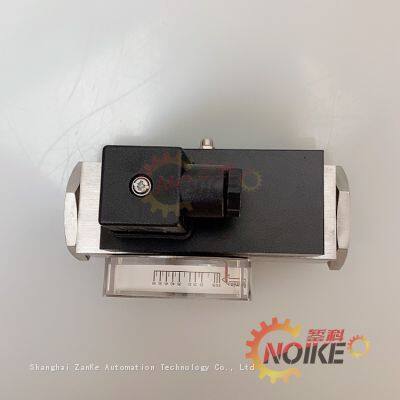

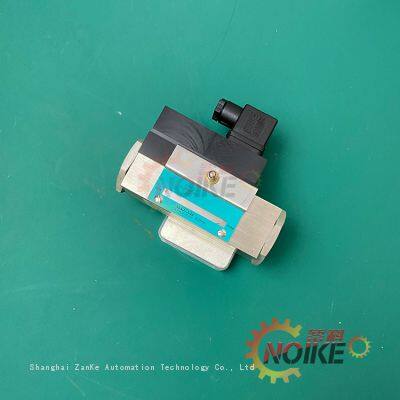

NOIKE Pointer Piston Flow Switch NC80C

NOIKE Pointer Piston Flow Switch NC80C thumbnail-1
NOIKE Pointer Piston Flow Switch NC80C thumbnail-2
NOIKE Pointer Piston Flow Switch NC80C thumbnail-3
NOIKE Pointer Piston Flow Switch NC80C thumbnail-4
NOIKE Pointer Piston Flow Switch NC80C thumbnail-5
NOIKE Pointer Piston Flow Switch NC80C photo-1
NOIKE Pointer Piston Flow Switch NC80C photo-2
NOIKE Pointer Piston Flow Switch NC80C photo-3
NOIKE Pointer Piston Flow Switch NC80C photo-4
NOIKE Pointer Piston Flow Switch NC80C photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NOIKE-AH
Place of Origin:
China
Model Number:
NC80C
Contact Supplier Request Quote Chat Now
Shanghai ZanKe Automation Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NOIKE-AH
Place of Origin China
Model Number NC80C
Media Type Other, Oil Gas Water

Principle Characteristics

Pointer piston flow switch NC80C contains a magnetic piston support- ed by a precision spring that pushes the piston backwards and triggers an external microswitch or reed tube. Optional pointer flowmeter head displays instantaneous flow rate.

Internal all-metal structure, optional pointer flow switch, switch with high reliability and repeatability, mechanical part and electronic part completely isolated, high pressure resistance, normally open output,

large contact capacity, temperature and pressure compensation function.

Technical Parameters

Repeatability: ≤±3% range

Pressure: 200bar (stainless steel), 100bar (brass)

Output mode: normally open and closed

Switching capacity: 240Vac/110Vdc, 1.5A

Ambient temperature: -20... 70°C

Material：

   Electronic enclosure: PC

   Switch housing: stainless steel/brass plated with nickel

   Spring: stainless steel

Protection level: IP65

Outgoing mode: M12*1

NOIKE Honorary Customer:

Product Tags: Flow Switch , Flow Switch NC80C , NOIKE Flow Switch , Pointer piston flow switch , Pointer piston flow switch NC80C , Flow Switch NOIKE
