Home > Products > Industrial Pressure Transmitter > PCM301 Explosion Protection Pressure Transmitter
PCM301 Explosion Protection Pressure Transmitter
- Shanghai or Ningbo or Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | OEM | |
| Model Number | PCM301 |
Product Description
Specifications
1.stainless housing,2.built-in micro-signal processing circuit
3.good stability and reliability
4.CE approval
PCM301 Explosion Protection Pressure Transmitter
Description
PCM301 use diffused silicon pressure core body as sensitive part,buil-in processing
circuit convert transmitter mili-voltage signal into standard voiltage,current,frenquency signal output,
it can be directly connected to computer,control meter,display meter etc.It can be used as remote signal transmission.
PCM301 use intergrative all stainless steel construction,via time after time welding,it meets the
requirements of explosion protection,and it can be used long term under bad circumstances.It has
good quality of vibration protection.The installation is convenient,it is widely used in places of flammability and explosion.
Specification

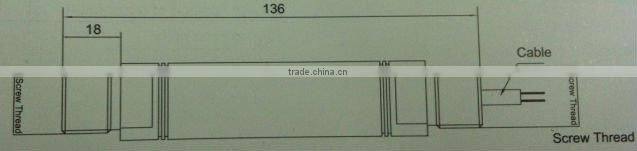

Typical Dimension
Ordering Example
