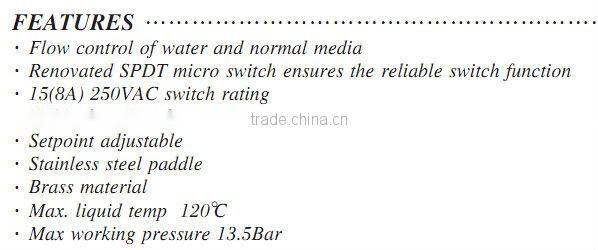

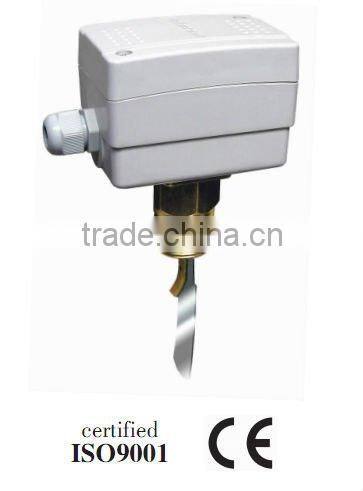

KWFS water proof liquid flow switch
- IP 65
- Germany quality standard
- Sample is available
- most hot sale model in our company
Application
control or monitor liquid flow of boilers,pumps etc. of heating cooling and air conditioning equipment
Specification
Type of operation On/Off, single-stage, micro switch

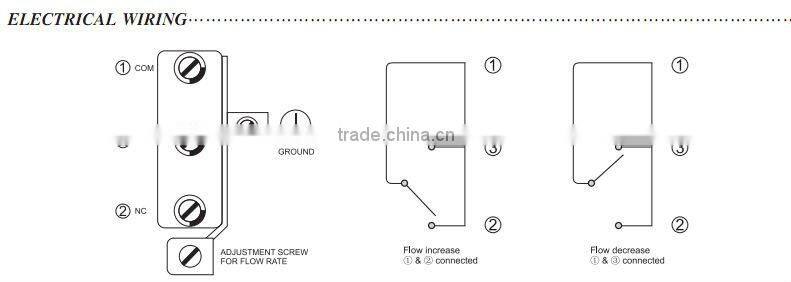

Output SPDT 15(8A) 24/250Vac

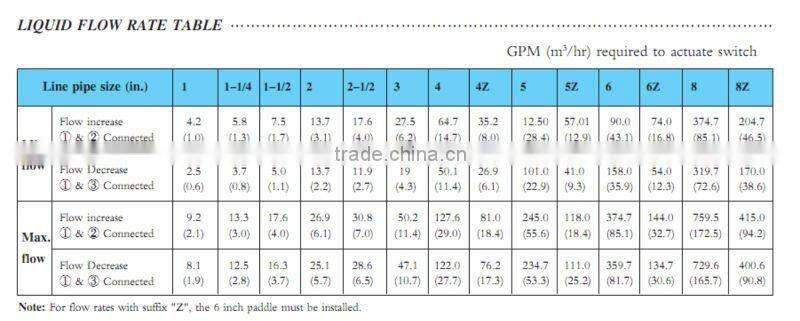

Flow rates See flow rate table
Flow rate setting adjustment Internal srew

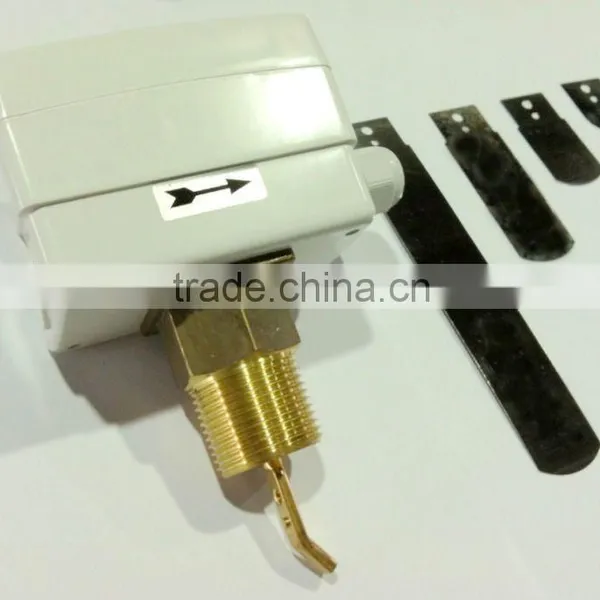

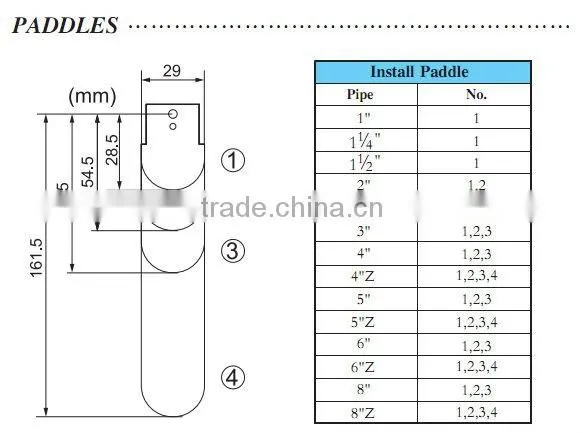

Sensing element Paddle
Liquid applications Hot, chilled, well, pool and sea water,
Brine or ethylene glycol
Parts material in contact with fluid Brass
Paddle material Stainless steel
Liquid temperature -20C-120C
Permissible ambient temperature -40C-85C
Permissible ambient humidity 10…90% RH, non-condensing
Cable entry M18
Housing Galvanized Steel Plate, ABS or PC cover
Protection IP65
Color White
Weight 1.0Kg
Model Type
Model |
Connection |
Note |
KWFS25-1 |
1”-11 1/2NPT |
Plastic Case |
KWFS 25-2 |
1 /2”-14NPT |
|
KWFS 25-3 |
3/4”-14NPT |
|
More...
