Low-Pressure Drop Flow Switch With Dual LED Indicator, EPDM/FPM Seals for Cooling Systems & Filtration Applications

Product Overview:

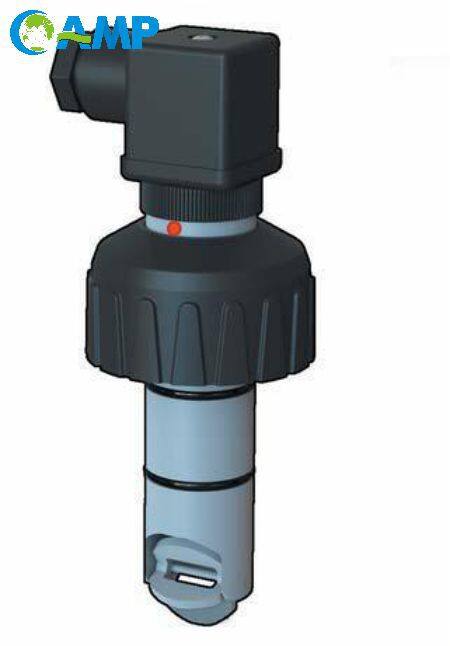

The FIP F3.05 Turbine Flow Switch is designed to provide reliable flow monitoring for critical applications such as pump protection, cooling systems, and filtration processes. This flow switch is constructed with durable materials such as CPVC, PVDF, Brass, and Stainless Steel to ensure resistance to harsh environments and chemicals. With an IP65 protection rating, this flow switch is designed for both indoor and outdoor use, offering a durable and effective solution for flow control.

Key Features:

• Wide Range of Material Options: Choose between CPVC, PVDF, Brass, or Stainless Steel to suit the specific needs of your application, including corrosion resistance and pressure handling.

• Low Flow Trigger: The flow switch is activated at a flow rate of 0.15 m/s (0.5 ft/s), providing early detection for low flow conditions, which is essential for protecting pumps and ensuring system integrity.

• Maintenance-Free: The F3.05 flow switch is designed for long-term operation with no maintenance required, ensuring minimal downtime and consistent performance.

• Clear Dual-Color Status Indicators: The flow switch includes a green LED (for flow) and a red LED (for no flow), allowing operators to quickly assess system status.

• IP65 Protection: This rating ensures the flow switch is protected from dust ingress and water jets, making it suitable for a variety of industrial environments.

• Easy Installation: The insertable design allows for easy integration into pipe systems ranging from DN15 to DN600 (0.5”-24”).

•


Applications:

• Pump protection in industrial systems

• Cooling water systems

• Filtration systems

• Water and wastewater treatment plants

• Agricultural irrigation systems

Why Choose the FIP F3.05 Turbine Flow Switch?
The FIP F3.05 Turbine Flow Switch provides reliable protection for critical systems by detecting low-flow conditions before they cause damage to pumps and other equipment. With its corrosion-resistant construction and low-pressure drop, this switch is ideal for use in harsh environments, ensuring efficient operation and long service life.

Order Now: Protect your equipment and improve system reliability with the FIP F3.05 Turbine Flow Switch. Contact us today for more information or to place an order!

FAQ:

1. What materials is the FIP F3.05 made of?

• The FIP F3.05 is available in CPVC, PVDF, Brass, and Stainless Steel, providing options based on your system’s specific needs.

2. What is the minimum flow rate at which the switch is activated?

• The flow switch activates when the flow rate drops below 0.15 m/s (0.5 ft/s).

3. What types of applications is this flow switch suitable for?

• It is suitable for pump protection, cooling water systems, filtration, and other industrial and water treatment applications.

4. How does the dual-color LED status indicator work?

• The green LED indicates flow, and the red LED indicates no flow, providing easy visual feedback on system status.

5. Can the FIP F3.05 be used outdoors?

• Yes, the FIP F3.05 has an IP65 rating, meaning it is dust-tight and protected from water jets, making it suitable for both indoor and outdoor use.

6. What is the maximum pressure the switch can handle?

• The FIP F3.05 can handle up to 25 bar (363 psi) for Brass and Stainless Steel versions, and 10 bar (145 psi) for CPVC versions.

7. How easy is it to install the FIP F3.05?

• The sensor features an insertable system, making installation quick and easy without the need for complex modifications to existing pipework.

8. Is the FIP F3.05 sensor maintenance-free?

• Yes, the FIP F3.05 is designed to be maintenance-free, reducing the need for frequent servicing and minimizing downtime.
