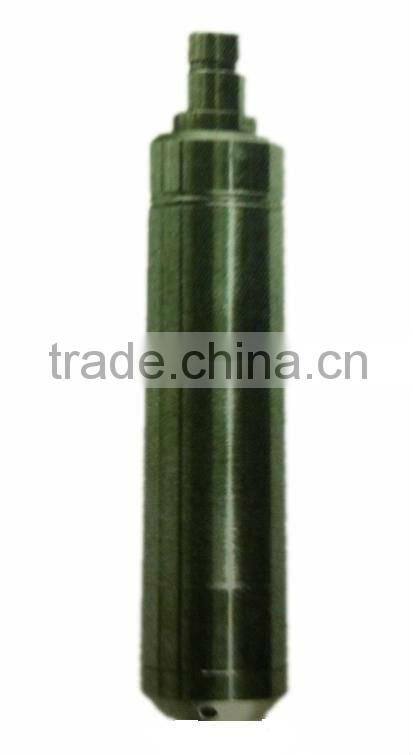

PCM260 Immersion Water/oil Level Transmitter

                                                        PCM260 Immersion Liquid Level Transmitter

 Description

PCM260 silicon Piezoresistive Level transmitter,with oil injected core body covered in stainless housing,the protection cap in the front is used to protect the diaphragm,and enable liquid fluently contact the diaphragm,water-proof cable is connected with external shell by seal,vent pipe is connected with outside world in the cable,inner construction has dew-proof design.PCM260

has bult-in micro-signal processing circuit,it can be used as remote signal transmission.It has good

stability and reliability.

Widely used in enviromental protection/irrigation works/variable frequency water supply/industrial process control/chemical engineering,etc for level measuring control.

Specification

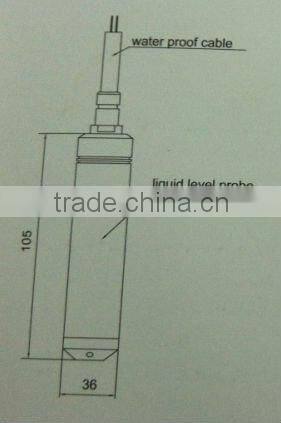

Typical Dimension

Ordering Example
