KWFS Liquid Flow Switch

1.About us

Keram(Nanjing) Controls & Equipments Co;,Ltd. Was founded in 2000,a professional manufacturer and supplier of controls equipment and products design. Our products are related to gas safety control,temperature control,time control,over-heating control, pressure and temperature controls used on refridgeration and compressor,water pressure switch and all kinds of solenoid valves and safety valves.

 New Building Of Keram Controls

keram control add more high precision CNC machine to improve product reliability and efficiency

2.Description

Waterproof liquid flow switches.

3.Application

Control and monitor liquid flow of boilers, pumps, etc., of heating, cooling, and air conditioning equipment.

4.Features

1.Flow control of water and normal media   2.Renovated SPDT micro switch ensures the reliable switch function

3.15(8A)250VAC switch rating                        4.IP65,class I enclosure

5.Setpoint adjustable                                       6.Stainless steel paddle

7.Brass material                                                8.Max. liquid temp 120 ℃

9.Max working pressure 13.5 bar

Types Of Model

Model: KWFS-1   Connection: 1/2"-14NPT

Model: KWFS-2    Connection:3/4"-14NPT

Model: KWFS-3    Connection:1"-11 ½ NPT
5.Specifications

6.Liquid Flow Rate Table

Note!!!: For flow rated with suffix "Z",the 6 inch paddle must be installed.

7.Electrical Wiring

Innstallatio: The flow switch can be installed in every position far from elbows or throttling,with arrow on flow direction.If pipe is vertical, recalibrate range to balance paddle weight.If the device is downwards mounted,take care to slags and apply it in a straight pipe that is far from filters,valves,etc.,with length at least 5 times the diameter of pipe upstream and downstream the unit.

Note!!!: The flow switch is factory calibrated at its minumum sensitivity.To increase the set valve,turn the adjustment screw clockwise.The cut-out valve must be  ≥the minimum flow necessary to guarantee the protection of the plant.

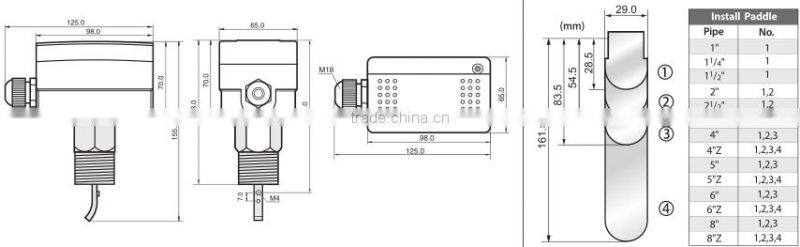

8.Dimensions                                                                                                     Paddles
