Home > Products > Flow Switch > NOIKE Flange Type Explosion-proof Flow Switch NK33EX Series
NOIKE Flange Type Explosion-proof Flow Switch NK33EX Series
- shanghai
- 7 days
You May Like
Product Details
| Brand Name | 臬克 NOIKE-AH | Place of Origin | China | |
| Model Number | NK33EX | Media Type | Other, Oil Gas Water |
Product Description
Specification
Flow velocity: 1~150 cm/s (water), 3~300 cm/s(oil) or, water: 1~70 cm/s, oil: 2~100 cm/s
Warm-up time: 15 sec. (approximate)
Operation temperature:-4⁰F~176⁰F (-20⁰C~80⁰C)
Ambient temp: -4⁰F~176⁰F (-20⁰C~80⁰C)
Operation pressure: 100 bar
Housing rating: IP67
Enclosure material/rating: Aluminum / Ex d IICT6
Wetted materia: 304SS
Supply voltage: 24Vdc A 20%
Output: Open collector---NPN / PNP, 400 mA max. (with current limiting).
Relay--- 1A/30Vdc, 0.3A/125Vac (NO or NC), 5A/250Vac max. (NO)

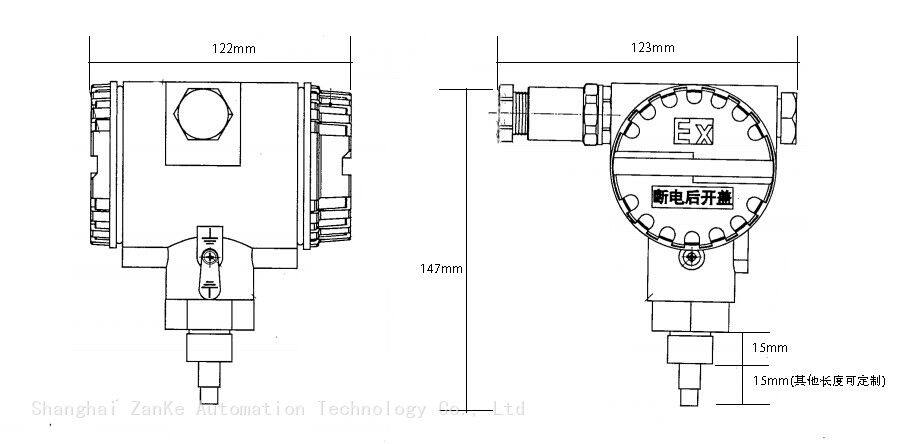

Dimension (G1/2)
