PCM600 Air/Gas Differential Pressure Transmitter

Specifications

1.used in boiler air supply,coal industry etc.
2.built-in micro-signal processing circuit
3.good stability and reliability

                                                 PCM600 Differential Pressure Transmitter

  Description

PCM600 differential transmitter is assembled with silicon pressure transmitter.Housing is aluminum

alloy.The two pressure connection have M10 screw thread,so it is easy to connect it with meter machine box or connect through pressure pipe.PCM 600 have mV,standard voltage,current,frequency signal output,etc.for your selection,the installation is very convinient.It is widely used in process control in boiler air supply,under well ventilation of electricity/coal industry.





Specification

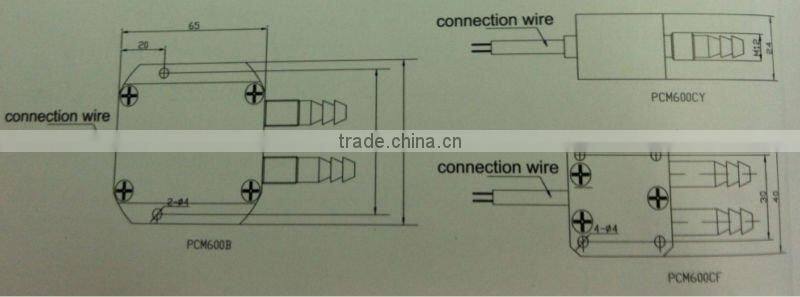

Typical Dimension

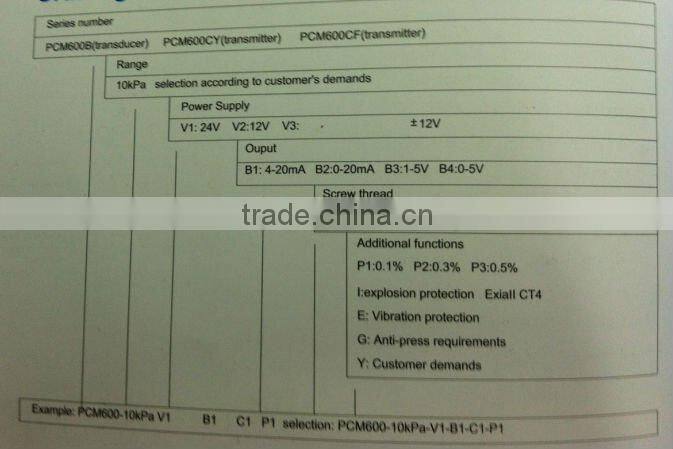

Ordering Example
