Home > Products > Industrial Pressure Transmitter > PCM300 silicon Pressure Transmitter

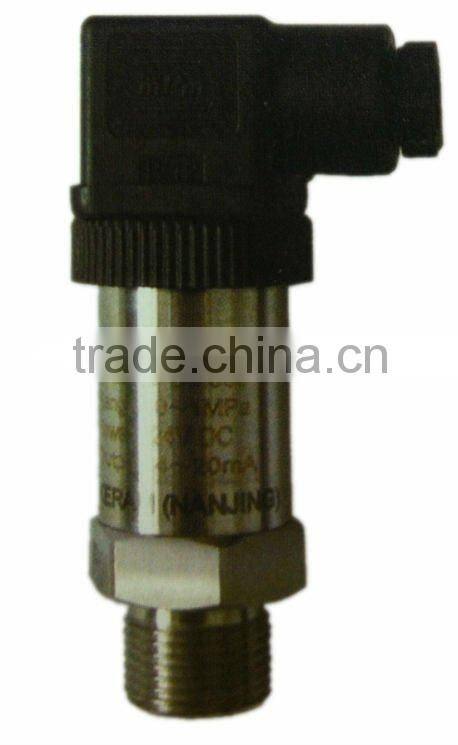

PCM300 silicon Pressure Transmitter
Negotiable
/ Piece
100 Pieces(Min. Order)
- Shanghai or Ningbo or Shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | OEM or keram | |
| Model Number | PCM300 |
Product Description
PCM300 silicon Pressure Transmitter
Description
PCM600 differential transmitter is assembled with silicon pressure transmitter.Housing is aluminum
alloy.The two pressure connection have M10 screw thread,so it is easy to connect it with meter machine box or connect through pressure pipe.PCM 600 have mV,standard voltage,current,frequency signal output,etc.for your selection,the installation is very convinient.It is widely used in process control in boiler air supply,under well ventilation of electricity/coal industry.
Specification
| Type | PCM300 |
| Power supply | 12VDC~36VDC(Typical 24VDC) |
| Range | -0.1......0~0.02...100MPa |
| Pressure reference | Gauge Pressure,Absolute Pressure,Seal Pressure |
| Output | 4~200mA.1~5V,0~10mA,0~20mA,0~5V,1~10KHZ |
| Accuracy | 0.1,0.3,0.5for selection |
| Compensated temp. | -10~70°C |
| Permissible medium temperature | -40~125 °C |
| Permissible ambient temperature | -40~85 °C |
| Index protection of outer shell | IP65 |
| Long term stability | ≤0.2%FS/year |
| Zero temp.drift | ±0.03%FS/ °C |
| Span temp.drift | ±0.03%FS/ °C |
| Over pressure | 200%FS |
| Inherent frequency | 5kHz~650kHz |

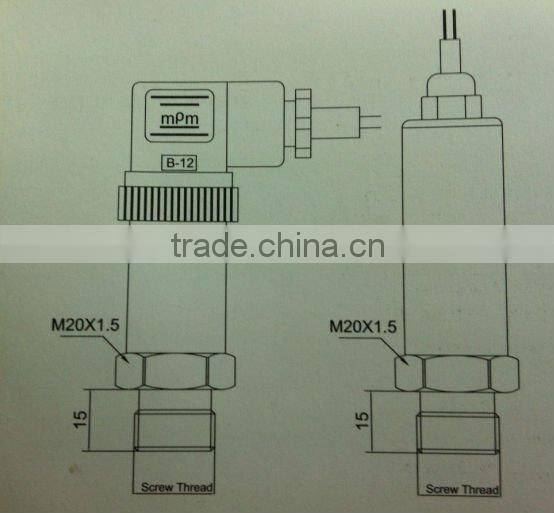

Typical Dimension

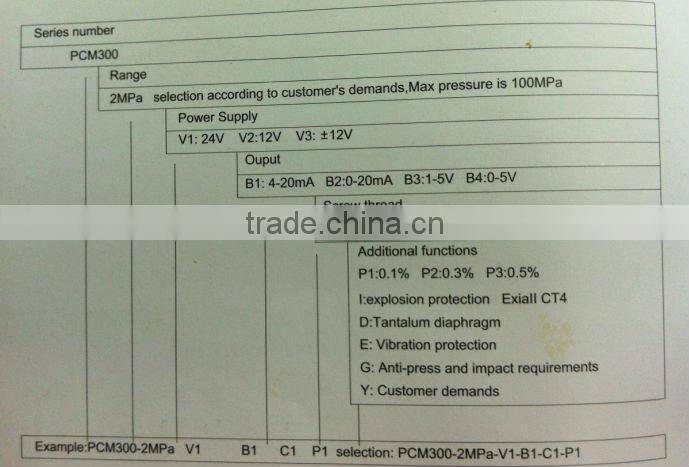

Ordering Example
