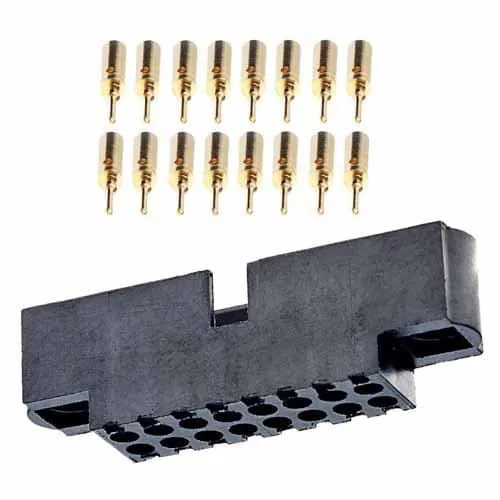

Help CenterM80-5711205 6+6 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, Gold
Product Spotlights
2. Excellent vibration and shock resistance, wide operating temperature: ‑55℃ ~ +125℃
3. Up to 500 mating cycles, long service life for industrial equipment
Related Products
-
M80-4712605 Original Harwin Datamate J-Tek High Reliability Connector 26P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units -
M80-4710605 Original Harwin Datamate J-Tek High Reliability Connector 6P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units
-
Harwin M80‑5000000M1‑06‑335‑00‑000 Male Cable Plug Kit, 4.0mm , 20A Power Connector, 12 AWGNegotiableMOQ: 5 Units
-
Harwin M80‑4T10405F1‑04‑321‑00‑000 4‑Power+4‑Signal Vertical Through‑Hole Female PCB ReceptacleNegotiableMOQ: 5 Units
-
Harwin M80-5000000M1-08-331-00-00-000 8Pin Single Row Cable Male Head Kit 4.0mm Pitch With Floating Lock Screw 20A Welded Power ConnectorNegotiableMOQ: 5 Units
Basic Information
Manufacturer: Harwin
Part Number: M80‑5711205
Series: Datamate J‑Tek High‑Reliability Connector
Product Type: Cable‑side male plug kit, free‑hanging (cable‑to‑board / cable‑to‑cable interconnection)
Position: 12‑pin, double‑row layout (6+6 DIL)
Pitch: 2.0 mm
Fastening: Without jack‑screw locking hardware
Termination: Loose crimp‑style male contacts
Compatible Wire Gauge: 24‑28 AWG stranded signal wire
Housing Color: Black
Housing Material: High‑temperature PPS plastic, UL94V‑0 flame‑retardant gradeHarwin
Electrical Specifications
Rated Current: 3.3 A maximum per contact; 3 A simultaneous working current at 25℃ ambient temperature
Contact Plating: Full gold‑plated on both contact zone and termination area, low contact resistance, outstanding anti‑oxidation and corrosion‑resistant performance
Rated Voltage: 120 V
Insulation Resistance: Excellent insulation performance, stable for long‑time signal transmission
Mechanical & Environmental Performance
Contact Material: Brass male pins, rigid and durable
Polarization Feature: Built‑in polarization anti‑mis‑insertion key, effectively prevents reverse‑mating and equipment damage
Mating Cycles: Up to 500 reliable mating‑unmating cycles
Vibration & Shock Resistance: Passed strict high‑reliability industrial vibration and impact tests
Operating Temperature: ‑55 ℃ ~ +125 ℃ wide temperature range, suitable for harsh industrial‑temperature environmentsHarwin
Kit Composition
Supplied as loose components, not pre‑assembled: 1 × 12‑position double‑row male plug housing 12 × loose crimp‑type male signal contacts
Important Note: Contacts are not pre‑loaded into housing. Crimp wires onto contacts first, then insert terminals from the rear of housing until fully latched.
Key Advantages
Genuine Harwin Datamate J‑Tek hi‑reliability connector, rugged industrial‑grade signal interconnection solution
Compact double‑row 12‑pin, 2.0 mm pitch design, saves valuable internal space for compact‑size equipment
Gold‑plated brass pins ensure stable signal transmission even under humid, dusty industrial environments
Loose‑contact kit supports custom‑length wiring harness production, flexible for cabinet internal wiring
Polarization key greatly lowers wiring error risk during on‑site assembly
High‑temperature flame‑retardant PPS housing guarantees long‑term safety and reliability under extreme‑temperature working conditions
Typical Applications
Industrial control systems, robot signal wiring, unmanned aerial vehicles, onboard electronic equipment, test & measurement instruments, medical device harnesses, communication equipment internal signal interconnection.
