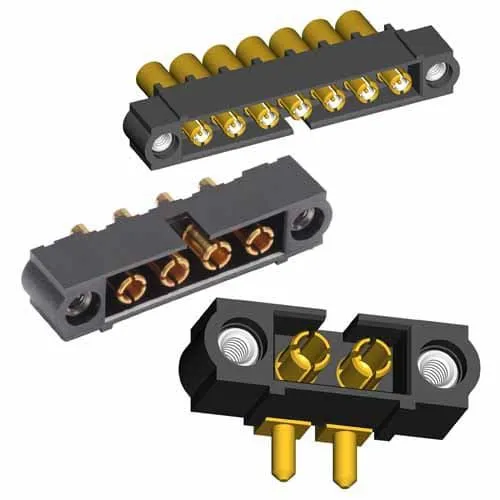

Help CenterHarwin M80‑5000000M1‑06‑335‑00‑000 Male Cable Plug Kit, 4.0mm , 20A Power Connector, 12 AWG
Product Spotlights
2. Built‑in polarization key prevents reverse‑mating and equipment damage
3. Supplied as loose‑component kit (housing + unassembled contacts), fully customizable wire‑harness length
4. Passed strict industrial vibration & shock testing, maintains reliable power connection under high‑vibration conditions
Related Products
-
Harwin M80‑4T10405F1‑04‑321‑00‑000 4‑Power+4‑Signal Vertical Through‑Hole Female PCB ReceptacleNegotiableMOQ: 5 Units -
Harwin M80-5000000M1-08-331-00-00-000 8Pin Single Row Cable Male Head Kit 4.0mm Pitch With Floating Lock Screw 20A Welded Power ConnectorNegotiableMOQ: 5 Units
-
Harwin M80-500200510+10 Pos. Male Plug DIL Straight 3.3mm THT Connector, Jackscrews, GoldNegotiableMOQ: 5 Units
-
Harwin M80-5000000M1-06-331-00-000 6Pin With Floating Locking Screw 20A Industrial High Reliability Power ConnectorNegotiableMOQ: 5 Units
-
HARWIN M80‑4711005 Rectangular Receptacle 10Pin 2mm Crimp ConnectorNegotiableMOQ: 5 Units

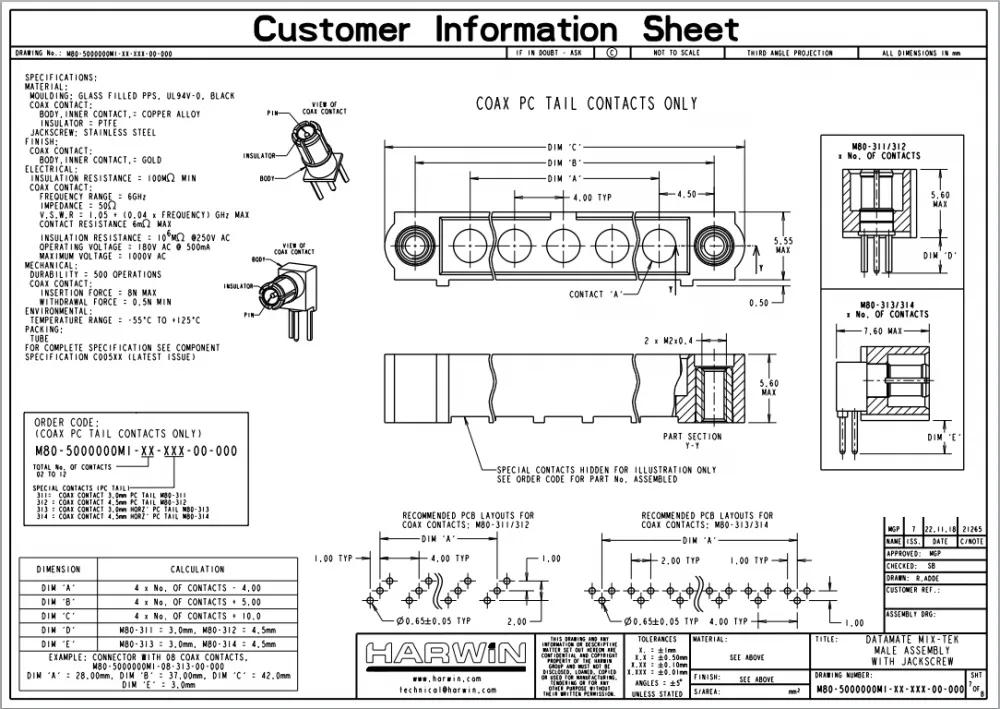

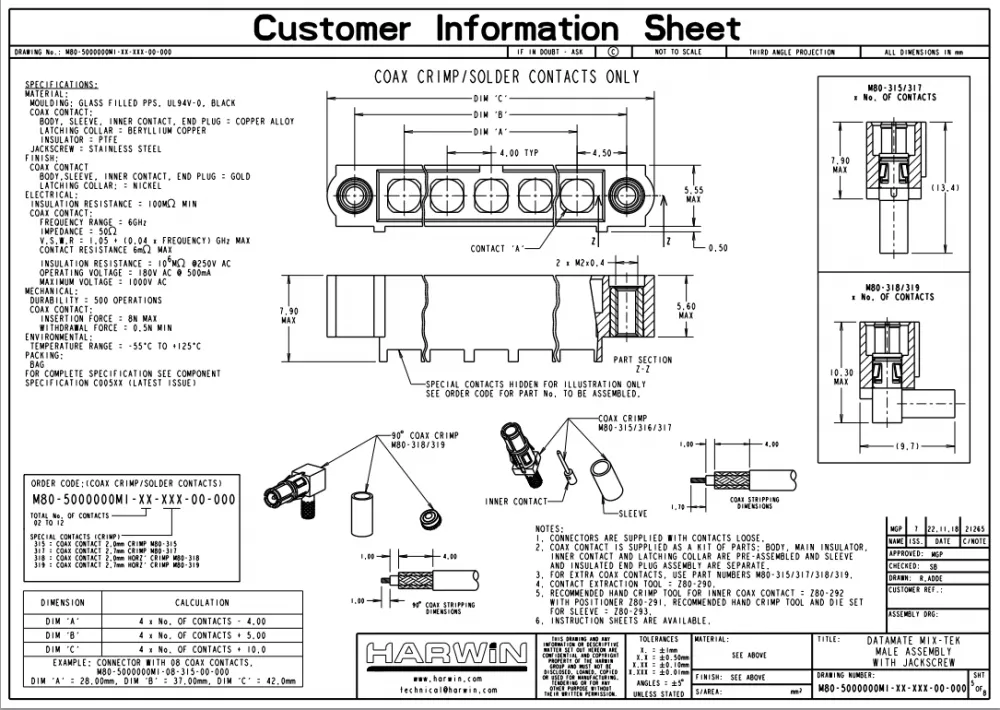

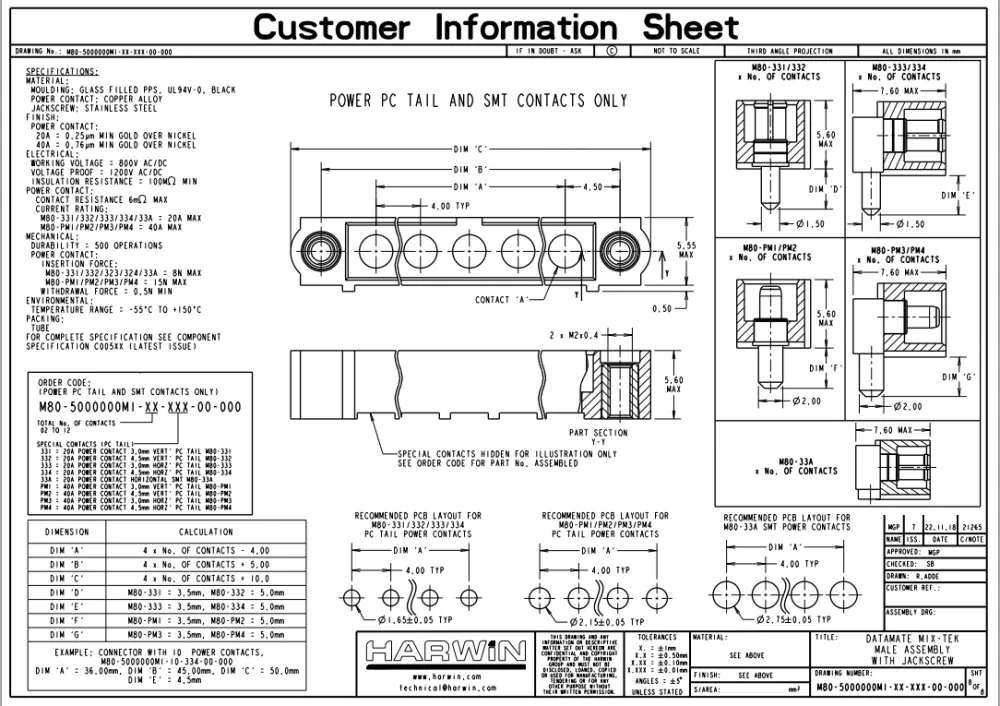

Basic Information
Manufacturer: Harwin
Part Number: M80‑5000000M1‑06‑335‑00‑000
Series: Datamate Mix‑Tek (Datamate‑Power) High‑Reliability Power Connector
Product Type: Cable‑side male plug kit, free‑hanging (cable‑to‑board / cable‑to‑cable interconnection)
Position: 6‑pin, Single‑In‑Line (SIL), one‑row layout
Pitch: 4.0 mm
Locking Hardware: Pre‑installed internal‑thread floating jack‑screws
Termination: Loose solder‑style high‑power male contacts
Compatible Wire Gauge: 12 AWG stranded power cable
Housing Color: Black
Housing Material: High‑temperature PPS plastic, UL94V‑0 flame‑retardant grade
Electrical Specifications
Rated Current: 20 A maximum per‑contact
Contact Plating: Full gold‑plated on both contact zone and solder termination area, low contact resistance
Rated Voltage: 120 V
Excellent insulation performance, stable long‑time high‑power transmission
Mechanical & Environmental Performance
Contact Material: Beryllium‑copper high‑power male pins
Lock‑up Feature: Floating jack‑screw design compensates assembly tolerance and firmly locks mated connectors, effectively preventing accidental disconnection under vibration
Polarization Feature: Built‑in polarization anti‑mis‑insertion key, avoids reverse‑mating‑caused equipment damage
Vibration & Shock Resistance: Verified against Harwin high‑reliability industrial vibration‑shock specification
Operating Temperature: ‑55 ℃ ~ +125 ℃ wide temperature range, suitable for harsh industrial‑temperature environments

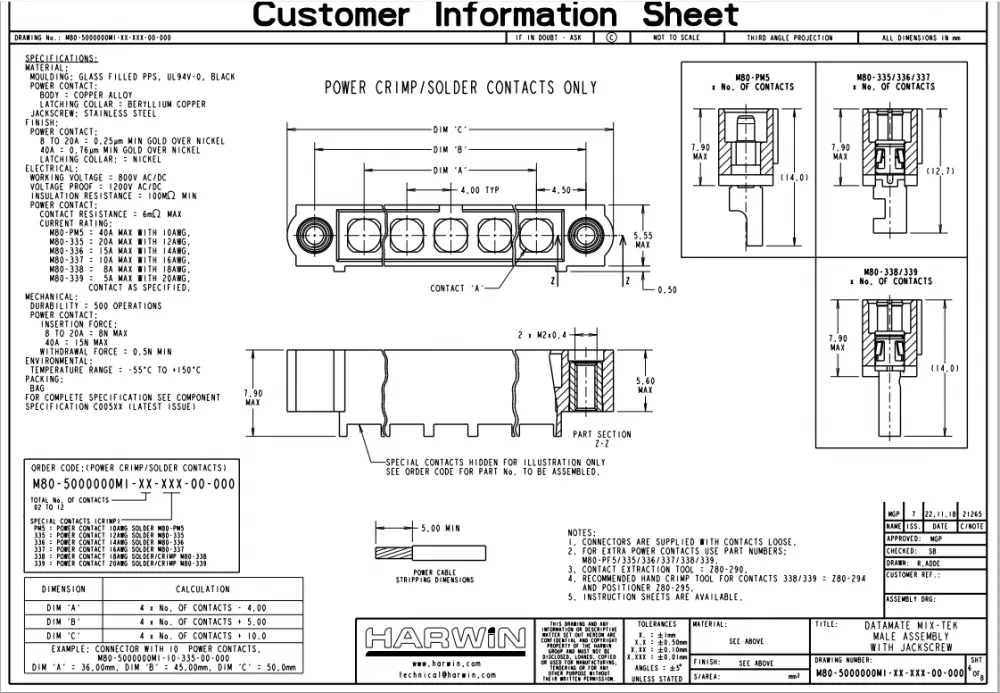

Kit Composition
Supplied as loose components, contacts are not pre‑loaded into housing:
1 × 6‑position single‑row male plug housing with internal‑thread jack‑screws
6 × loose M80‑335 solder‑type high‑power male contacts
Important Note: Solder wires onto power contacts first, then insert terminals from the rear of housing until fully latched.
Compliance
RoHS Compliant (2015/863/EU) with Exemption 6c
REACH Compliant
Key Advantages
Original Harwin hi‑rel power‑interconnection solution, rugged performance for zero‑failure power‑supply equipment
Spacious 4.0 mm single‑row layout improves heat dissipation for multi‑channel high‑current power distribution
Floating jack‑screw locking mechanism delivers outstanding anti‑loosening performance for vibration‑prone devices
Gold‑plated heavy‑duty beryllium‑copper contacts ensure stable power transmission even in humid, dusty industrial environments
Loose‑contact kit supports custom‑length wiring‑harness fabrication, flexible for cabinet internal power‑supply wiring
High‑temperature flame‑retardant PPS shell guarantees long‑term safety and reliability under extreme‑temperature working conditions
Typical Applications
Industrial control equipment power interfaces, robot internal high‑power wiring, railway onboard electronic control systems, unmanned equipment power harnesses, photovoltaic inverter control units, test‑and‑measurement instruments, medical‑device power interconnection, communication‑equipment internal power supply.
