Help CenterHarwin M80-500200510+10 Pos. Male Plug DIL Straight 3.3mm THT Connector, Jackscrews, Gold
Product Spotlights
2. 20‑position double‑row layout (10+10), compact 2.0 mm pitch, saves PCB space for multi‑channel signal transmission
3. Vertical through‑hole (THT) soldering termination with 3.3 mm long PCB tails; strong mechanical anchorage on printed‑circuit boards
Related Products
-
Harwin M80-5000000M1-06-331-00-000 6Pin With Floating Locking Screw 20A Industrial High Reliability Power ConnectorNegotiableMOQ: 5 Units -
HARWIN M80‑4711005 Rectangular Receptacle 10Pin 2mm Crimp ConnectorNegotiableMOQ: 5 Units
-
M80‑5000000M5‑06‑333‑00‑000 Harwin 6Pin Power Header 4mm Pitch Right‑Angle Through‑Hole ConnectorNegotiableMOQ: 5 Units
-
Harwin G125-MH12605M4P 26Pin Double Row Right Angle Through Hole Male Seat 1.25mm Spacing Gecko-SL Threaded Locking High Reliability ConnectorNegotiableMOQ: 5 Units
-
Harwin M80-40000000-08-322-00-000 8Pin 4.0mm Spacing Datamate Power Non Locking Screw High-power Power ConnectorNegotiableMOQ: 5 Units
M80‑5002005
Genuine Harwin Datamate J‑Tek high‑reliability vertical male PCB header for signal‑level interconnectionHarwin
20‑position double‑row layout (10+10), compact 2.0 mm pitch, saves PCB space for multi‑channel signal transmission
Vertical through‑hole (THT) soldering termination with 3.3 mm long PCB tails; strong mechanical anchorage on printed‑circuit boards
Pre‑installed M2 internally‑threaded jack‑screws provide secure locking, preventing accidental disconnection under vibration and shock
Phosphor‑bronze male pins with full gold‑plated finish on both mating surface and solder tails, low contact resistance, excellent anti‑oxidation & corrosion‑resistance
Glass‑filled black high‑temperature PPS housing, UL94V‑0 flame‑retardant grade, wide operating temperature range: ‑55 ℃ ~ +125 ℃ for harsh industrial environmentsHarwin
Built‑in polarization key feature, effectively avoids reverse‑mating and protects circuit‑board components from damage
Verified to BS9525‑F0033 high‑reliability specification, up to 500 mating‑unmating cycles for long‑term durability
RoHS & REACH compliant, supplied in tube packaging suitable for automated wave‑soldering assembly
Perfect for board‑to‑cable / board‑to‑board signal interconnection in industrial automation, robotics, test‑measurement equipment, onboard‑electronic and medical‑device projects

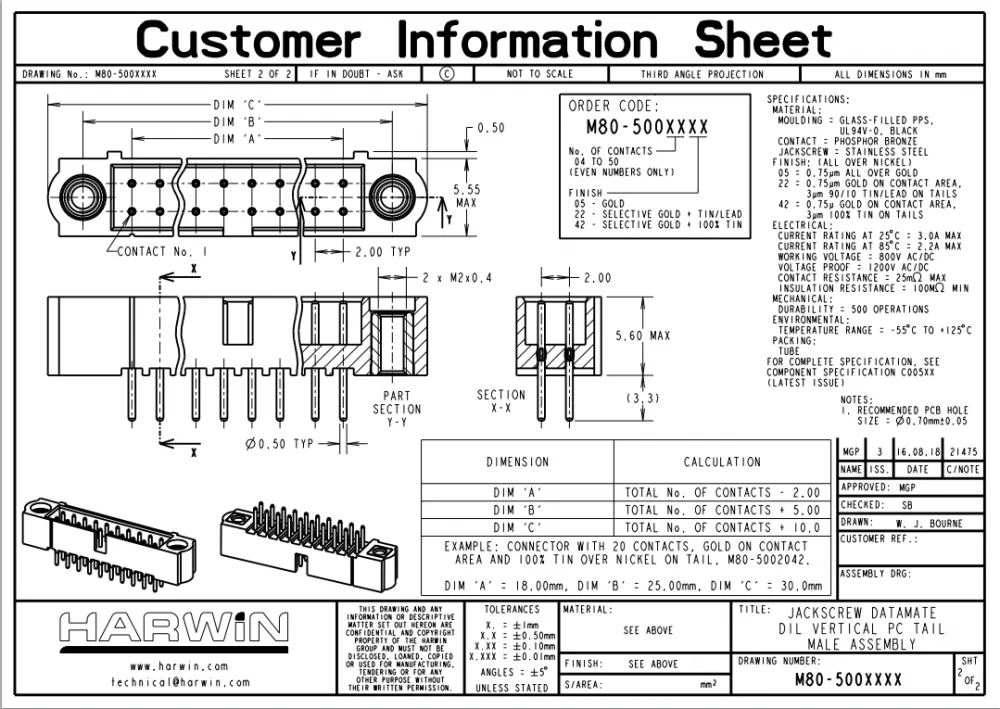

Full‑Length English Product Description
Basic Information
Manufacturer: Harwin
Part Number: M80‑5002005
Series: Datamate J‑Tek High‑Reliability Signal Connector
Product Type: Vertical PCB‑mount male header (Board‑side, Through‑Hole / THT)
Contact Configuration: 20 signal contacts (10+10 double‑row DIL layout)
Pitch: 2.0 mm
Locking Hardware: Pre‑installed M2 internally‑threaded jack‑screws
Mounting Style: Straight vertical through‑hole soldering
PCB Tail Length: 3.3 mm
Housing Color: Black
Housing Material: Glass‑filled high‑temperature PPS plastic, UL94V‑0 flame‑retardant grade
Electrical Specifications
Rated Current: 3.3 A maximum per‑pin; 3 A simultaneous working current at 25 ℃ ambient temperaturechinadrago...
Contact Plating: Full gold‑plated finish on mating zone and solder termination tails
Rated Voltage: 120 V
Withstand Voltage: 1000 V AC, 1 minute
Insulation Resistance: ≥ 1000 MΩ @ 500 V DC
Contact Resistance: ≤ 6 mΩ
Mechanical & Environmental Performance
Contact Material: Phosphor‑bronze male pins, mating pin diameter Ø 0.5 mmHarwin
Lock‑up Feature: Internal‑thread jack‑screw locking delivers high retention‑force against vibration‑caused loosening
Polarization Feature: Built‑in polarization anti‑mis‑insertion key prevents reverse‑mating‑induced equipment damage
Mating Cycles: Up to 500 reliable mating‑unmating cycles
Vibration & Shock Resistance: Passed BS9525‑F0033 high‑reliability industrial vibration‑shock test specification
Operating Temperature: ‑55 ℃ ~ +125 ℃
Max Soldering Temperature: 260 ℃, 10 seconds peak duration
Packaging
Supplied in tube packaging for automated assembly production.
Compliance
RoHS Compliant (2015/863/EU)
REACH Compliant
Key Advantages
Original Harwin hi‑reliability multi‑channel signal interconnection header, rugged construction for zero‑failure industrial equipment
Compact 2.0 mm double‑row layout maximizes channel density while minimizing PCB footprint
Through‑hole long‑tail soldering offers outstanding mechanical strength, ideal for vibration‑prone devices
Gold‑plated phosphor‑bronze pins maintain stable signal integrity in humid, dusty or temperature‑fluctuating working environments
Integrated jack‑screw locking eliminates risk of unintended connector separation in field‑deployed equipment
Polarised housing design reduces assembly error during manual‑wiring or mass‑production installation
Typical Applications
Industrial automation control cabinets, robot motion‑control systems, test‑and‑measurement instrumentation, unmanned‑equipment internal signal interconnection, onboard‑electronic control units, medical diagnostic & monitoring devices, communication‑equipment board‑to‑cable multi‑signal connections.
