Help CenterHarwin M80‑4T10405F1‑04‑321‑00‑000 4‑Power+4‑Signal Vertical Through‑Hole Female PCB Receptacle
Product Spotlights
2. Vertical through‑hole (THT) soldering mounting; fitted with M2 slotted floating jack‑screws for anti‑loosening locking under heavy‑vibration conditions
3. Signal contacts at 2.0 mm pitch, rated up to 3.3 A per pin; power contacts at 4.0 mm pitch with high‑current rating up to 20 A, simultaneous power & signal transmission
Related Products
-
Harwin M80-5000000M1-08-331-00-00-000 8Pin Single Row Cable Male Head Kit 4.0mm Pitch With Floating Lock Screw 20A Welded Power ConnectorNegotiableMOQ: 5 Units -
Harwin M80-500200510+10 Pos. Male Plug DIL Straight 3.3mm THT Connector, Jackscrews, GoldNegotiableMOQ: 5 Units
-
Harwin M80-5000000M1-06-331-00-000 6Pin With Floating Locking Screw 20A Industrial High Reliability Power ConnectorNegotiableMOQ: 5 Units
-
HARWIN M80‑4711005 Rectangular Receptacle 10Pin 2mm Crimp ConnectorNegotiableMOQ: 5 Units
-
M80‑5000000M5‑06‑333‑00‑000 Harwin 6Pin Power Header 4mm Pitch Right‑Angle Through‑Hole ConnectorNegotiableMOQ: 5 Units
Basic Information
Manufacturer: Harwin

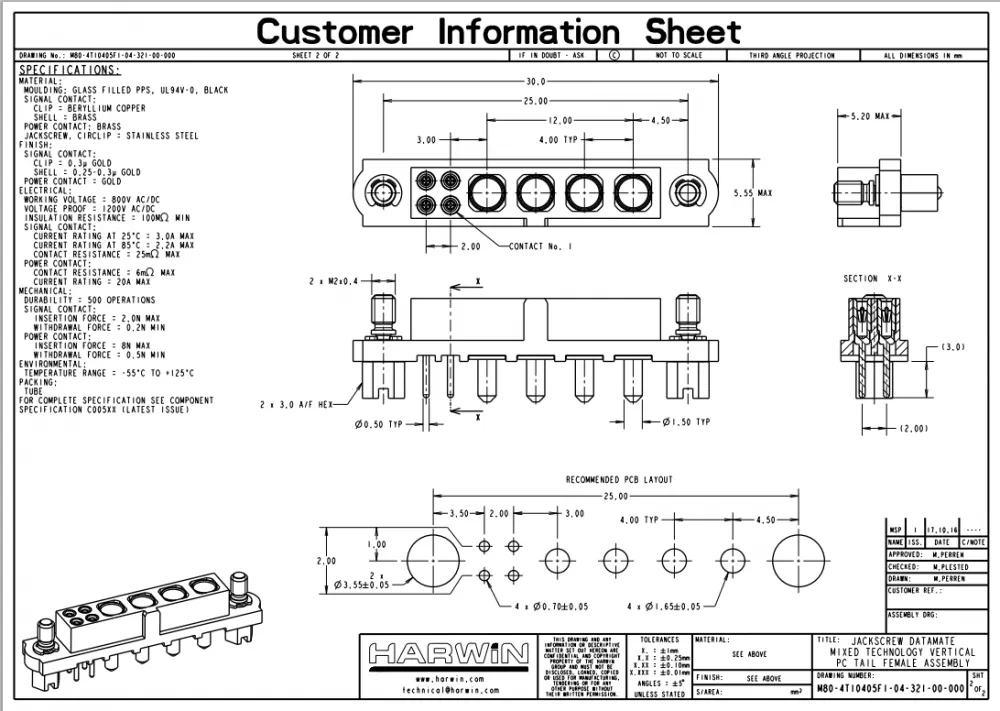

Part Number: M80‑4T10405F1‑04‑321‑00‑000
Series: Datamate Mix‑Tek High‑Reliability Hybrid Signal‑and‑Power Connector
Product Type: Vertical PCB‑mount female receptacle (Board‑side, Through‑Hole / THT)
Contact Configuration: 4 Signal Contacts + 4 Power Contacts (Total 8 positions)
Pitch: 2.0 mm (signal row) / 4.0 mm (power row)
Locking Hardware: Pre‑installed M2 slotted floating jack‑screws
Mounting Style: Straight vertical through‑hole soldering onto PCB
Housing Color: Black
Housing Material: Glass‑filled high‑temperature PPS plastic, UL94V‑0 flame‑retardant gradeHarwin
Electrical Specifications
Rated Current: Signal: 3.3 A max per‑contact, 3 A simultaneous working current; Power: 20 A max per‑contact
Contact Plating: Full gold‑plated on both contact mating zone and PCB termination tails, low contact‑resistance performance
Rated Voltage: 120 V
Excellent insulation stability for combined high‑power and multi‑channel signal transmission
Mechanical & Environmental Performance
Contact Material: Beryllium‑copper four‑finger female socket contacts + brass shell (signal contacts); Brass (power contacts)Harwin
Lock‑up Feature: Floating jack‑screw design compensates assembly tolerance, firmly locks mated cable‑side connector and prevents accidental disconnection under vibration and shock
Polarization Feature: Built‑in polarization anti‑mis‑insertion key to avoid reverse‑mating‑induced equipment damage
Mating Cycles: Up to 500 reliable mating‑unmating cycles
Vibration & Shock Resistance: Passed strict high‑reliability industrial vibration‑shock test specification BS9525‑F0033
Operating Temperature: ‑55 ℃ ~ +125 ℃ wide temperature‑range operation
Max Soldering Temperature: 260 °C, 10 seconds
Packaging
Supplied in tube packaging for automated assembly.
Compliance
RoHS Compliant (2015/863/EU) with Exemption 6c
REACH Compliant
Key Advantages
Original Harwin hi‑rel hybrid interconnection solution, integrating signal and heavy‑duty power contacts inside one compact housing
Separate optimized pitch layout (2.0 mm for signal, 4.0 mm for power), balances space‑saving and high‑current heat‑dissipation requirements
Floating jack‑screw locking mechanism delivers outstanding retention‑force performance for vibration‑prone industrial, onboard and field‑deployed equipment
Gold‑plated four‑finger beryllium‑copper contacts maintain stable signal integrity in humid, dusty or temperature‑fluctuating environments
Vertical through‑hole mounting provides strong mechanical solder anchorage to PCB‑boards
All‑in‑one hybrid design reduces total connector quantity on PCB, simplifies system wiring and cuts overall bill‑of‑material cost
Typical Applications
Industrial control cabinets, robot motion‑control systems, railway onboard electronic units, unmanned equipment power‑signal interconnection, photovoltaic inverter control boards, test‑and‑measurement instrumentation, medical diagnostic equipment, communication‑equipment board‑to‑cable high‑power signal connections.
