Help CenterHarwin M80-5000000M1-06-331-00-000 6Pin With Floating Locking Screw 20A Industrial High Reliability Power Connector
Product Spotlights
2. Robust electrical performance: rated voltage 800 V AC/DC, proof‑voltage 1200 V, minimum insulation resistance ≥ 1000 MΩ for stable long‑time power delivery.
Related Products
-
HARWIN M80‑4711005 Rectangular Receptacle 10Pin 2mm Crimp ConnectorNegotiableMOQ: 5 Units -
M80‑5000000M5‑06‑333‑00‑000 Harwin 6Pin Power Header 4mm Pitch Right‑Angle Through‑Hole ConnectorNegotiableMOQ: 5 Units
-
Harwin G125-MH12605M4P 26Pin Double Row Right Angle Through Hole Male Seat 1.25mm Spacing Gecko-SL Threaded Locking High Reliability ConnectorNegotiableMOQ: 5 Units
-
Harwin M80-40000000-08-322-00-000 8Pin 4.0mm Spacing Datamate Power Non Locking Screw High-power Power ConnectorNegotiableMOQ: 5 Units
-
M80‑4000000F1‑06‑325‑00‑000 HARWIN Connector, Receptacle 6‑Position Power Female, 4mm Pitch, Jackscrew Lock, 12AWG, Datamate‑Power SeriesNegotiableMOQ: 5 Units

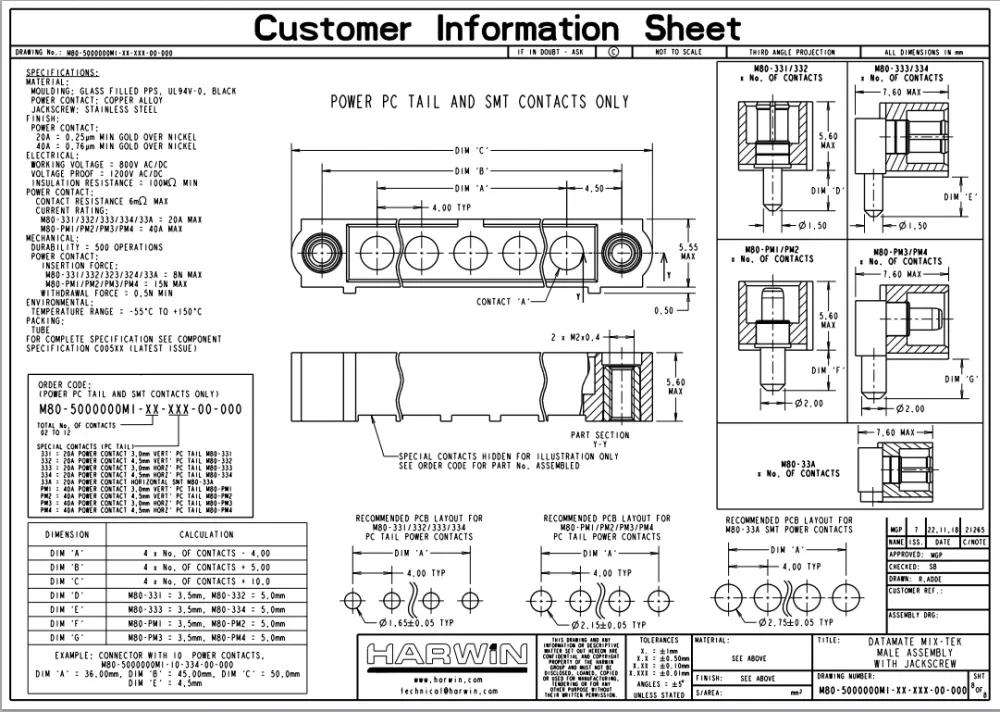

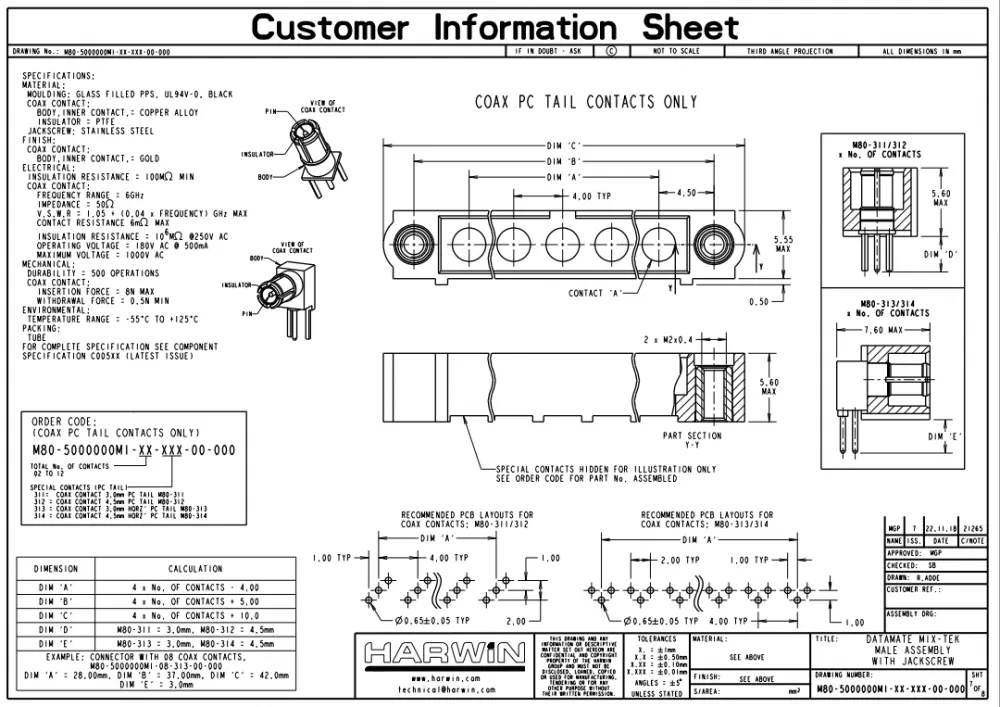

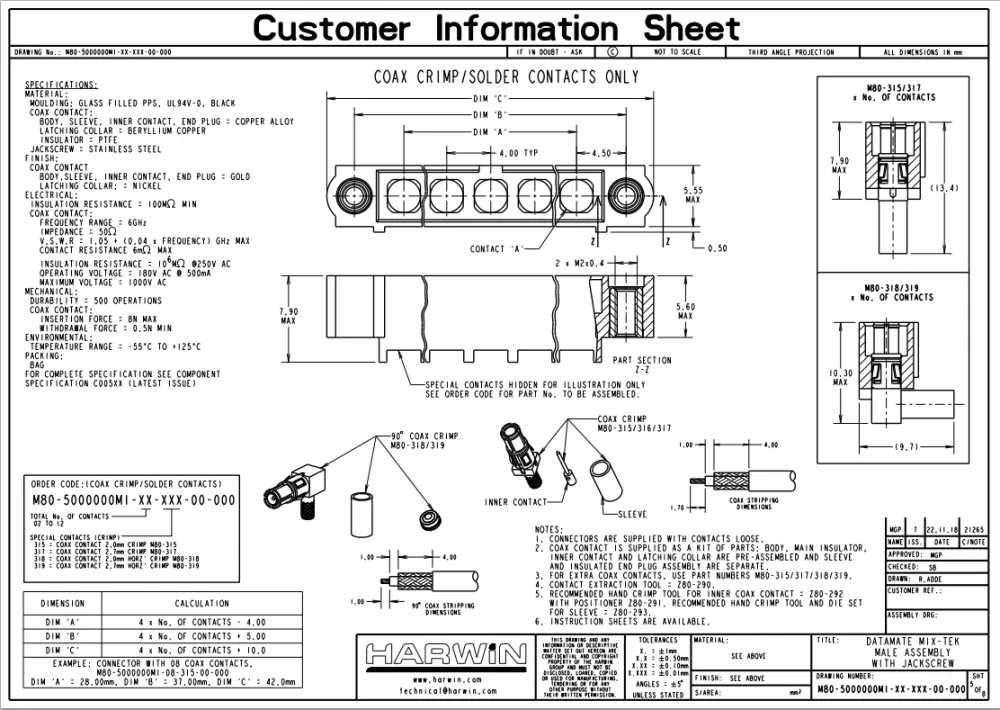

Basic Information
Manufacturer: Harwin
Part Number: M80‑5000000M1‑06‑331‑00‑000
Series: Datamate Mix‑Tek (Datamate‑Power) High‑Reliability Power Connector
Product Type: Cable‑side male plug kit, free‑hanging (cable‑to‑board / cable‑to‑cable interconnection)
Contact Configuration: 6‑pin, Single‑In‑Line (SIL), one‑row layout
Pitch: 4.0 mm
Locking Hardware: Pre‑installed internal‑thread floating jack‑screws
Termination: Loose solder‑style high‑power male contacts (M80‑331)
Compatible Wire Gauge: 12 AWG stranded power cable
Housing Color: Black
Housing Material: Glass‑filled high‑temperature PPS plastic, UL94V‑0 flame‑retardant gradeHarwin
Electrical Specifications
Rated Current: 20 A maximum per‑contact
Contact Plating: Full gold‑plated finish on both mating zone and solder termination area, low contact‑resistance
Rated Voltage: 800 V AC / DC
Withstand Proof Voltage: 1200 V AC / DC
Insulation Resistance: ≥ 1000 MΩ @ 500 V DC
Mechanical & Environmental Performance
Contact Material: Beryllium‑copper high‑power male pinsHarwin
Lock‑up Feature: Floating jack‑screw design compensates assembly tolerance and firmly locks the mated female‑side connector, effectively preventing accidental disconnection under vibration and shock load
Polarization Feature: Built‑in polarization anti‑mis‑insertion key, avoids reverse‑mating‑induced power‑short‑circuit and equipment damage
Mating‑Unmating Cycles: Up to 500 reliable operations
Vibration & Shock Resistance: Passed strict high‑reliability industrial vibration‑shock test specification BS9525‑F0033datasheet....
Operating Temperature: ‑55 ℃ ~ +125 ℃ wide temperature‑range operation
Maximum Soldering Temperature: 260 ℃, 10 seconds peak duration

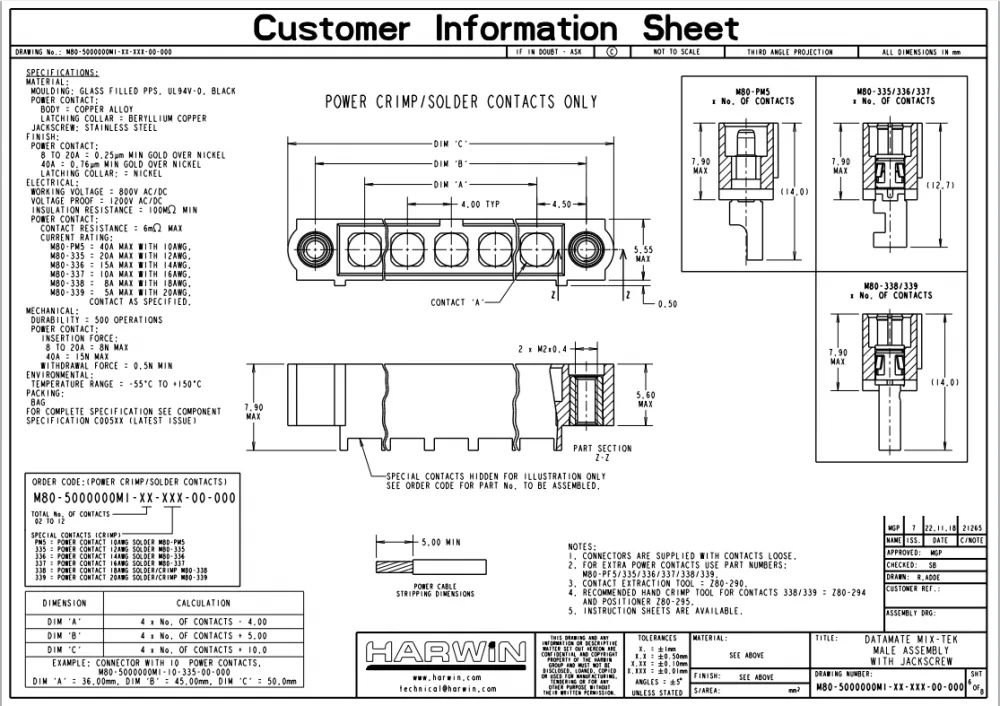

Kit Composition
Supplied as loose components; contacts are not pre‑loaded into housing: 1 × 6‑position single‑row male‑plug housing with internal‑thread floating jack‑screws 6 × loose M80‑331 solder‑type high‑power male contacts
Important Note: Solder wires onto power contacts first, then insert terminals from the rear of housing until fully latched.
Compliance
RoHS Compliant (2015/863/EU) with Exemption 6c
REACH Compliant
Key Advantages
Original Harwin hi‑reliability heavy‑duty power‑interconnection solution, rugged construction for zero‑failure power‑supply equipment deployed in vibration‑prone industrial fields.
Spacious 4.0 mm single‑row layout improves heat‑dissipation efficiency when multiple 20‑A power‑channels are working simultaneously.
Floating jack‑screw locking‑mechanism delivers outstanding anti‑loosening retention‑force, eliminating risk of connector separation under continuous vibration.
Gold‑plated beryllium‑copper heavy‑duty contacts maintain stable power‑transmission performance even in humid, dusty or temperature‑fluctuating environments.
Loose‑contact kit supports fully custom‑length wiring‑harness fabrication, highly flexible for cabinet‑internal power‑supply wiring projects.
High‑temperature flame‑retardant PPS shell guarantees long‑term safety and reliability under extreme‑temperature working‑conditions.
Typical Applications
Industrial control‑equipment power interfaces, robot internal high‑power wiring, railway onboard‑electronic control systems, unmanned‑equipment power harnesses, photovoltaic‑inverter control‑unit power connections, test‑and‑measurement instruments, medical‑device power interconnection, communication‑equipment internal high‑power power‑supply circuits.
