Help CenterHARWIN M80‑4711005 Rectangular Receptacle 10Pin 2mm Crimp Connector
Product Spotlights
2. No jackscrew design, free‑hanging cable installation
3.- 4‑finger beryllium‑copper contact structure, excellent anti‑vibration & anti‑shock performance, stable electrical continuity under severe vibration environments4staticas...
Related Products
-
M80‑5000000M5‑06‑333‑00‑000 Harwin 6Pin Power Header 4mm Pitch Right‑Angle Through‑Hole ConnectorNegotiableMOQ: 5 Units -
Harwin G125-MH12605M4P 26Pin Double Row Right Angle Through Hole Male Seat 1.25mm Spacing Gecko-SL Threaded Locking High Reliability ConnectorNegotiableMOQ: 5 Units
-
Harwin M80-40000000-08-322-00-000 8Pin 4.0mm Spacing Datamate Power Non Locking Screw High-power Power ConnectorNegotiableMOQ: 5 Units
-
M80‑4000000F1‑06‑325‑00‑000 HARWIN Connector, Receptacle 6‑Position Power Female, 4mm Pitch, Jackscrew Lock, 12AWG, Datamate‑Power SeriesNegotiableMOQ: 5 Units
-
M80‑5000000M1‑04‑335‑00‑000 HARWIN Connector, 4‑Position Male Plug, 4.0mm Pitch, Jackscrew Lock, 12AWG, Datamate‑Power Series Cable‑mount KitNegotiableMOQ: 5 Units

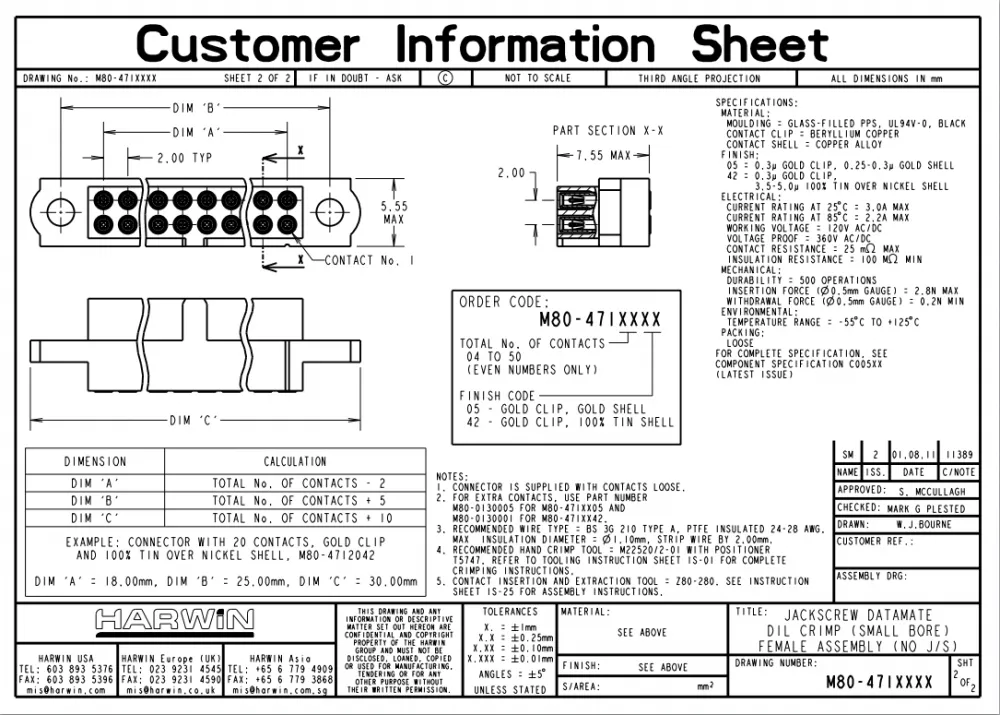

The HARWIN M80‑4711005 belongs to the well‑known Datamate J‑Tek high‑reliability connector family, delivering compact, robust interconnection solutions for demanding applications. Adopted proven four‑finger beryllium copper female contacts with premium gold plating, this receptacle maintains reliable electrical connection even under high‑shock and high‑vibration conditions. Without locking jackscrews, this 10‑pin double‑row connector offers a cost‑effective free‑hanging cable connection option. Crimp termination supports 24‑28 AWG cables, easy for wire harness processing. Polarized housing avoids mis‑mating error during assembly. With wide temperature tolerance and 500‑cycle mating durability, it is widely selected for industrial control, test equipment, robotics, avionics, transportation and other high‑reliability projects.
Applications
Industrial Control Equipment, Test & Measurement Instrument, Robotics, Unmanned Devices, Aerospace, Railway & Transportation, Military‑grade Electronic Systems, Medical Equipment, On‑board Electronic Modules
