Help CenterHarwin G125-MH12605M4P 26Pin Double Row Right Angle Through Hole Male Seat 1.25mm Spacing Gecko-SL Threaded Locking High Reliability Connector
Product Spotlights
2. 26‑position double‑row (13+13) compact layout at 1.25 mm pitch, high‑density design effectively saves valuable PCB space.
3. Right‑angle horizontal through‑hole (THT) termination with 3.2 mm long through‑board solder tails, provides strong soldering anchorage and excellent pull‑out resistance.
Related Products
-
Harwin M80-40000000-08-322-00-000 8Pin 4.0mm Spacing Datamate Power Non Locking Screw High-power Power ConnectorNegotiableMOQ: 5 Units -
M80‑4000000F1‑06‑325‑00‑000 HARWIN Connector, Receptacle 6‑Position Power Female, 4mm Pitch, Jackscrew Lock, 12AWG, Datamate‑Power SeriesNegotiableMOQ: 5 Units
-
M80‑5000000M1‑04‑335‑00‑000 HARWIN Connector, 4‑Position Male Plug, 4.0mm Pitch, Jackscrew Lock, 12AWG, Datamate‑Power Series Cable‑mount KitNegotiableMOQ: 5 Units
-
M80‑5000000M1‑06‑335‑00‑000 HARWIN Connector, 6‑Position Male Plug, 4.0mm Pitch, Jackscrew Lock, 12AWG, Datamate‑Power Cable‑mount KitNegotiableMOQ: 5 Units
-
M80‑4T10405F1‑04‑321‑00‑000 HARWIN Datamate Mix‑Tek, 4‑Signal + 4‑Power Contacts, 2.0mm / 4.0mm Pitch, Jackscrew LockNegotiableMOQ: 5 Units
G125‑MH12605M4P
Basic Information
Manufacturer: Harwin
Part Number: G125‑MH12605M4P
Series: Gecko‑SL G125 Miniature High‑Reliability Connector
Product Type: Right‑Angle Horizontal PCB‑Mount Male Header (Board‑side, Through‑Hole / THT)
Contact Configuration: 26‑position, double‑row (13+13) DIL layout
Pitch: 1.25 mm
Locking Hardware: Built‑in internal‑thread Screw‑Lok fixing
Mounting Style: Right‑angle horizontal through‑hole soldering
PCB Tail Length: 3.2 mm through‑board tails
Mating Pin Diameter: Ø 0.4 mm
Housing Color: Green
Housing Material: Polyamide (Nylon 4T)
Flammability Rating: UL94V‑0Harwin
Electrical Specifications
Rated Current: 2.8 A maximum per‑contact; 2 A simultaneous working current at 25 ℃
Contact Plating: Full gold‑plated finish on both mating surface and solder termination tails
Rated Voltage: 120 V
Withstand Voltage: 1000 V AC, 1 minute
Insulation Resistance: ≥ 1000 MΩ @ 500 V DC
Contact Resistance: ≤ 8 mΩ
Mechanical & Environmental Performance
Contact Material: Phosphor‑bronze male signal pins
Lock‑up Feature: Screw‑Lok internal‑thread locking system provides high retention‑force, firmly locks mated cable‑side connector and prevents accidental disconnection under vibration and shock
Polarization Feature: Built‑in polarization anti‑mis‑insertion key avoids reverse‑mating‑caused short‑circuit and equipment damage
Mating‑Unmating Cycles: Up to 500 reliable operations
Vibration & Shock Resistance: Verified to Harwin high‑reliability industrial vibration‑shock specification
Operating Temperature: ‑65 ℃ ~ +150 ℃ wide temperature‑range operationHarwin
Maximum Soldering Temperature: 260 ℃, 10 seconds peak duration
Packaging

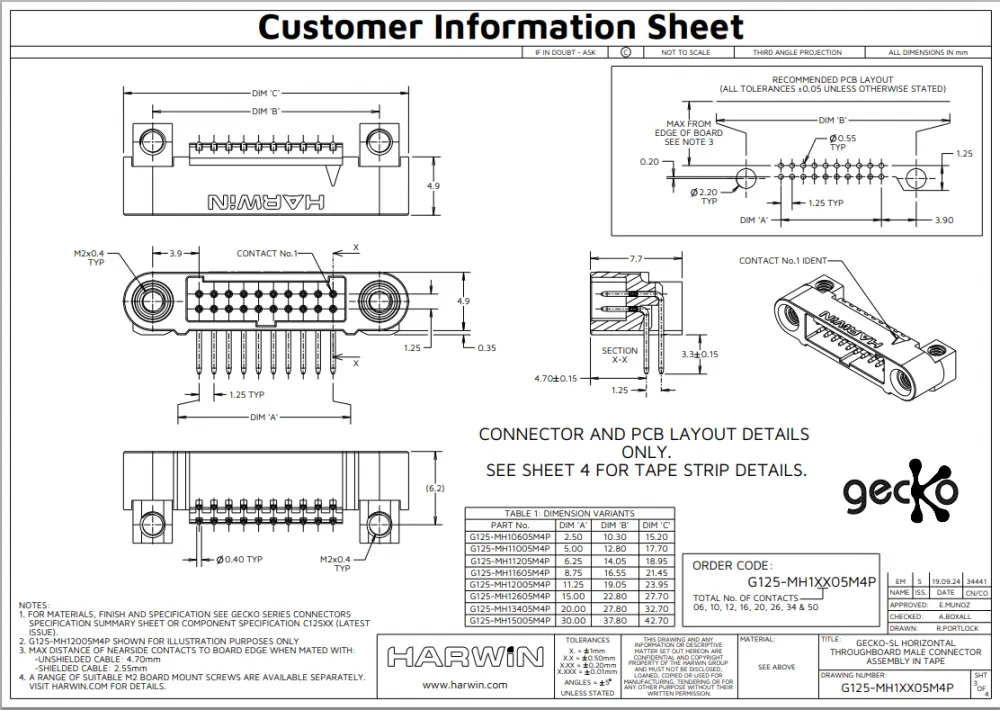

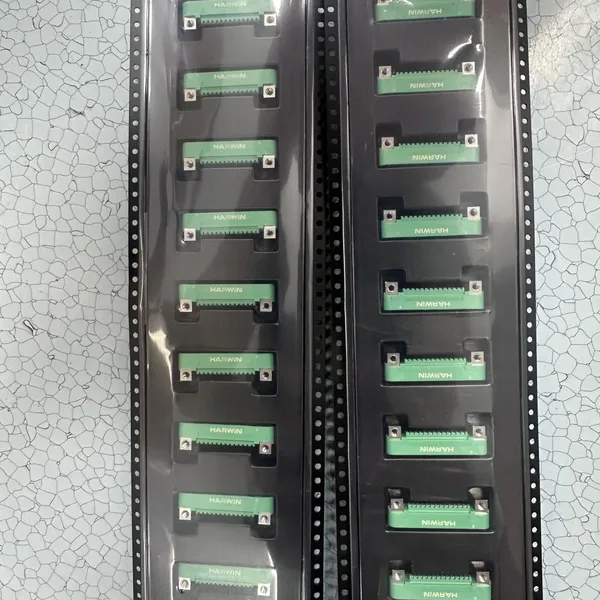

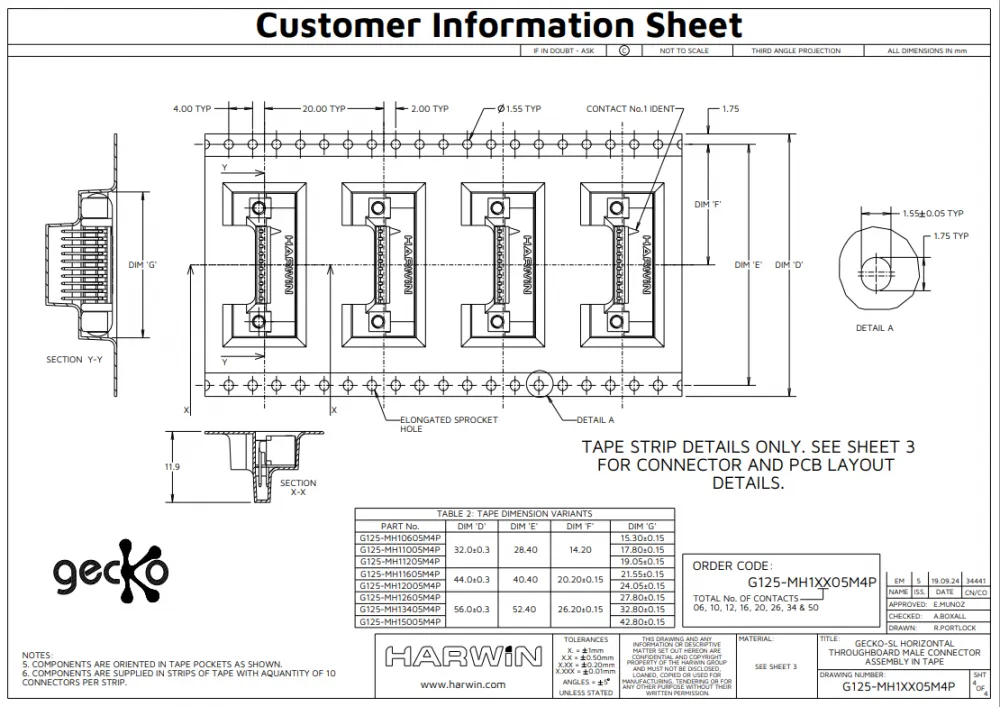

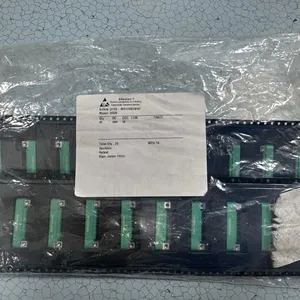

Supplied in tape‑strip packaging suitable for automated assembly productionHarwin.
Compliance
RoHS Compliant (2015/863/EU), no exemption required
REACH Compliant, SVHC‑free
Key Advantages
Original Harwin Gecko‑SL miniature high‑reliability wire‑to‑board header, compact‑size solution designed for vibration‑prone industrial and rugged portable equipment.
1.25 mm fine‑pitch double‑row 26‑channel layout achieves high‑density signal interconnection, greatly saving valuable PCB board space.
Right‑angle horizontal through‑hole structure with 3.2 mm long through‑board solder tails delivers outstanding mechanical anchorage and pull‑out resistance after soldering.
Screw‑Lok threaded‑locking mechanism eliminates connector loosening risk in long‑term vibration environments, greatly improving connection stability.
Full gold‑plated phosphor‑bronze contacts provide low contact resistance, excellent anti‑oxidation and anti‑corrosion performance, ensuring stable signal transmission for the whole service life.
High‑temperature‑resistant polyamide housing with UL94V‑0 flame‑retardant property, stable performance under wide‑range extreme‑temperature working‑conditions.
Polarised housing design effectively reduces assembly‑error rate during manual wiring or mass‑production installation.
Typical Applications
Industrial automation control equipment, robot motion‑control systems, unmanned drones, onboard electronic units, medical diagnostic & monitoring devices, portable test‑and‑measurement instruments, aerospace auxiliary equipment and high‑density signal interconnection projects.
