Help CenterM80-4712605 Original Harwin Datamate J-Tek High Reliability Connector 26P Double Row Female Head 2.0mm Wire End Female Socket Kit
Product Spotlights
2. 26‑position double‑row layout(13+13 DIL), compact 2.0 mm pitch for multi‑channel signal interconnection
3. Free‑hanging cable‑side connector without jack‑screw locking, for cable‑to‑board / cable‑to‑cable mating
4. Beryllium‑copper four‑finger female contacts, stable clamping force, excellent vibration & shock‑resistance
Related Products
-
M80-4710605 Original Harwin Datamate J-Tek High Reliability Connector 6P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units -
Harwin M80‑5000000M1‑06‑335‑00‑000 Male Cable Plug Kit, 4.0mm , 20A Power Connector, 12 AWGNegotiableMOQ: 5 Units
-
Harwin M80‑4T10405F1‑04‑321‑00‑000 4‑Power+4‑Signal Vertical Through‑Hole Female PCB ReceptacleNegotiableMOQ: 5 Units
-
Harwin M80-5000000M1-08-331-00-00-000 8Pin Single Row Cable Male Head Kit 4.0mm Pitch With Floating Lock Screw 20A Welded Power ConnectorNegotiableMOQ: 5 Units
-
Harwin M80-500200510+10 Pos. Male Plug DIL Straight 3.3mm THT Connector, Jackscrews, GoldNegotiableMOQ: 5 Units

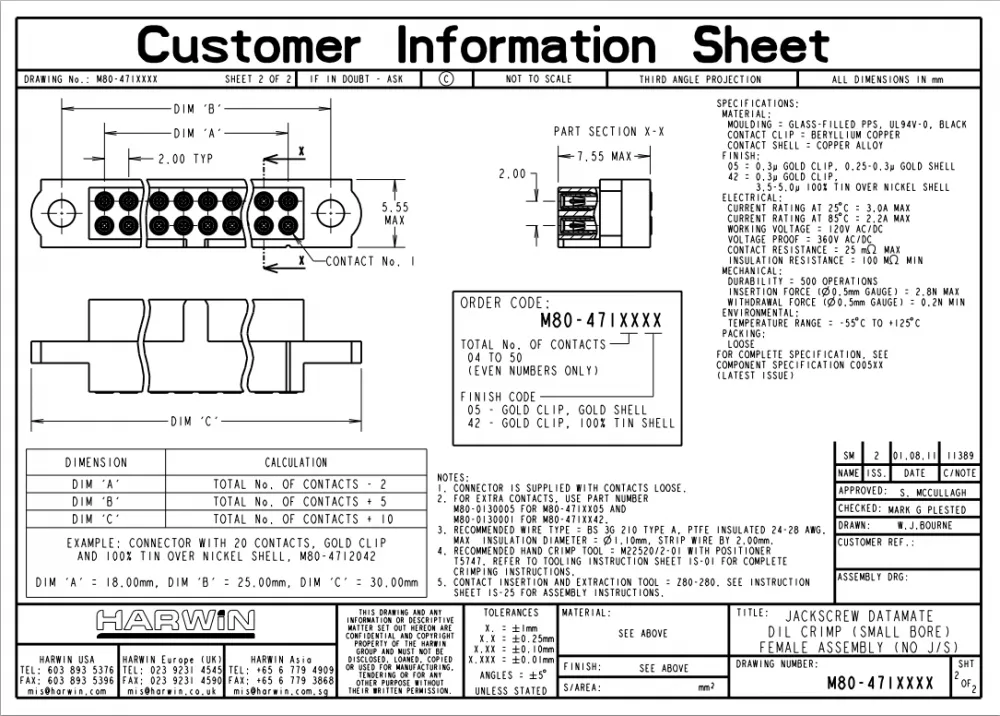

Basic Information
Manufacturer: Harwin
Part Number: M80‑4712605
Series: Datamate J‑Tek High‑Reliability Connector
Product Type: Cable‑side female receptacle kit, free‑hanging (cable‑to‑board / cable‑to‑cable interconnection)
Position: 26‑pin, double‑row layout (13+13 DIL)
Pitch: 2.0 mm
Fastening: Without jack‑screw locking hardware
Termination: Loose crimp‑style female contacts
Compatible Wire Gauge: 24‑28 AWG stranded signal wire
Housing Color: Black
Housing Material: High‑temperature PPS plastic, UL94V‑0 flame‑retardant grade
Electrical Specifications
Rated Current: 3.3 A maximum per‑pin; 3 A simultaneous working current at 25℃ ambient temperature
Contact Plating: Full gold‑plated on both contact zone and termination area, low contact resistance, outstanding anti‑oxidation and corrosion‑resistant performance
Rated Voltage: 120 V
Insulation Resistance: Excellent insulation performance, stable for long‑time multi‑channel signal transmission
Mechanical & Environmental Performance
Contact Material: Beryllium‑copper four‑finger female socket contacts, multi‑point elastic clamping maintains stable contact pressure under vibration and shock conditions
Polarization Feature: Built‑in polarization anti‑mis‑insertion key, effectively prevents reverse‑mating and equipment damage
Mating Cycles: Up to 500 reliable mating‑unmating cycles
Vibration & Shock Resistance: Passed strict high‑reliability industrial vibration and impact tests
Operating Temperature: ‑55 ℃ ~ +125 ℃ wide temperature range, suitable for harsh industrial‑temperature environments

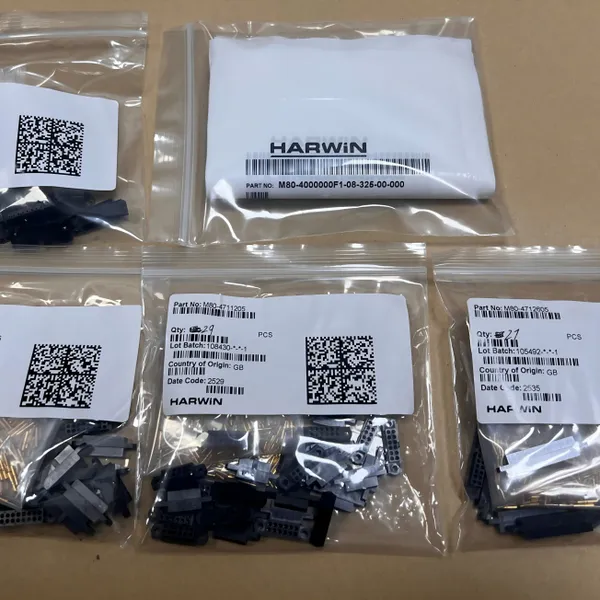

Kit Composition
Supplied as loose components, not pre‑assembled:
1 × 26‑position double‑row female housing
26 × loose crimp‑type female signal contacts
Important Note: Contacts are not pre‑loaded into housing. Crimp wires onto contacts first, then insert terminals from the rear of housing until fully latched.
Key Advantages
Genuine Harwin Datamate J‑Tek hi‑reliability connector, rugged industrial‑grade multi‑channel signal interconnection solution
Compact double‑row 26‑pin, 2.0 mm pitch design, saves valuable internal space for compact‑size equipment
Beryllium‑copper four‑finger contacts deliver stable signal transmission even under humid, dusty industrial environments
Loose‑contact kit supports custom‑length wiring harness production, flexible for cabinet internal wiring
Polarization key greatly lowers wiring error risk during on‑site assembly
High‑temperature flame‑retardant PPS housing guarantees long‑term safety and reliability under extreme‑temperature working conditions
Typical Applications
Industrial automation & robotics control cabinets, servo signal wiring, test & measurement instruments, unmanned aerial vehicles, non‑high‑shock onboard electronic equipment, medical diagnostic & monitoring devices, communication equipment internal multi‑channel IO interconnection, ground‑based aerospace test harnesses, photovoltaic inverter control systems.
