Help CenterM80-4000000F1-06-325-00-000 HARWIN 6 Pos. Female Receptacle SIL Straight 12 AWG Cable Connector Kit, Slotted Jackscrews
Product Spotlights
2. Single row 6-pin power socket, single channel rated 20A high current, compatible with 12AWG cable Harwin
3. Slotting Jack screw screws for locking, anti vibration and anti loosening, stable connection
4. Beryllium copper four claw contact+gold plating, wide temperature operation from -55 ℃ to+125 ℃, impact resistance
Related Products
-
M80-4711205 6+6 Pos. Female Receptacle DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units -
M80-5710605 3+3 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-5711205 6+6 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-4712605 Original Harwin Datamate J-Tek High Reliability Connector 26P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units
-
M80-4710605 Original Harwin Datamate J-Tek High Reliability Connector 6P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units

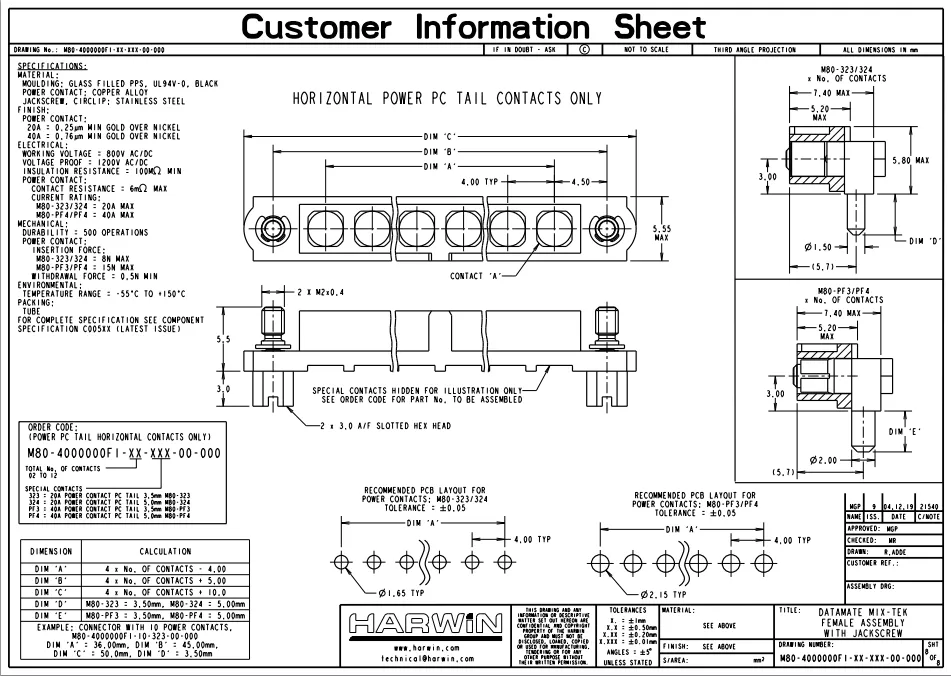

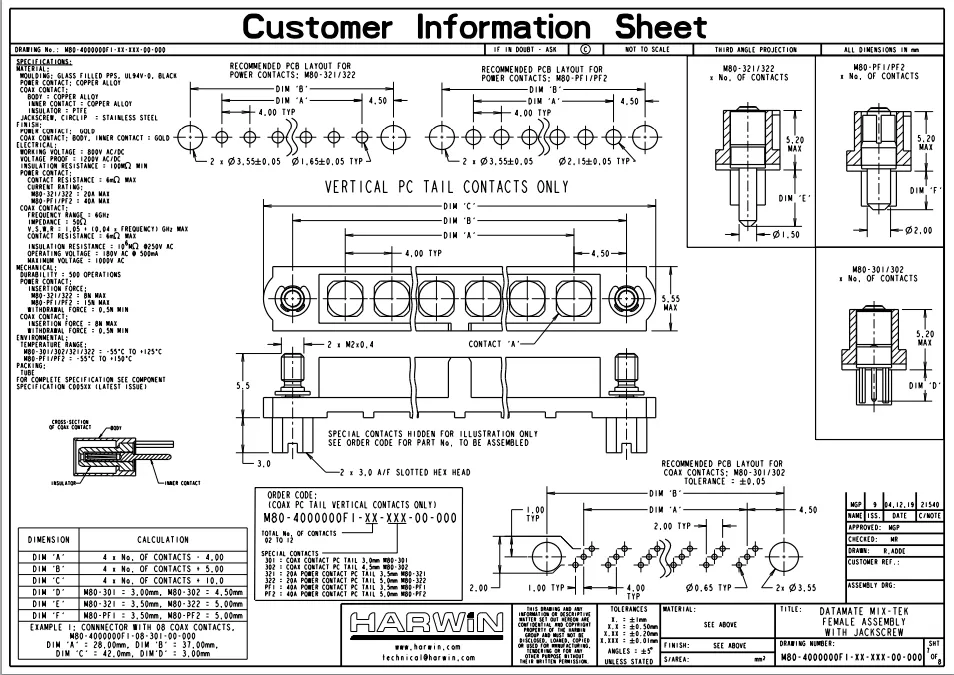

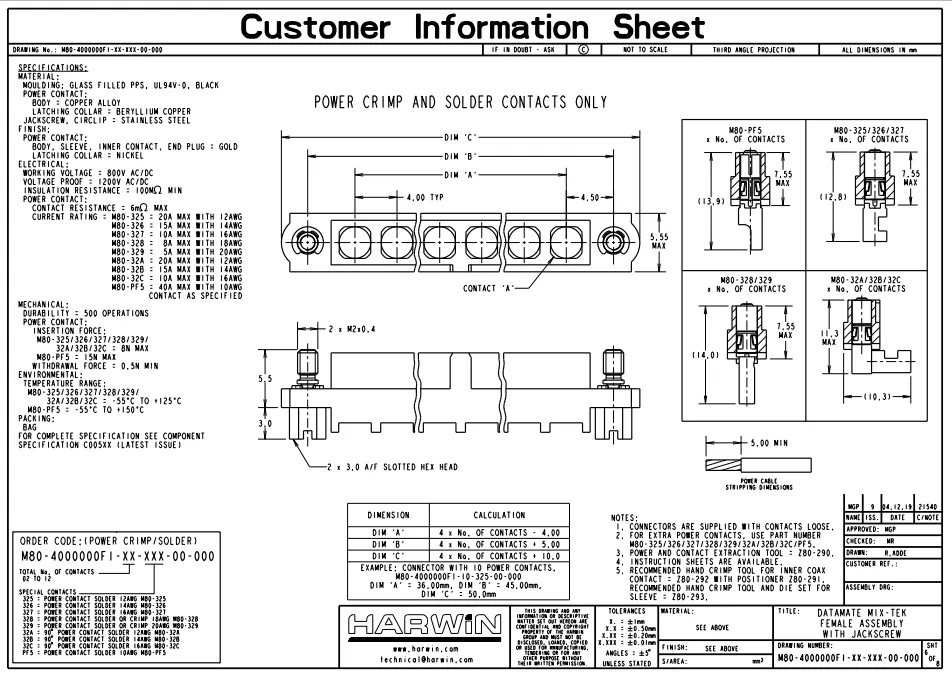

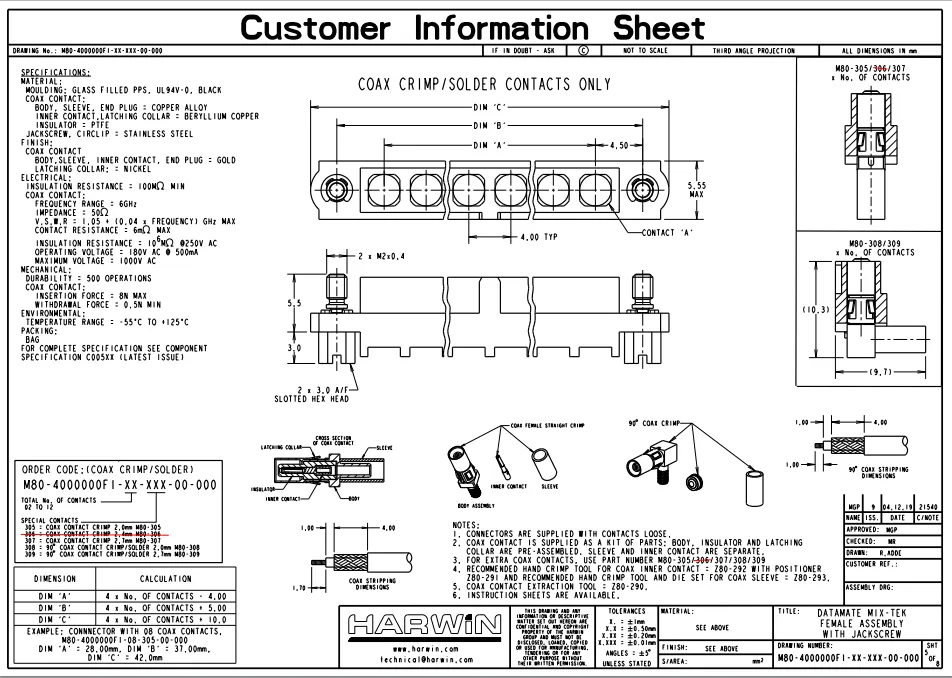

Basic Information
Manufacturer: Harwin
Part No.: M80‑4000000F1‑06‑325‑00‑000
Series: Datamate Mix‑Tek (Datamate‑Power) High‑Reliability Rectangular Connector
Product Type: Cable‑side female receptacle kit (housing + loose power contacts, contacts unassembled)
Mounting Style: Free‑hanging, cable‑to‑board connection
Contact Arrangement: Single‑in‑line (SIL), 6 positions
Pitch: 4.0 mm
Housing Material: Black engineering plastic
Electrical Specifications
Rated Current per Contact: 20A (M80‑325 high‑power power contact)
Compatible Wire Gauge: 12 AWG stranded cable
Termination Method: Crimp / Solder
Rated Voltage: 120V
Contact Plating: Gold‑plated contact area for low contact resistance, excellent anti‑oxidation performance and stable long‑term conductivity
High insulation resistance for continuous power supply applications
Mechanical & Environmental Performance
Locking Mechanism: Pre‑installed slotted floating jack‑screws on both sides of the housing. The floating structure compensates for assembly tolerances, providing secure mating and preventing accidental disconnection caused by vibration.
Contact Structure: Beryllium copper four‑finger female contacts. Multi‑point elastic clamping ensures stable contact pressure and minimal elasticity degradation after repeated mating cycles.
Polarization Key: Built‑in anti‑mis‑insertion key to avoid reverse insertion and equipment short‑circuit damage.
Durability: Designed for high‑reliability applications, supports hundreds of mating‑unmating cycles.
Vibration & Shock Resistance: Passed strict industrial‑grade vibration and shock tests, suitable for long‑term operation under harsh vibrating conditions.
Operating Temperature: ‑55℃ ~ +125℃, wide temperature range for extreme‑temperature environments.
Kit Contents

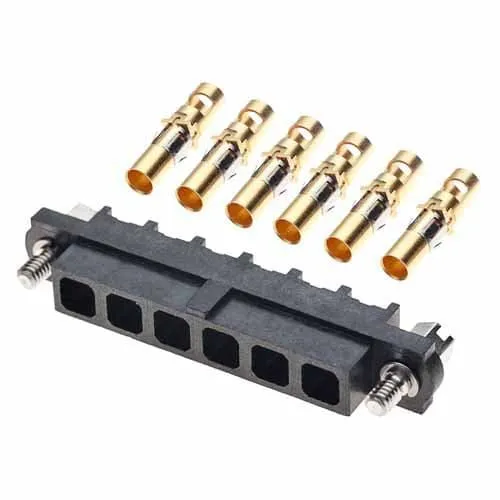

Supplied as loose components: 1 × 6‑position single‑row black connector housing (with slotted jack‑screws) 6 × loose M80‑325 high‑power female contacts
Note: Contacts are not pre‑loaded into the housing. Assemble wires to contacts first, then insert contacts from the rear of the housing until fully latched.
Key Advantages
Military‑grade high‑reliability performance, designed for zero‑failure power supply equipment.
High‑current carrying capacity up to 20A per pin for multi‑channel high‑power distribution.
Jack‑screw locking structure effectively prevents plug loosening in mobile or vibration‑prone equipment.
Gold‑plated contacts resist corrosion, reducing risk of poor connection in dusty or humid industrial environments.
Loose‑contact kit supports customized wire length and flexible internal chassis wiring.
Polarization key reduces wiring errors during on‑site assembly.
Typical Applications
Industrial control equipment, instrumentation power interfaces, avionics, railway on‑board electronic control systems, robot internal power supply, high‑power security devices, medical equipment wiring harnesses, base station internal power connections.
