Help CenterM80-4711205 6+6 Pos. Female Receptacle DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, Gold
Product Spotlights
2. 12‑position double‑row layout, compact 2.0mm pitch, space‑saving wiring solution
3. Proven 4‑finger beryllium‑copper contacts, excellent vibration & shock resistance
Related Products
-
M80-5710605 3+3 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units -
M80-5711205 6+6 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-4712605 Original Harwin Datamate J-Tek High Reliability Connector 26P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units
-
M80-4710605 Original Harwin Datamate J-Tek High Reliability Connector 6P Double Row Female Head 2.0mm Wire End Female Socket KitNegotiableMOQ: 5 Units
-
Harwin M80‑5000000M1‑06‑335‑00‑000 Male Cable Plug Kit, 4.0mm , 20A Power Connector, 12 AWGNegotiableMOQ: 5 Units

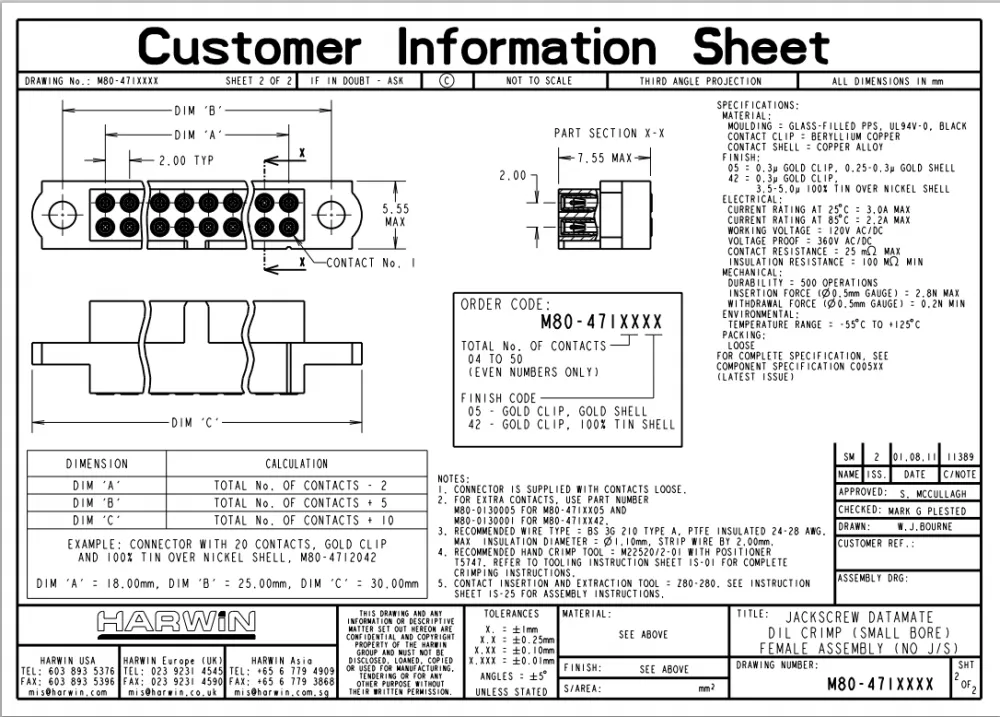

Basic Information
Manufacturer: Harwin
Part Number: M80‑4711205
Product Series: Datamate J‑Tek High‑Reliability Connector
Connector Type: Cable‑side female receptacle kit, free‑hanging (cable‑to‑board / cable‑to‑cable)
Position: 12‑pin, double‑row (6+6 DIL layout)
Pitch: 2.0 mm
Fastening: No jack‑screw locking hardware
Termination: Crimp‑style loose contacts
Compatible Wire Gauge: 24‑28 AWG stranded signal wire
Housing Color: Black
Housing Material: High‑temperature PPS plastic, UL94V‑0 flame‑retardant gradeHarwin
Electrical Specifications
Rated Current: 3.3A per contact; 3A simultaneous working current at 25℃
Contact Plating: Gold‑plated contact zone and termination area, low contact resistance, excellent anti‑oxidation and corrosion‑resistant performance
Rated Voltage: 120V
Insulation Resistance: High insulation performance, stable for long‑time signal transmission
Mechanical & Environmental Performance
Contact Structure: Beryllium‑copper four‑finger female socket contacts, multi‑point elastic clamping, maintain stable contact pressure under vibration and shock conditions
Polarization Feature: Built‑in polarization anti‑mis‑insertion key, prevents reverse‑mating and equipment damage
Mating Cycles: Up to 500 times of reliable plug‑and‑unplug operation
Vibration & Shock Resistance: Passed strict high‑reliability industrial vibration and impact tests
Operating Temperature: ‑55℃ ~ +125℃ wide temperature range, suitable for harsh industrial‑temperature environments

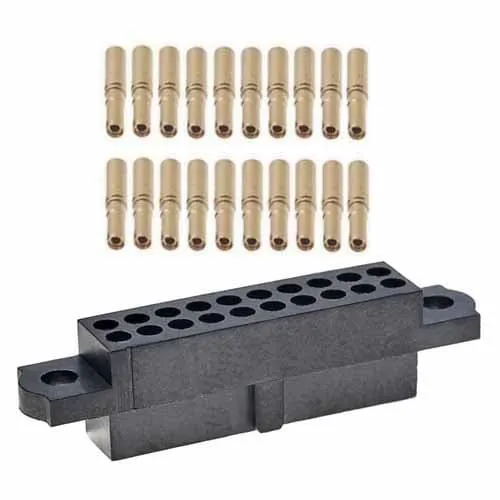

Kit Composition
Supplied as loose components, not pre‑assembled: 1 × 12‑position double‑row female housing 12 × loose crimp‑type female signal contacts
Important Note: Contacts are not pre‑loaded into housing. Crimp wires onto contacts first, then insert terminals from the rear of housing until fully latched.
Key Advantages
Original Harwin Datamate J‑Tek hi‑rel solution, rugged industrial‑level performance for signal interconnection
Compact double‑row 2.0 mm pitch design, saves valuable internal space inside compact equipment
Four‑finger beryllium‑copper contacts deliver outstanding vibration resistance, ensures uninterrupted signal transmission
Full gold‑plated contacts greatly reduce risks of poor connection caused by oxidation in humid or dusty environments
Loose‑contact kit supports custom‑length wiring harness production, flexible for cabinet internal wiring
Polarization key effectively lowers wiring error risk during on‑site assembly
High‑temperature flame‑retardant PPS housing guarantees long‑term safety and reliability under extreme‑temperature conditions
Typical Applications
Industrial control systems, robot signal wiring, unmanned aerial vehicles, onboard electronic equipment, test & measurement instruments, medical device harnesses, communication equipment internal signal interconnection.
