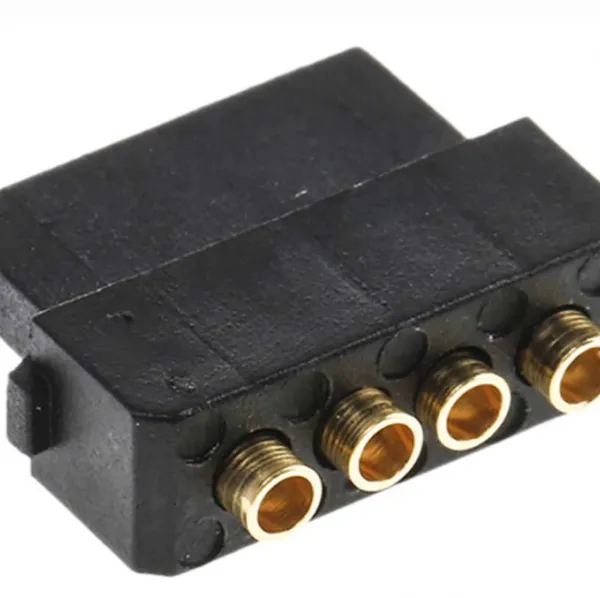

Help CenterM80-8980405 HARWIN 4-way Single Row Crimped Female Socket Connector Kit With 2mm Spacing
Product Spotlights
- ✅ 4-way single row female head crimping kit, with a standard spacing of 2.0mm
- ✅ Beryllium copper four claw spring clip+gold-plated contacts, stable and uninterrupted connection under strong vibration
Related Products
-
HARWIN M80‑5002005 Datamate J‑Tek 2mm Pitch 20‑Way DIL Vertical Male Header, Through‑Hole With Jackscrews, Gold‑PlatedNegotiableMOQ: 5 Units -
M80-4000000F1-06-325-00-000 HARWIN 6 Pos. Female Receptacle SIL Straight 12 AWG Cable Connector Kit, Slotted JackscrewsNegotiableMOQ: 5 Units
-
M80-4711205 6+6 Pos. Female Receptacle DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-5710605 3+3 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-5711205 6+6 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
Product Overview
M80-8980405 is a high-reliability crimp connector kit from HARWIN Datamate L-Tek M80 series, for cable-to-cable and cable-to-board connections. The kit includes 1pcs 4-way SIL housing and 4pcs gold-plated female crimp contacts (PN: M80-0130005). Adopting standard open-barrel crimp design, it delivers stable and reliable connection, widely used in high-precision and harsh-condition electronic devices.Kit Includes
- 1 × 4Way SIL Black Connector Housing
- 4 × Gold-plated Female Crimp Contacts (M80-0130005)

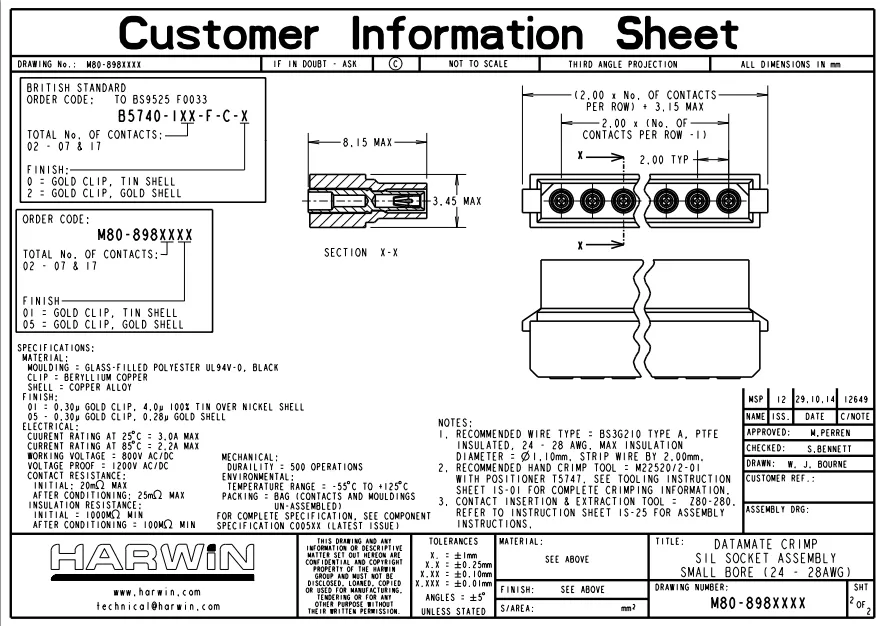

Technical Specifications
- Manufacturer: HARWIN (UK)
- Part Number: M80-8980405
- Series: Datamate L-Tek High Reliability Series
- Positions: 4 Pin (Single Row SIL)
- Pitch: 2.0mm
- Type: Female Crimp Receptacle
- Wiring Method: Crimp
- Wire Gauge: 24~28 AWG
- Current Rating: 3.3A (25℃) / 2.2A (85℃)
- Voltage Rating: 800V AC/DC
- Temperature Range: -55℃ ~ +125℃
- Contact Material: Beryllium Copper
- Plating: Gold-plated (anti-oxidation)
- Housing Material: Glass-filled PBT
- Flammability: UL94-V0
- Mating Cycles: 500 Times
- Resistance: 10G Vibration / 100G Impact
- Certification: RoHS Compliant
Core Features & Advantages
- Military-grade Stability: Four-finger beryllium copper contacts ensure stable conduction against strong vibration and impact, no signal dropout.
- Gold-plated Contacts: Anti-oxidation and anti-corrosion, low contact resistance for long-term stable performance.
- Fine Wire Compatibility: Optimized for 24-28AWG thin cables, compact and flexible for miniaturized equipment.
- Wide Temp Adaptability: Works stably from -55℃ to +125℃, suitable for extreme industrial and outdoor environments.
- Anti-reverse Insertion: Built-in polarization key avoids assembly errors and improves efficiency.
- Safe & Durable: UL94-V0 flame-retardant housing ensures equipment safety and long service life.
- Lockable Design: Compatible with latch accessories for anti-loosening and drop-proof connection.
