Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Harwin M80‑4C10405F2‑04‑325‑00‑000 Datamate Mix‑Tek 4+4 Position Female Cable Connector Kit

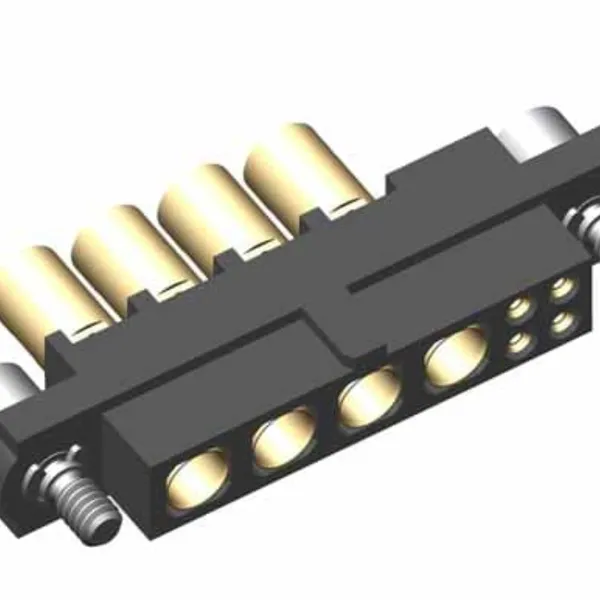

Harwin M80‑4C10405F2‑04‑325‑00‑000 Datamate Mix‑Tek 4+4 Position Female Cable Connector Kit
Product Spotlights
1. **Integrated Design of Power and Signal Mixing**
2. **High-reliability floating screw locking (Hexagon insert jack screw)**
2. **High-reliability floating screw locking (Hexagon insert jack screw)**
Negotiable
MOQ: 5 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ISO 9001, ROHS
Application:
Other
Interface Type:
DC/DC
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
M80-8980405 HARWIN 4-way Single Row Crimped Female Socket Connector Kit With 2mm SpacingNegotiableMOQ: 5 Units -
HARWIN M80‑5002005 Datamate J‑Tek 2mm Pitch 20‑Way DIL Vertical Male Header, Through‑Hole With Jackscrews, Gold‑PlatedNegotiableMOQ: 5 Units
-
M80-4000000F1-06-325-00-000 HARWIN 6 Pos. Female Receptacle SIL Straight 12 AWG Cable Connector Kit, Slotted JackscrewsNegotiableMOQ: 5 Units
-
M80-4711205 6+6 Pos. Female Receptacle DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
-
M80-5710605 3+3 Pos. Male Plug DIL Straight 24-28 AWG Cable Connector Kit, no Jackscrews, GoldNegotiableMOQ: 5 Units
Certification
ISO 9001, ROHS
Application
Other
Interface Type
DC/DC
Terminal Material
Copper
Trademark
Harwin
Origin
UK

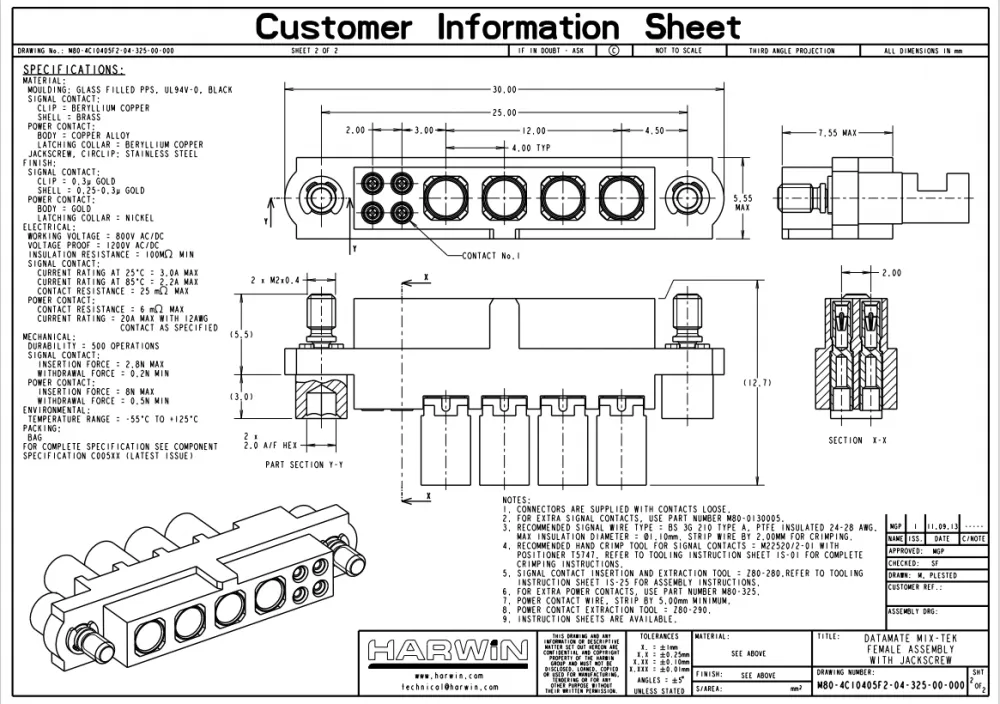

M80‑4C10405F2‑04‑325‑00‑000, Harwin Datamate Mix‑Tek 4+4 Position Female Cable Connector Kit. 4 Power contacts rated up to 20A per contact,4 Signal contacts max 3.3A. 2.0mm pitch for signal contacts,4.0mm pitch for power contacts. Floating hex‑socket jackscrew locking design,gold plated beryllium‑copper contacts,‑55℃~+125℃ operating temperature,UL94V‑0 PPS housing. Ideal for high‑reliability wiring in robotics,railway,aviation and industrial control equipment.
