Help CenterGold Cil Processing Plant Equipment
Product Spotlights
2.Integrated leaching & adsorption, short production cycle
3.Full turn‑key solution from crushing to gold smelting
4.Compact layout, saves land and plant investment
5.Good adaptability for low‑grade gold ore and tailings
6.Wear‑resistant & anti‑corrosion core parts, long service life
7.Low reagent and carbon consumption, lower running cost
8.Optional PLC automatic control, simple operation
Related Products
-
Flotation + CIL Gold Processing Plant | Combined Flotation & Carbon-in-Leach Gold RecoveryNegotiableMOQ: 1 Combo -
Alluvial Gold CIL Processing Plant | Placer Gold Carbon-in-Leach Recovery SystemNegotiableMOQ: 1 Combo
-
Fine Gold Recovery CIL Plant | High-Efficiency Leaching for Fine-Grained Gold OreNegotiableMOQ: 1 Combo
-
Professional Gold CIL Plant Supplier | One-Stop Gold Mining Equipment ProviderNegotiableMOQ: 1 Combo
-
800 TPD Large Gold CIL Plant | High-Capacity Gold Extraction Processing FacilityNegotiableMOQ: 1 Combo
Product Description

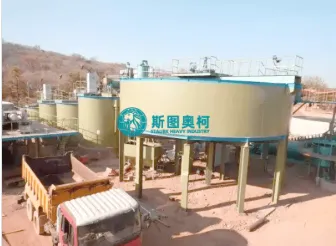

Gold CIL (Carbon-in-Leach) processing plant equipment is a complete set of beneficiation machinery designed for efficient gold extraction from gold ores, especially suitable for low-grade gold ores, oxide gold ores and gold tailings. It integrates crushing, grinding, leaching, adsorption, desorption, electrolysis and smelting processes into a unified production line, realizing automated and continuous gold recovery. This equipment is widely used in small to large-scale gold mining enterprises, featuring strong adaptability to different ore properties and stable operation in harsh mining environments.
Key Features
High gold recovery rate, reaching 92-98% for oxide gold ores, maximizing gold resource utilization
Integrated leaching and adsorption process, shortening production cycle and improving processing efficiency
Compact and modular design, saving plant construction space and reducing infrastructure investment
Wear-resistant and anti-corrosion core components, ensuring long service life and low maintenance cost
Optional PLC automatic control system, realizing intelligent operation and reducing labor intensity
Low consumption of reagents and activated carbon, lowering overall production and operation costs
Equipped with tail liquid treatment system, meeting environmental protection emission standards
Customizable processing capacity, adapting to different production scales from small to large mines
Working Principle
The working principle of gold CIL processing plant equipment is based on the simultaneous leaching and adsorption of gold in ore slurry. First, the raw gold ore is crushed into fine particles through crushing equipment, then ground into qualified pulp by grinding equipment. The pulp is sent to leaching tanks, where gold is dissolved into gold cyanide complex by cyanide solution under alkaline conditions (pH controlled at 10-11). Meanwhile, activated carbon is added into the leaching tanks, which adsorbs the dissolved gold cyanide complex onto its surface. After adsorption, the carbon loaded with gold is separated from the pulp, and then undergoes desorption and electrolysis processes to obtain high-purity gold mud. Finally, the gold mud is smelted to produce gold ingots. The tailings after gold recovery are treated by the tail liquid treatment system to meet environmental protection requirements before discharge.
