1. Overview:

According to the regulations of the national automotive industry quality standards, automotive shock absorbers must undergo a dynamometer test before leaving the factory to conduct a factory inspection on the performance of the shock absorbers. Therefore, the dynamometer is an essential testing instrument on the shock absorber production line.

There are various structural forms of shock absorber dynamometers, such as double-column lower crank mechanical transmission testing machines, electro-hydraulic servo testing machines, etc. Comparing the above two testing machines with different structural forms, each has its own characteristics. The mechanical testing machine has a simple structure and a low price. However, due to its relatively high installation position, it is inconvenient to operate, the operator's labor intensity is relatively high, and the production efficiency is low. This is especially important in the case of mass production when convenience of operation is emphasized. The other type, the electro-hydraulic servo testing machine, has complete functions and a wide range of applications. However, the hydraulic station generates relatively high noise, occupies a large area, and the hydraulic system has relatively high requirements for the environment. In particular, it is expensive. Therefore, it is more suitable for the laboratories of the factory's quality inspection department for product development and comprehensive product performance testing. Therefore, mechanical dynamometers are generally used for the dynamometer tests of factory products before leaving the factory.

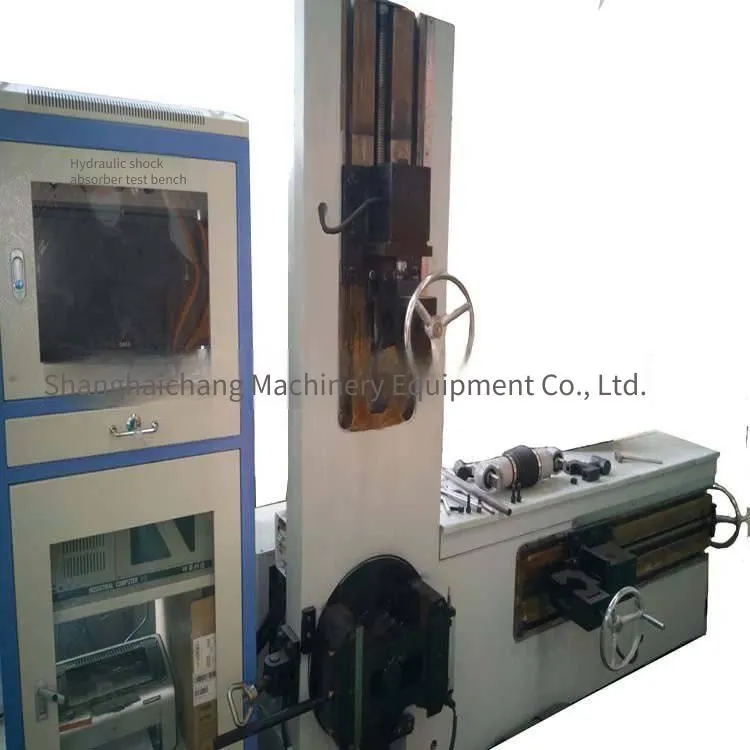

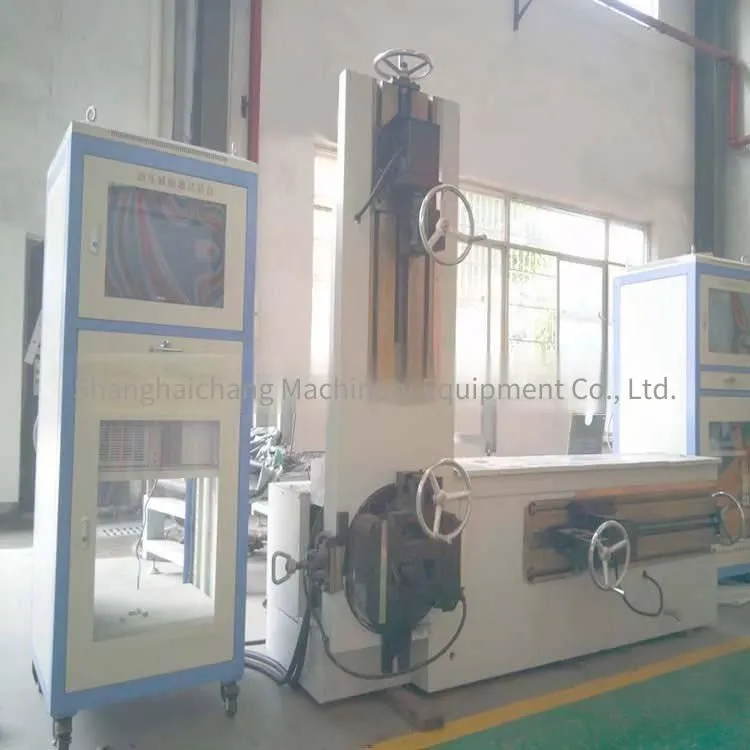

Based on our many years of experience and combined with the structural characteristics of domestic and foreign products, we have designed a dynamometer with an upper crank open structure. This machine is a special testing equipment for testing the performance of shock absorbers. It uses a variable-frequency motor for speed regulation and is computer-controlled. It can draw dynamometer diagrams, issue alarms for unqualified products, and output test reports. It is mainly used for on-line detection.

2. Features:

1. Compact structure and small floor area, suitable for use on the factory production line.

2. Due to the upper crank structure, the installation position of the shock absorber is relatively low, about 600 - 800mm from the ground. Therefore, the installation and operation are very convenient and labor-saving. This feature is particularly prominent in the case of mass production on the production line.

3. The shock absorber is automatically hydraulically clamped, with reliable clamping and high production efficiency.

4. The installation position of the shock absorber is adjustable, suitable for conducting dynamometer tests on various types and varieties of shock absorbers.

5. The upper clamping body is ingeniously designed, extremely convenient to operate and replace. Different fixtures can be replaced to conduct dynamometer tests on shock absorbers with different structural forms and specifications.

6. Computer-controlled, the test results and dynamometer diagrams are displayed on the screen, and it has an audio-visual alarm function to automatically determine whether the product is qualified.

3. Main technical indicators:

1. Load: 30KN

2. Measurement accuracy: ±1%

3. Speed: 1.05m/s

4. Amplitude: ±50mm

5. Range of the workpiece to be measured: 500 - 800mm
