Torsional Fatigue Testing Machine
1. Applications:
This test bench can perform dynamic torsional fatigue tests on various shafts and rods. It is suitable for torsional fatigue life tests of components such as automobile drive shafts, constant velocity universal joints, ball cages, automobile half shafts, and automobile drive axle housings.
This test bench can realize symmetrical and asymmetrical cyclic torsional fatigue tests. During the test, the computer controls the test bench to run automatically according to the set parameters. The screen displays the torque value, angle value, frequency, amplitude, number of cycles, and loading waveform. When the set number of cycles is reached, the machine stops automatically and prints the result report. The test bench also has functions such as protection and shutdown for click overload, test torque and rotation angle overload, and alarm for excessive oil temperature and clogged oil filter.
2. Equipment Composition

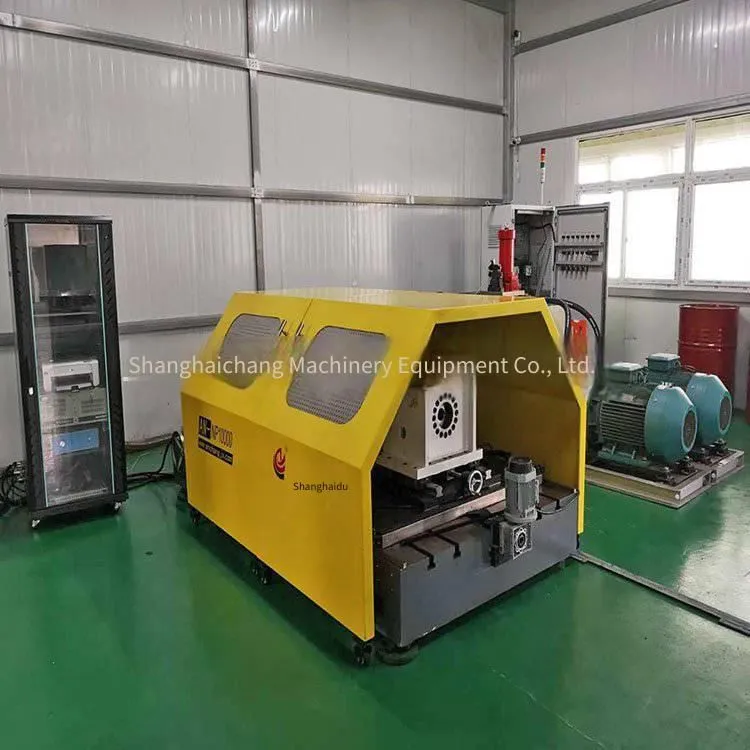

The torsional fatigue test bench is mainly composed of the main machine system, hydraulic system, servo control system, high-voltage control system, computer data processing system, and special fixtures.
● Main Machine:

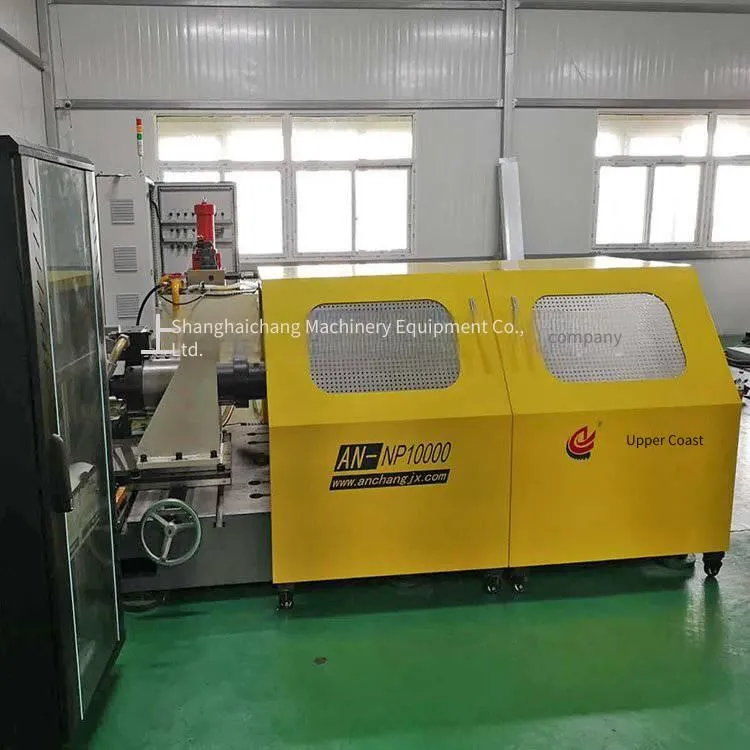

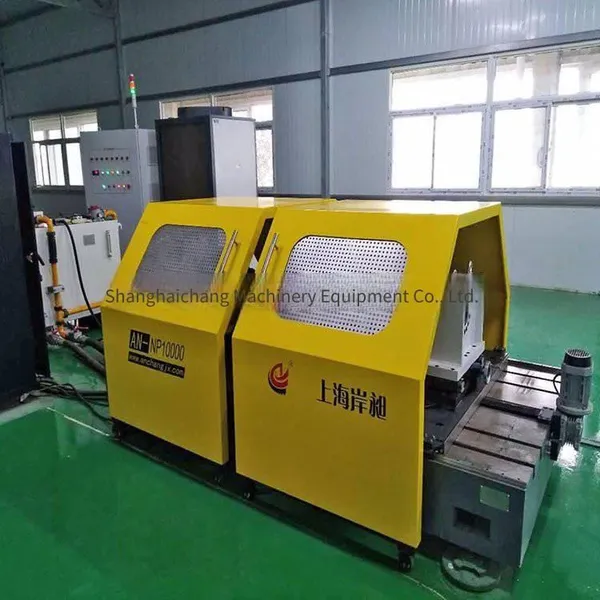

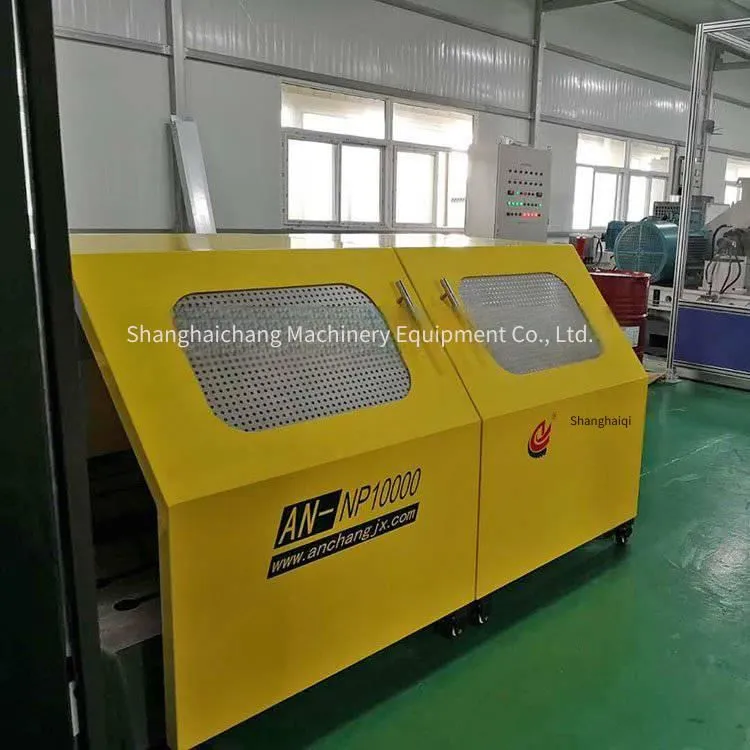

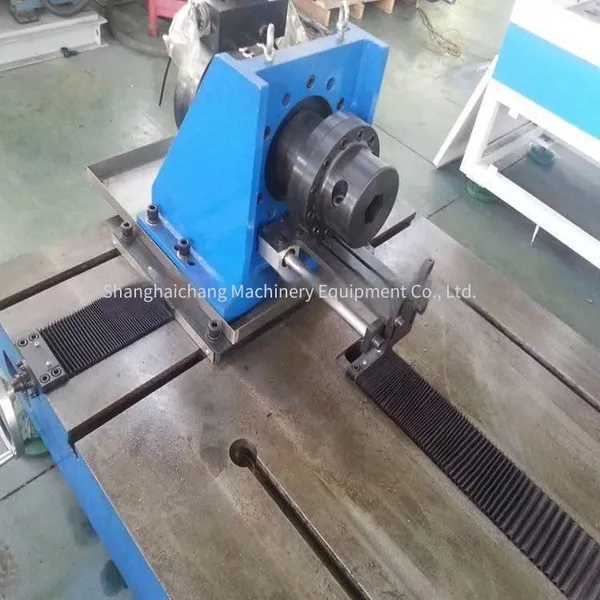

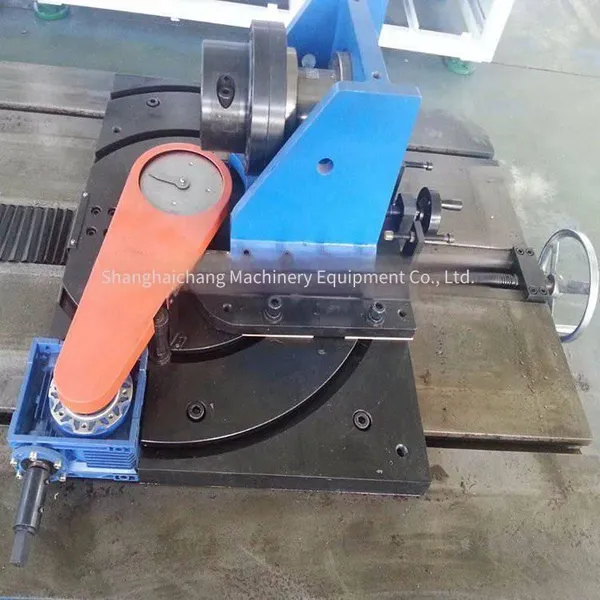

This machine adopts a bench-type structure. The drive system, fixed fixture, movable support, etc. are all fixed on the test platform. Their installation is guaranteed by the process. Both the drive part and the measurement (torque sensor, angle sensor) part of the test bench are installed in the drive pedestal. The torque applied directly to the test specimen by the rotary actuator through the torque sensor is directly measured and output by the torque sensor, while the rotation angle is measured by the photoelectric encoder and outputs pulse signals.
The main machine bench is equipped with a dynamic and static bidirectional high-precision torque sensor. The rotary servo actuator (loading execution component) is equipped with an electro-hydraulic servo valve for main control. The main actuator has low friction, low damping, and good anti-lateral force, and a high-resolution photoelectric angle sensor is coaxially installed. In this way, the measurement of torque and angle can be achieved.
● Hydraulic System:
The hydraulic oil source pump unit consists of a three-phase asynchronous motor and a gear pump. The system pressure is set through the relief valve. The pressure oil output to the system is filtered by a filter with a filtration accuracy of less than 6μm to ensure the safe and reliable operation of the servo valve. The return oil filter filters the hydraulic oil returning to the oil tank to ensure the cleanliness of the hydraulic oil in the tank.
● Oil Tank Assembly
The oil tank is made of steel plates by gas shielded welding. The inside of the tank is divided into two areas (oil suction area, oil return area) by a partition, and there is an oil drain port. An oil inlet filter is installed at the oil suction port of the lower single pump, and a rubber hose is used for the oil pipe connected to the pump oil inlet to prevent vibration. A liquid level sensor is installed on the oil tank cover to give a low liquid level alarm, automatically stop the pump when the liquid level exceeds the limit, and prompt the normal height and upper limit height. At the same time, an oil temperature sensor and an air filter are installed on the upper cover plate.
● Motor pump unit
The pump station motor adopts the three-phase asynchronous motor from Shanghai Shangli, the overflow valve from Beijing Huade, and the internal gear pump from Hangzhou Chengjie. The oil pump and the motor form a motor pump unit with a bell housing and an elastic plum coupling. It is connected to the oil suction filter (with a stop valve) of the oil tank through a hose. This arrangement can isolate the vibration of the motor pump unit from the oil tank assembly, reducing the vibration to the minimum state and having low noise. The motor pump unit is fixed on the base welded by channel steel through shock-absorbing pads and is equipped with an oil collection pan.
III. Main technical indicators:
1. Torque: ±10KN.m (static);
2. Torque accuracy: ±1%F.S (static);
3. Rotation angle: ±45°;
4. Rotation angle accuracy: ±0.1° (static);
5. Swing frequency range: 0.05 - 6Hz;
6. Control mode: Torque, rotation angle;
7. Loading waveform: Sine wave;
8. Testable specimen length: 300 - 1500mm
IV. Quality assurance
1. The warranty period is one year after the final acceptance. If there are quality problems with the equipment during the warranty period, the supplier shall replace and repair it free of charge. If the quality problems are caused by the buyer's violation of operating rules, the buyer shall pay the supplier the cost of maintenance; the supplier shall provide permanent spare parts supply for the equipment.
2. The supplier shall respond within 1 hour after receiving the notice and provide a maintenance solution within 2 hours; solve general faults within 6 hours.
If necessary, the supplier shall arrive at the site within 24 - 48 hours and provide maintenance or replacement of defective goods or parts, and the cost shall be borne by the supplier.
3. Shanghai Anchang Machinery & Equipment Co., Ltd. has dedicated after-sales service personnel who actively follow up and provide dynamic services. According to the archives, they will pay irregular visits to check the operation of the equipment, discover problems in time and eliminate potential hazards;
4. Provide free software upgrades and train or instruct the operators
